Eclipse 7 Pro “Mode2” Control and Switch Assignments
ECLIPSE 7 PRO MODE 2 TYPE
SWITCH CONFIGURATION LIST FRONT
Elev. D/R
Rudder D/R
Flight Mode Switch
ACRD Elevator to Flap Mix
Condition Mix 1 Trim, D/R, EXP
Nomal Trim, D/R, EXP
Condition Mix 2 Trim, D/R, EXP
Landing Mix
Glider Condition Mix 1
4-Wing Speed Flap Trim Offset 1
Elevator to Flap Mix
Normal Trim, D/R, EXP
Condition Mix 2
4-Wing Speed Flap Trim Offset 2
HELI Rudder to Throttle Mix
Nomal Trim, D/R, EXP, Gyro Gain
ldle UP 1 Trim, D/R, EXP, Throttle Curve
ldle UP 2 Trim, D/R, EXP, Pitch Curve
ACRD Elevator D/R
Elevator D/R
Motor ON/OFF CH3
Elevator D/R
ACRD/HELI Throttle Trim
Glider Flap Trim
Select to Voltage
Trim Data
Model Name
Acro/HELI Engine Low Position Hold
Glider X
Acro/HELI Engine Cut off
Glider X
Rudder trim
ACRD P-Mix 4 ON/OFF
Aileron to Rudder Mix On/OFF
Rudder D/R
Glider P-Mix 4 ON/OFF
Aileron to Rudder Mix
Rudder D/R
HELI P-Mix 2 ON/OFF
Rudder D/R

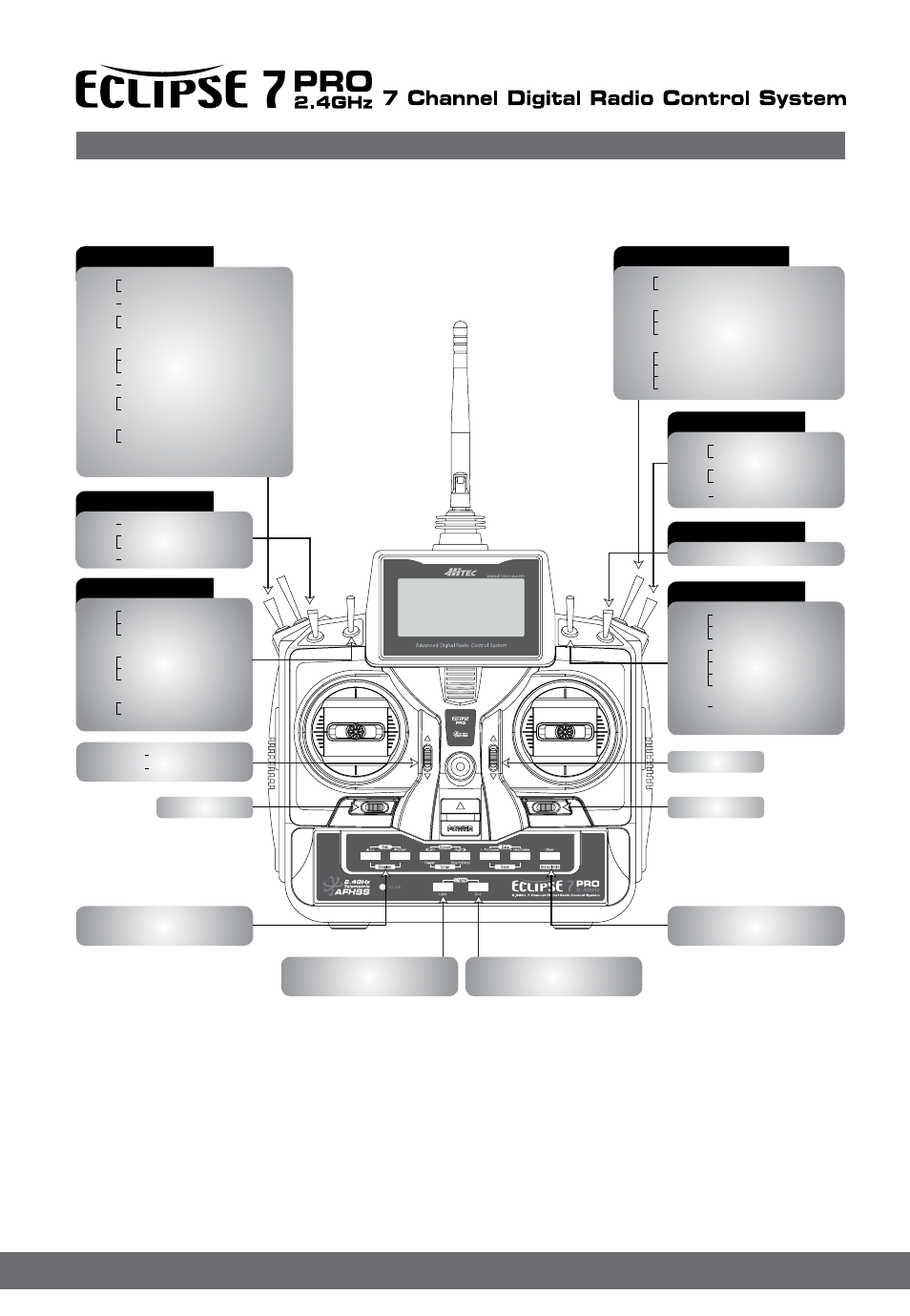

This figure shows the assignments for a Mode 2 system as supplied by the factory in North America.
Note that some of the functions will not operate until activated in the mixing menus.
Integral Timer Data Reset
Aileron Trim
Elevator Trim
CH7 Switch
ACRD P-MIX 1 ON/OFF
P-MIX 2 ON/OFF
Glider P-MIX 1 ON/OFF
P-MIX 2 ON/OFF
Flap to Aileron Mix
Flap to Elevator Mix
HELI CH 7 Control
(Heading lock ON/OFF)
Elev. D/R
ACRD/Glider/HELI Aileron D/R
Flight Condition Switch
ACRD P-Mix 5 ON/OFF
Condition 3 Trim, D/R, Exp (Ail, Elev, rudd)
Glider P-Mix 5 ON/OFF
Condition 3 Trim, D/R, Exp (Ail, Elev, rudd)
4-wing Aileron to Flap Coupling Mix
HELI Throttle Hold
Condition 3 Trim, D/R, Exp (Ail, Elev, rudd)
Gyro Gain
Hold Pitch Curvo
Gear
ACRD Landing Gear ON/OFF
P-Mix3 ON/OFF
Glider P-Mix3 ON/OFF
Crow Mix ON/OFF
HELI P-Mix 1
