The following section describes how to use the glider-specific menu functions
(model type GLID). Descriptions of the other functions are contained in the
aircraft (ACRO) section. There are two different glider modes in the Eclipse 7Pro
system. You set them up in the Model Setup menus (see page ??). 4WNG
refers to a glider with four wing servos. 2WNG refers to a model with two
wing servos for flaperons, but this setup also applies to models with an
additional flap or spoiler servo in CH6

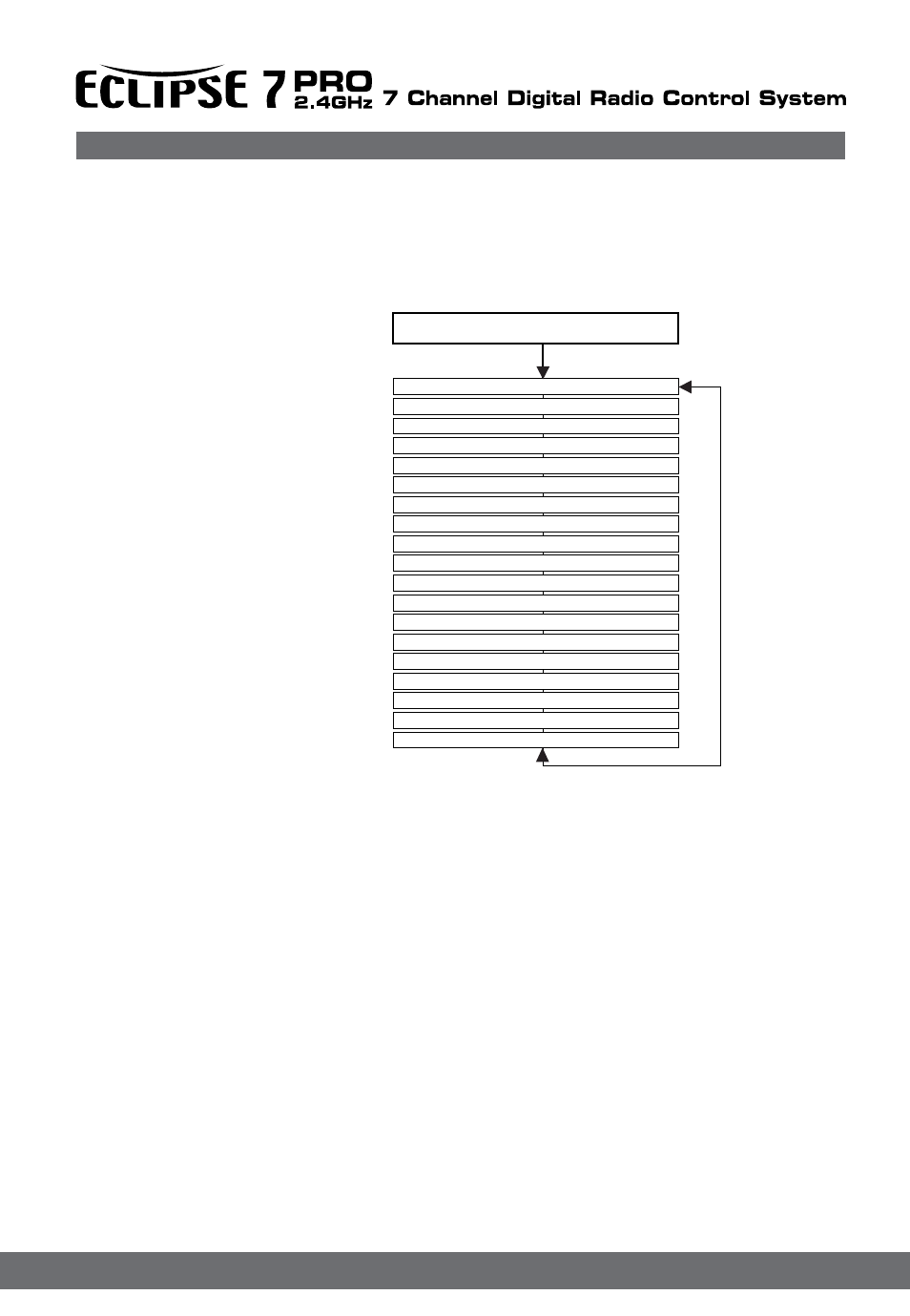

Glider Functions Map
Glider Setup Example
EPA End point adjust
D/R Dual Rates
EXP Exponential
FLT.C Flight Condition
S.TRM Subtrim
REV Servo Reverse
PMX1-5 Programmable Mixer
ADIF Aileron Differential
VTAL V-Tail
E->F Elevator Flap mixing
A->R Aileron Rudder Coupling
F->A Flap Aileron mixing
F->E Flap Elevator mixing
CROW Crow mixing (airbrakes)
AIL.T Aileron Dual Trim
S.TM1, 2 Speed Flap trim offsets 1, 2 (GLID4)
A->F Aileron Flap mixing (GLID4)
DFL.T Dual Flap Trim knob (GLID4)
MX.SS Mix Switch Select
Useful Control & Switch Information
GEAR switch Back = CROW Off
VR1 controls camber (flap motions) Flt. Condition switch Back= A->F Off
VR2 controls receiver CH7 and sets DFL.T Flt. Mode switch Back (“speed”)= E->F On, S.TM1
CH7 switch Forward = F->A On, F->E On Flt. Mode switch Forward (“launch”) = S.TM2 On
Glider(GLID) Menu Function
End Point Adjust ( EPA )
Dual Rates ( D/R )
Exponential Settings ( EXP )
Flight Condition Select ( FLT.C )
Subtrim ( S.TRM )
Servo Reverse ( REV )
Programmable Mixer #1 - #5 ( PMX- )
Aileron Differential ( ADIF )
V-tail mix ( VTAL )
Elevator Flap mix ( E->F )
Aileron Rudder Coupling ( A->R)
Flap Aileron mix ( F->A )
Flap Elevator mix ( F->E )
Crow mix ( CROW )
Aileron Dual Trim ( AIL.T )
Speed Flap trim offsets 1, 2 ( S.TM- )
Aileron Flap mix ( A->F )
Dual Flap Trim knob ( DFL.T )
Mix Switch Select ( MX.SS )
4
4
4
Voltage / Timer Display
Normal Display Mode
4 = 4WING only
Press both
Edit/Display key
