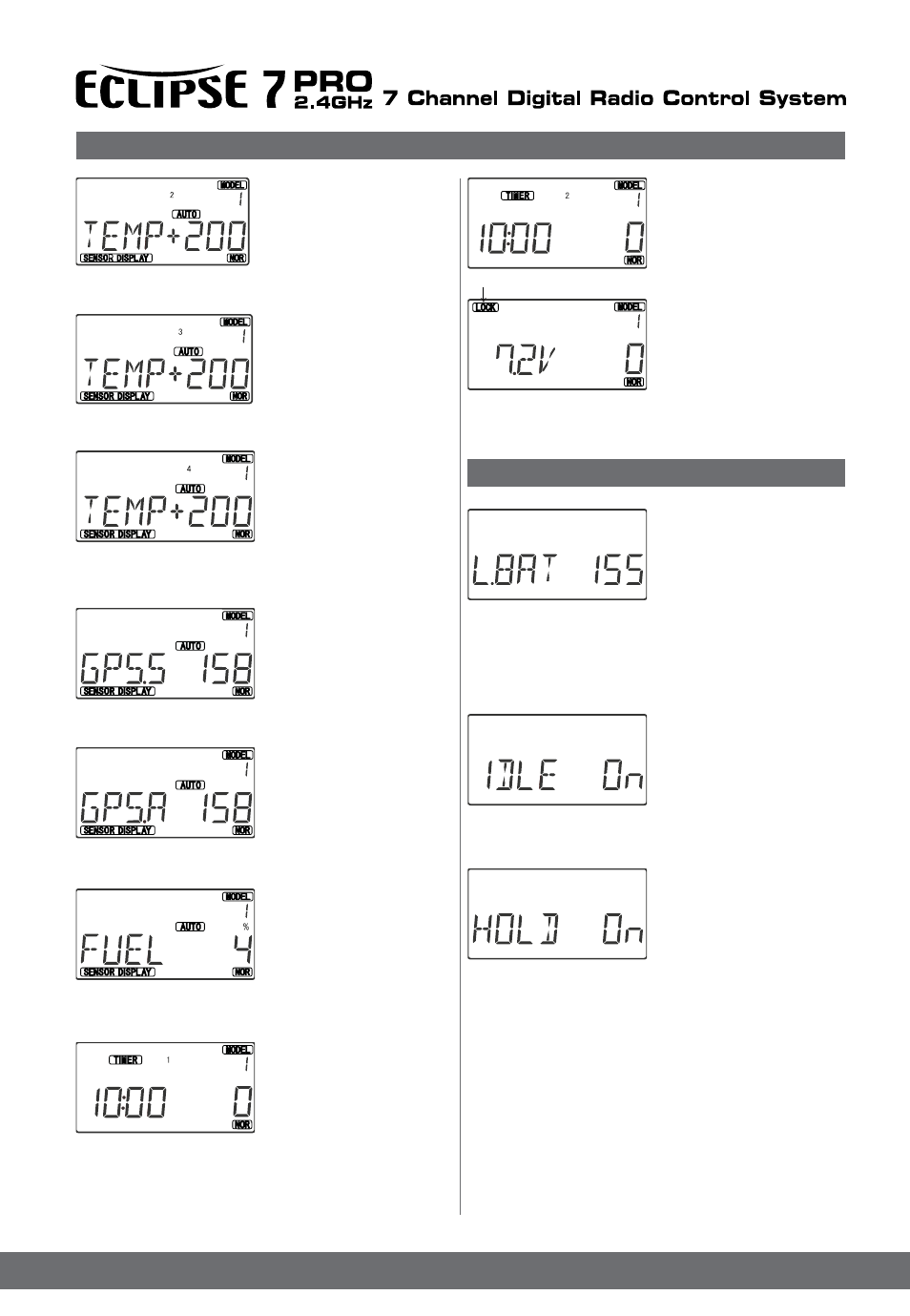

Warning Displays
As you see to left diagram, this
information coming from HTS-
SS BLUE ,HTS-SS temperature
sensor second slot.
You can see small numeral 2 in
the display This is showing
second TEMP sensor information.
As you see to left diagram, this
information coming from HTS-
SS BLUE ,HTS-SS temperature
sensor third slot.
You can see small numeral 3 in
the display This is showing third
TEMP sensor information.
As you see to left diagram, this
information coming from HTS-
SS BLUE ,HTS-SS temperature
sensor fourth slot.
You can see small numeral 4 in
the display
This is showing fourth TEMP sensor information.
GPS SPEED
You can check the Speed of
your aircraft using HTS-SS
BLUE, HTS-SS with HTS-GPS
. GPS Speed value appears in
lower right in the display . GPS
Speed range is 0 to 999 Km/h.
GPS ALTITUDE
You can check the Altitude of
your aircraft using HTS-SS
BLUE, HTS-SS with HTS-GPS.
GPS Altitude value appears in
lower right in the display. GPS
Altitude range is 0 to 999m
FUEL
you can check the fuel amount
of your model using HTS-SS
with HTS-FUEL, fuel level can
be checked by appears numeral
0 to 4.(this function only can use
HTS-SS. HTS-SS BLUE cannot
provide this function)
DUAL TIMER
Pressing the two Timer button at
the same time that
gives the Timer display .you can
start the timer pressing Start
button . Stop and Reset also
same function as like key name.
You can find out first TIMER of the DUAL TIMER that seeing
small numeral 1 in the display . you may move to second
TIMER pressing UP or Down button.
Telemetry system Information
left diagram shows second
TIMER of the DUAL TIMER
Pressing the Lock buttonlocks
the throttle servo and holds it
where you last commanded it.
This may be used as a safety
feature when you are carrying
the model and transmitter to
ensure you don’t accidentally give throttle. It is shown by the
LOCK indicator
The LOW BATTERY warning is
displayed when the transmitter
battery voltage drops below 6.6
volts, and a beeper sounds.
The operating time is still shown
on the right. If you reset this
each time you charge the system, you will have a good idea of
how long you can safely operate.
WHEN THE BEEPER SOUNDS, LAND YOUR MODEL AS
SOON AS POSSIBLE BEFORE LOSS OF CONTROL DUE
TO A DEAD TRANSMITTER BATTERY
The IDLE ON warning is
displayed when the transmitter
is powered up with the Idle-up
switch on in the helicopter mode
only.
You can turn this off by moving
the Flt. Mode switch back. For your safety, the transmitter will
not broadcast until this alarm is ended.
The HOLD ON warning is
displayed when the transmitter
is powered up with
the Throttle hold switch on
in the helicopter mode only
when throttle hold values are
programed. You can turn this off by moving the Flt. Cond.
Switch back. For your safety, the transmitter will not broadcast
until this alarm is ended.
LOCK indicator
