Eclipse 7 Pro Glider Controls and Switch Assignments

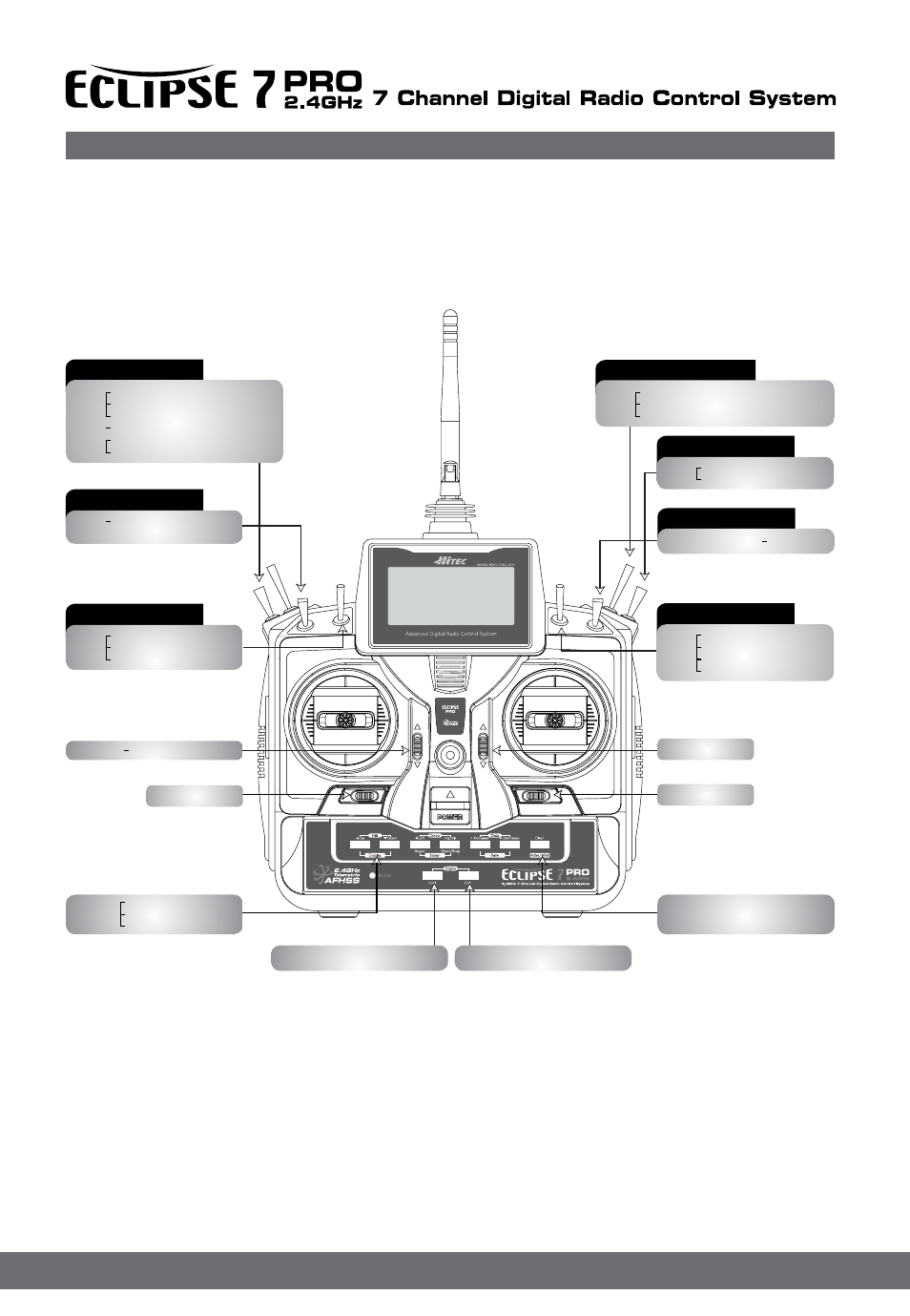

This figure shows the assignments for a Mode 2 system as supplied by the factory for the North American version. Note that

some of the functions will not operate until activated in the mixing menus.

Elev. D/R

Rudder D/R

Select to

Voltage

Trim Data

Model Name

Rudder trim

Glider

Flight Mode Switch

Glider

Elevator to Flap Mix 1

4-Wing Speed flap Trim Offset1

elevator to Flap Mix

Normal Trim, D/R, EXP

Condition Mix 2

4-Wing Speed Flap Trim Offset 2

Elevator D/R

Motor ON/OFF CH3

P-MIX4 ON/OFF

Aileron to Runner Mix

Rudder D/R

Flap Trim

Glider

Integral Timer Data Reset

Aileron Trim

Elevator Trim

CH7 Switch

Glider

P-MIX 1 ON/OFF

P-MIX 2 ON/OFF

Flap to Aileron Mix

Flap to Elevator Mix

Ail. D/R

Aileron D/R

ACRO/Glider/HELI

Flight Condition Switch

Glider

P-MIX 5 ON/OFF

Condition 3 Trim,D/R, EXP(AIL, Elev, Rudd)

4-WING aILERON TO Flap Coupling Mix

Gear

Glider

P-Mix 3 ON/OFF

Crow Mix ON/OFF
