Chapter 4 Display and Operation|ASDA-B Series
4-34
Revision January 2009
4.2.7 DI Diagnosis Operation

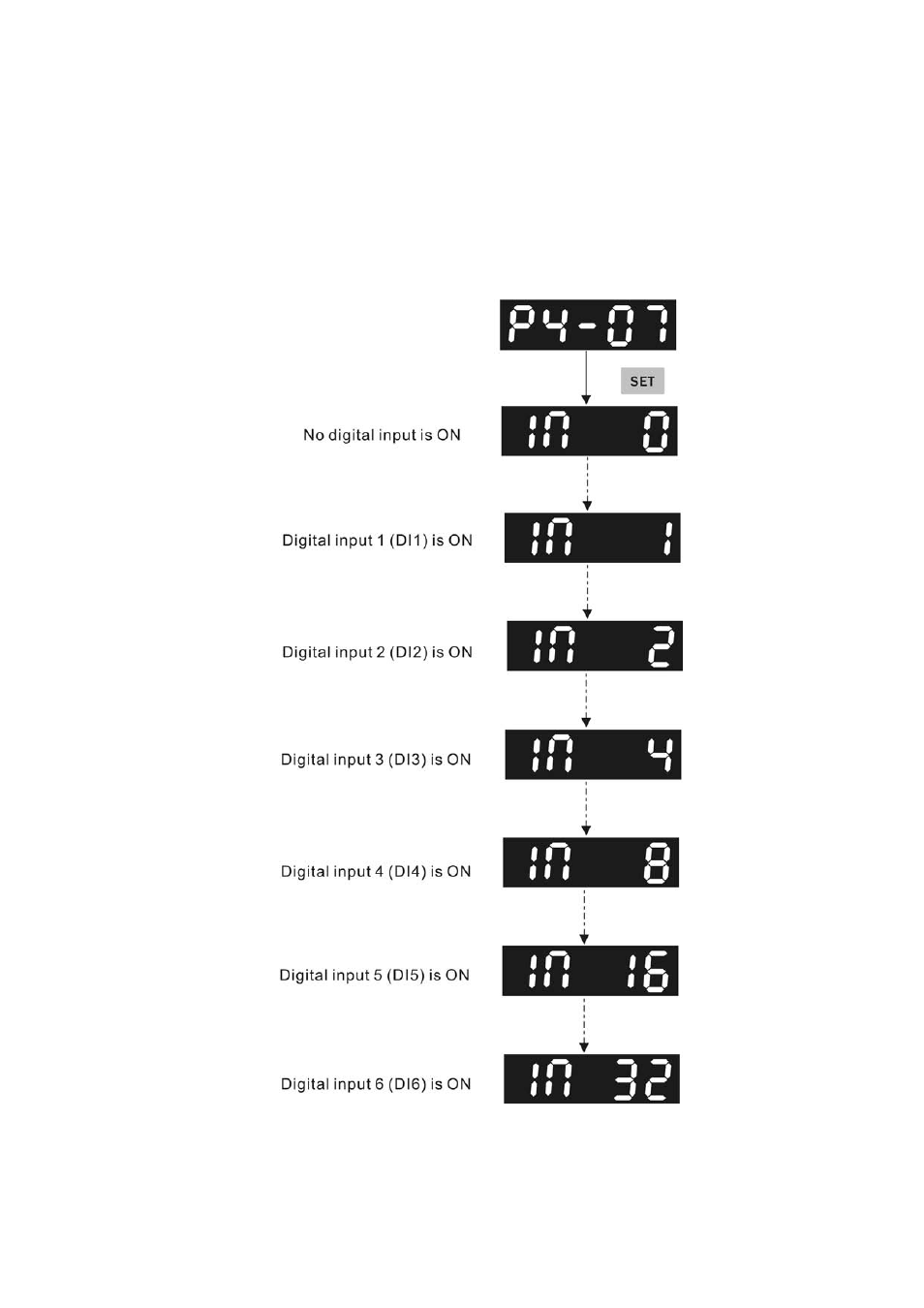

Following the setting method in Figure 4.18 can perform DI diagnosis operation (parameter P4-07).
According to the ON and OFF status of the digital inputs DI1 to DI6, the corresponding status will
display on the servo drive LED display. When the segment lit and display on the screen, it means that
the corresponding digital input signal is ON.
Figure 4.18
