Delta Electronics ASDA-B Series User Manual
Page 202
Chapter 7 Servo Parameters|ASDA-B Series
Revision January, 2009
7-49

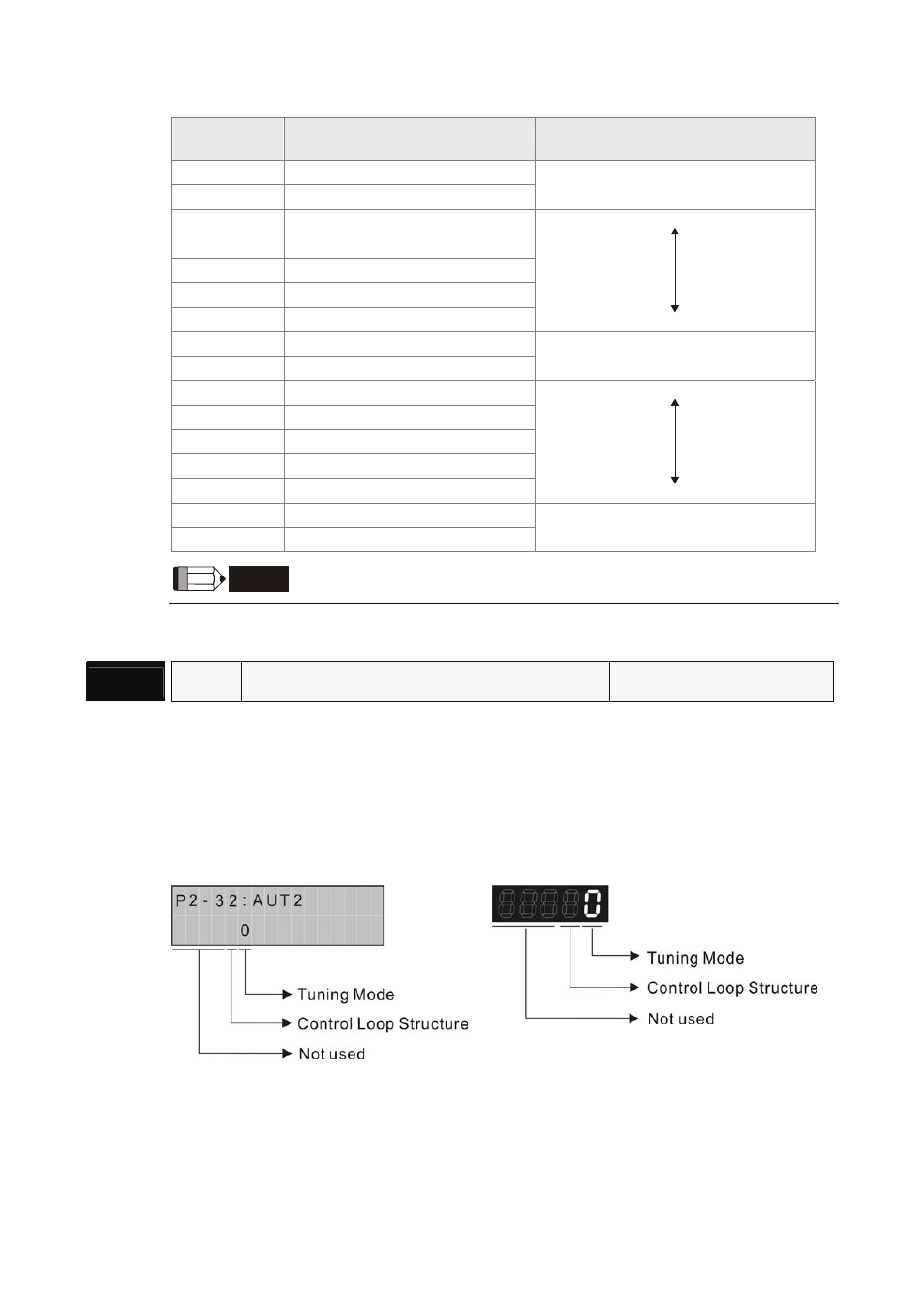

When the setting value is higher, the stiffness and responsiveness is higher.
Setting Value
of P2-31
Speed Loop Responsiveness (Hz)
Stiffness and Responsiveness
0
10
Low Stiffness
1 15 Low
Responsiveness
2 20
3 25
4 30
5 35
6 45
7 55
Medium
Stiffness
8 65 Medium
Responsiveness
9 80
A 100
B 120
C 145
D 170
E 205
High
Stiffness
F 250 High
Responsiveness
NOTE
1) This parameter is activated by P2-32.
P2 - 32▲
AUT2
Tuning Mode Selection
Communication Addr.: 0220H
Default: 0
Related Section:
Applicable Control Mode: P/S/T
Section 6.3.6, P2-31
Unit: N/A
Range: 0 ~ 12
Settings:
ASD-PU-01A ASD-PU-01B
• Tuning Mode Settings:
0: Manual mode
1: AutoMode (Continuous adjustment)
The ratio of Load Inertia to servo motor inertia can be continuously adjusted.
The level of stiffness and responsiveness are adjusted by parameter P2-31.
