Chapter 6 Control Modes of Operation|ASDA-B Series

Revision January, 2009

6-23

6.3.7 Resonance Suppression

The resonance of mechanical system may occur due to excessive system stiffness or frequency

response. However, this kind of resonance condition can be improved, suppressed, even can be

eliminated by using low-pass filter (parameter P2-25) and notch filter (parameter P2-23, P2-24) without

changing control parameter.

Low-pass

Filter P1-06

Notch Filter

Torque Control

Block Diagram

P1-40

Control Mode

Selection P1-01

Speed Control

Block Diagram

P2-23, P2-24

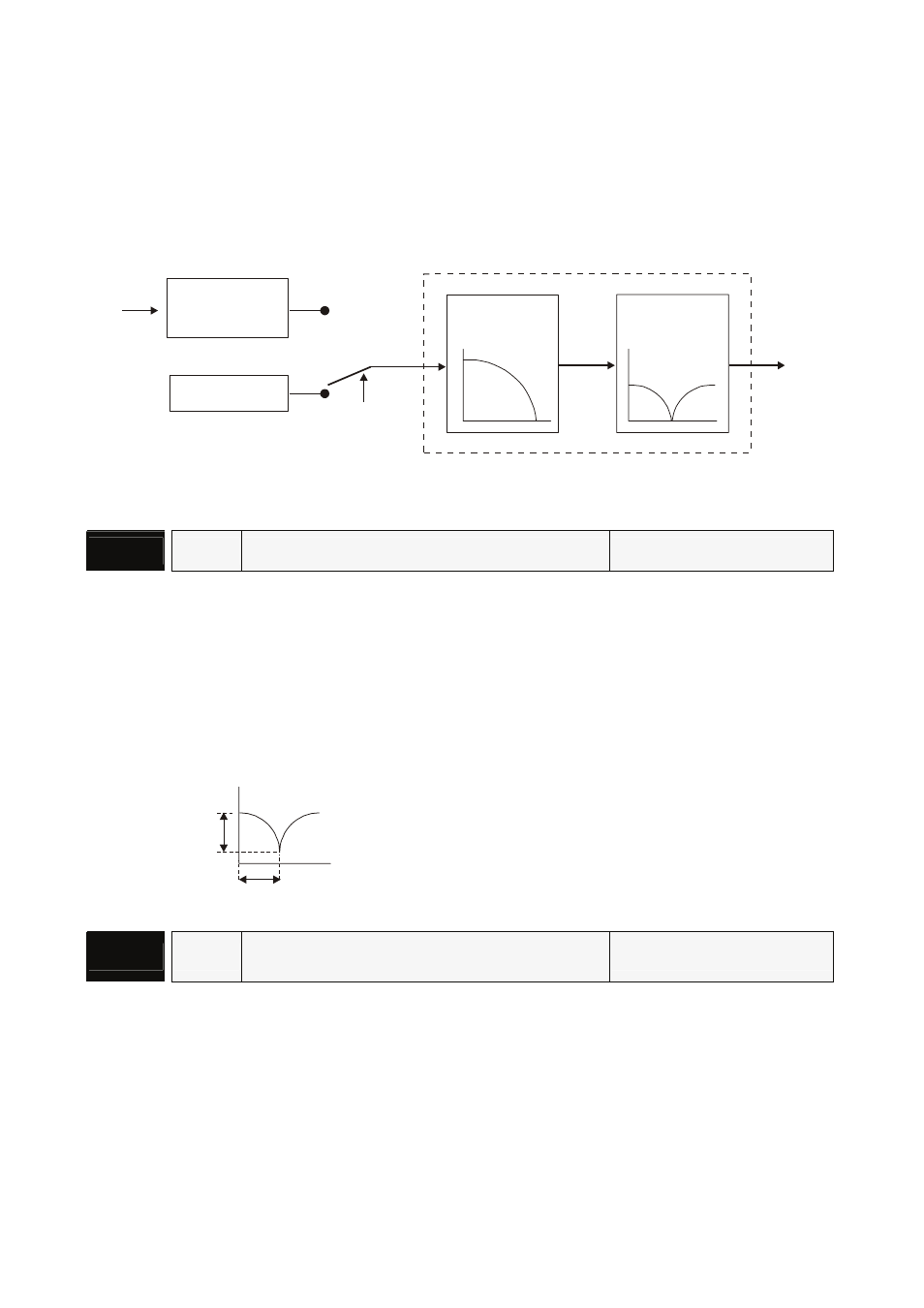

Resonance Suppression Block Diagram

Relevant parameters:

P2 - 23

NCF

Notch Filter (Resonance Suppression)

Communication Addr.: 0217H

Default: 1000

Related Section:

Applicable Control Mode: P/S/T

Section 6.3.7, P2-24

Unit: Hz

Range: 50 ~ 1000

Settings:

This parameter is used to set resonance frequency of mechanical system. It can be used to
suppress the resonance of mechanical system. If P2-24 is set to 0, this parameter is disabled.

P2-24

P2-23

Gain (db)

Frequency (Hz)

P2 - 24

DPH

Notch Filter Attenuation Rate
(Resonance Suppression)

Communication Addr.: 0218H

Default: 0

Related Section:

Applicable Control Mode: P/S/T

Section 6.3.7, P2-23

Unit: dB

Unit: Hz

Range: 0 ~ 32

Settings:

0: Disabled
