Chapter 11 Specifications|ASDA-B Series
Revision January 2009 11-17

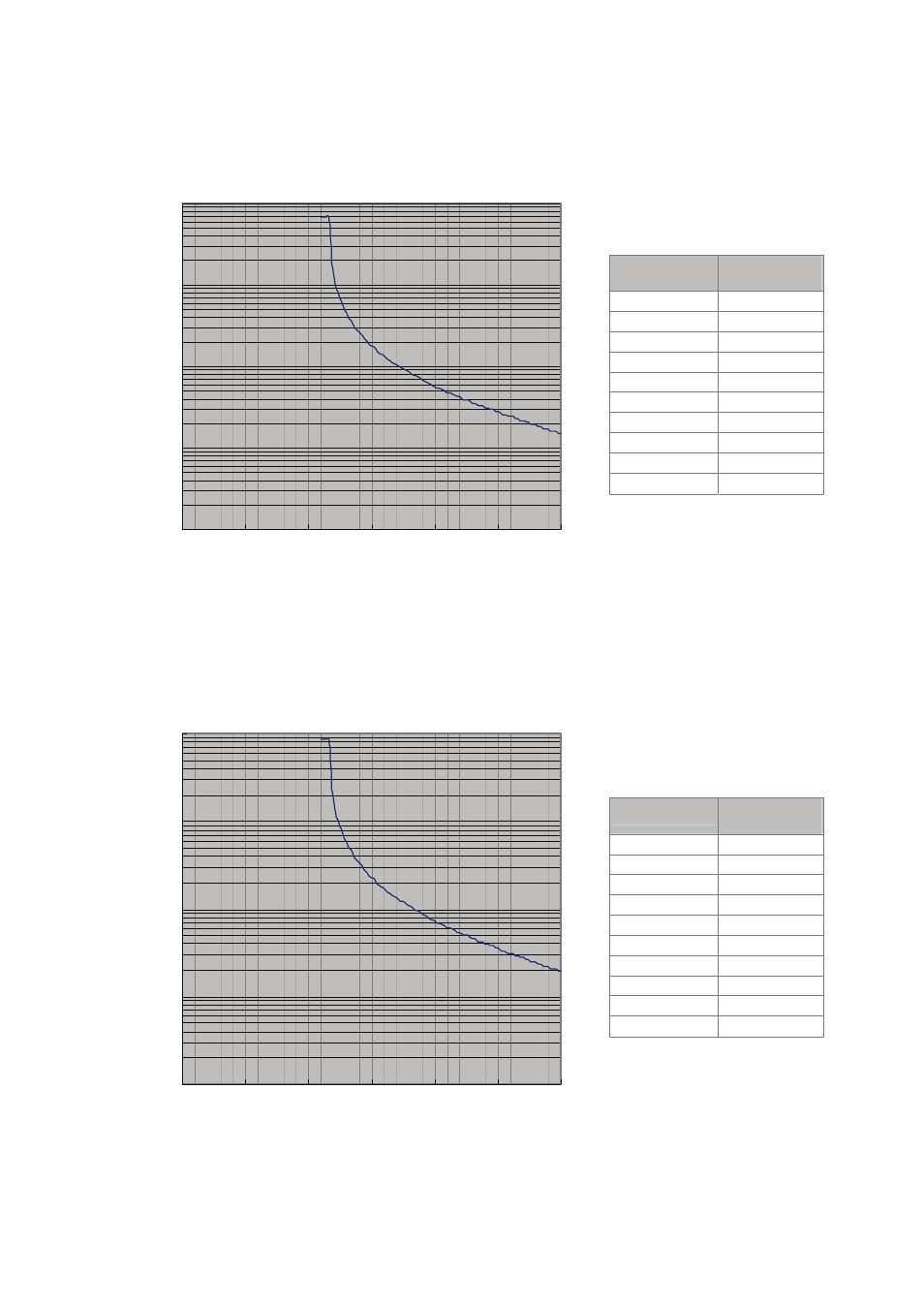

„ Chart of load and operating time (ECMAC31310 S)
0.1
1
10
100
1000
0 50 100 150 200 250 300
Load (% rated torque)
O
pe
rat
in
g T
im
e (s
ec
on
ds
)
Load
Operating
Time
120% 130.0s
140% 25.7s
160% 13.3s
180% 8.4s
200% 5.6s
220% 4.2s
240% 3.1s
260% 2.4s
280% 1.9s
300% 1.5s
„ Chart of load and operating time (ECMAC31315 S)
0.1
1
10
100
1000
0 50 100 150 200 250 300
Load (% rated torque)
O
pera
tin
g T
im
e (s
ec
onds
)
Load
Operating
Time
120% 167.2s
140% 33.1s
160% 17.1s
180% 10.8s
200% 7.2s
220% 5.4s
240% 4.0s
260% 3.1s
280% 2.5s
300% 1.9s
