Chapter 11 Specifications|ASDA-B Series
11-20
Revision January 2009

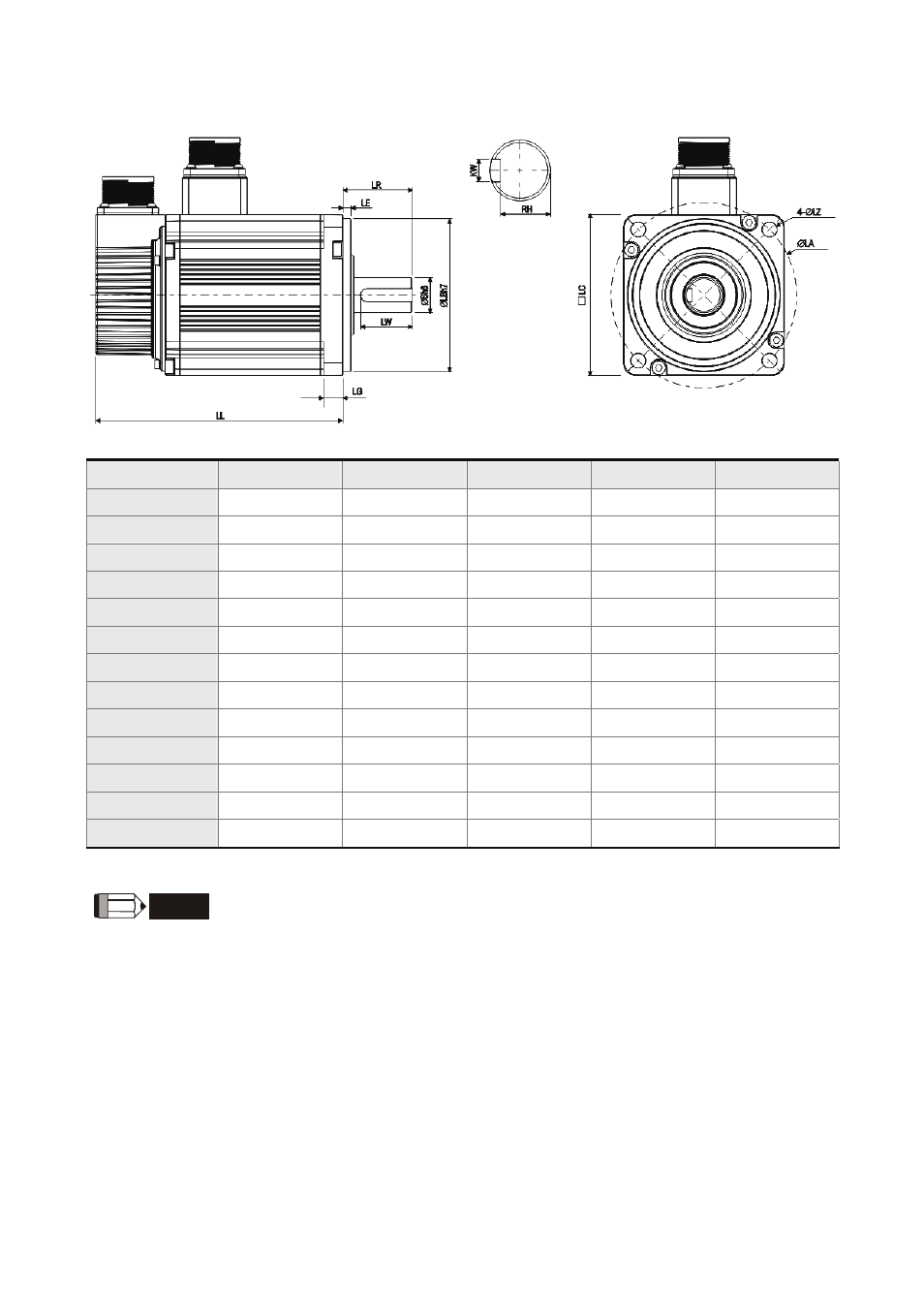

Motor Frame Size: 100mm Models
Model
G31303 S
E31305 S
G31306 S
G31309 S
C31010 S
LC 130 130 130 130 100
LZ 9 9 9 9 9
LA 145 145 145 145 115
S 22 22 22 22 22
LB 110 110 110 110 95
LL (without brake)
147.5 147.5 147.5 163.5 153.5
LL (with brake)
183.5
183.5
183.5
198
192.5
LR 55 55 55 55 45
LE 6 6 6 6 5
LG 11.5 11.5 11.5 11.5 12
LW 36 36 36 36 32
RH 18 18 18 18 18
kW 8 8 8 8 8
NOTE
1) Dimensions are in millimeters. Actual measured values are in metric units.
Please use metric for precise measurements.
2) The boxes ( ) in the model names are for optional configurations. (Please
refer to Section 1.2 for model explanation)
