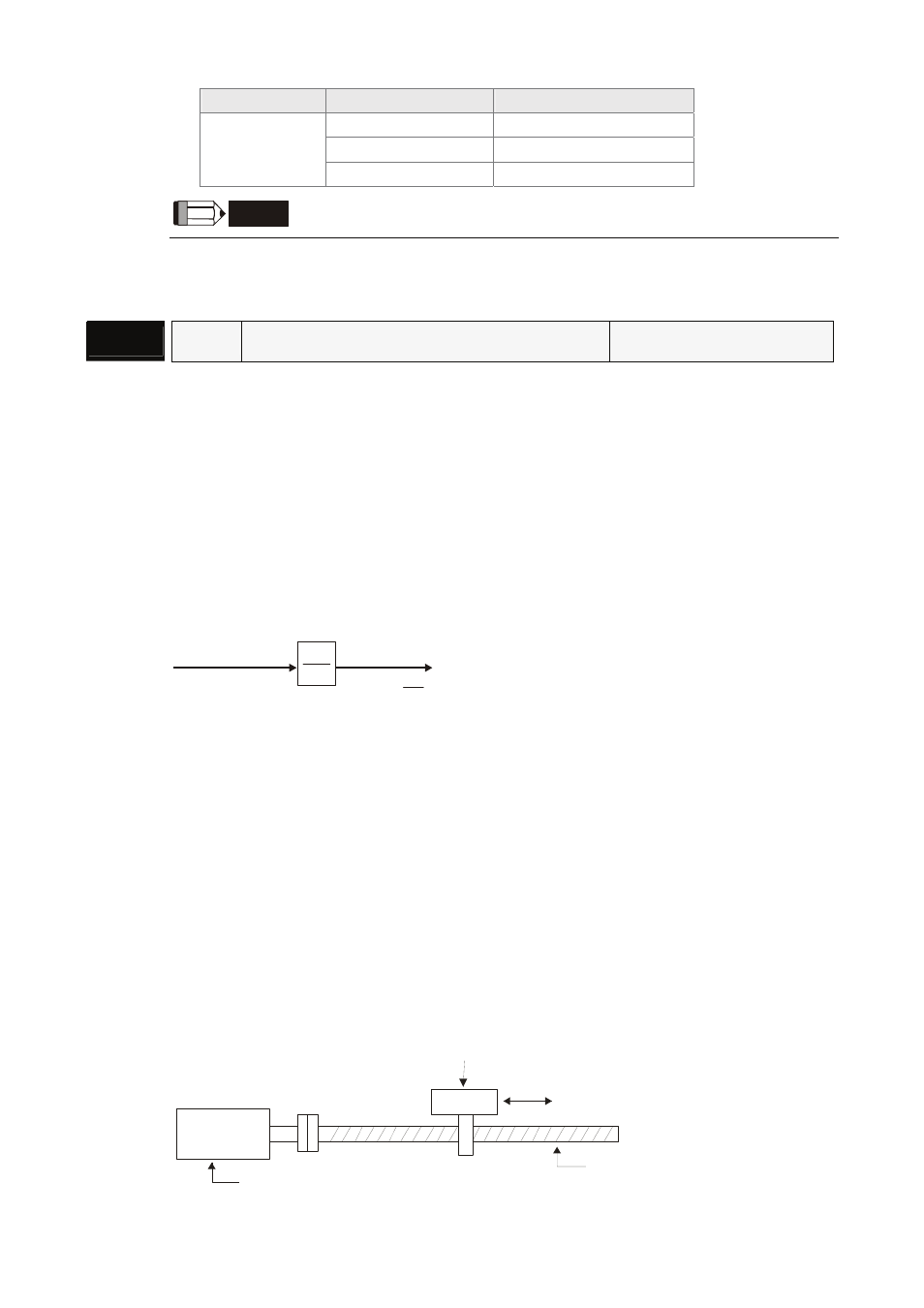

background image

Chapter 6 Control Modes of Operation|ASDA-B Series

Revision January, 2009

6-5

DI Name

DI Status

Selected Electronic Gear

Not select (Note 1)

P1-44, P1-45

0 P1-44,

P1-45

GNUM0

1 P1-44,

P1-45

NOTE

1) DI signal can be selected by parameter P2-10 to P2-15 and Table 7.A. If uses only need to

use one group of electronic gear, it allows users not to select GNUM0.

P1 - 45

GR2

Electronic Gear Ratio (Denominator)

Communication Addr.: 012DH

Default: 1

Related Section:

Applicable Control Mode: P

Section 6.2.4, P1-15, P1-44

Unit: pulse

DI GNUM0(11) in Table 7.A

Range: 1 ~ 32767

Settings:

Please set electronic gear ratio when the servo drive is Off (Servo Off). As the wrong setting can
cause motor to run chaotically (out of control) and it may lead to personnel injury, therefore,
ensure to observe the following rule when setting P1-44, P1-45.

The electronic gear ratio settings:

f1

f2 = f1 x

N

M

N

M

Pulse input

Position

command

The electronic gear ratio setting range must be within: 1/50

In terms of the servo drive which the firmware version is V1.018 or above, the electronic gear
ratio can be set when the servo drive is On (Servo On).

The electronic gear function provides easy travel distance ratio change. However, the over high

electronic gear ratio will command the motor to move not smoothly. At this time, the users can use low-

pass filter parameter to improve this kind of situation. For example, assume that the electronic gear ratio

is equal to 1 and the encoder pulse per revolution is 10000ppr, if the electronic gear ratio is changed to

0.5, then the motor will rotate one pulse when the command from external controller is two pulses.

For example, after the proper electronic gear ratio is set, the reference travel distance is 1

μm/pulse, the

machinery will become easier to be used.

Travel distance per pulse = T

Motor ( encoder signal output: A/B, Z )
Encoder PPR: 2500 puls e

Ball Scr ew Pitch: 3mm

Wor kpiece (Table or Load)

f1: Pulse input f2: Position command

N: Numerator, the setting value of P1-15 or P1-44

M: Denominator, the setting value of P1-45
