Chapter 3 Connections and Wiring|ASDA-B Series

3-20

Revision January 2009

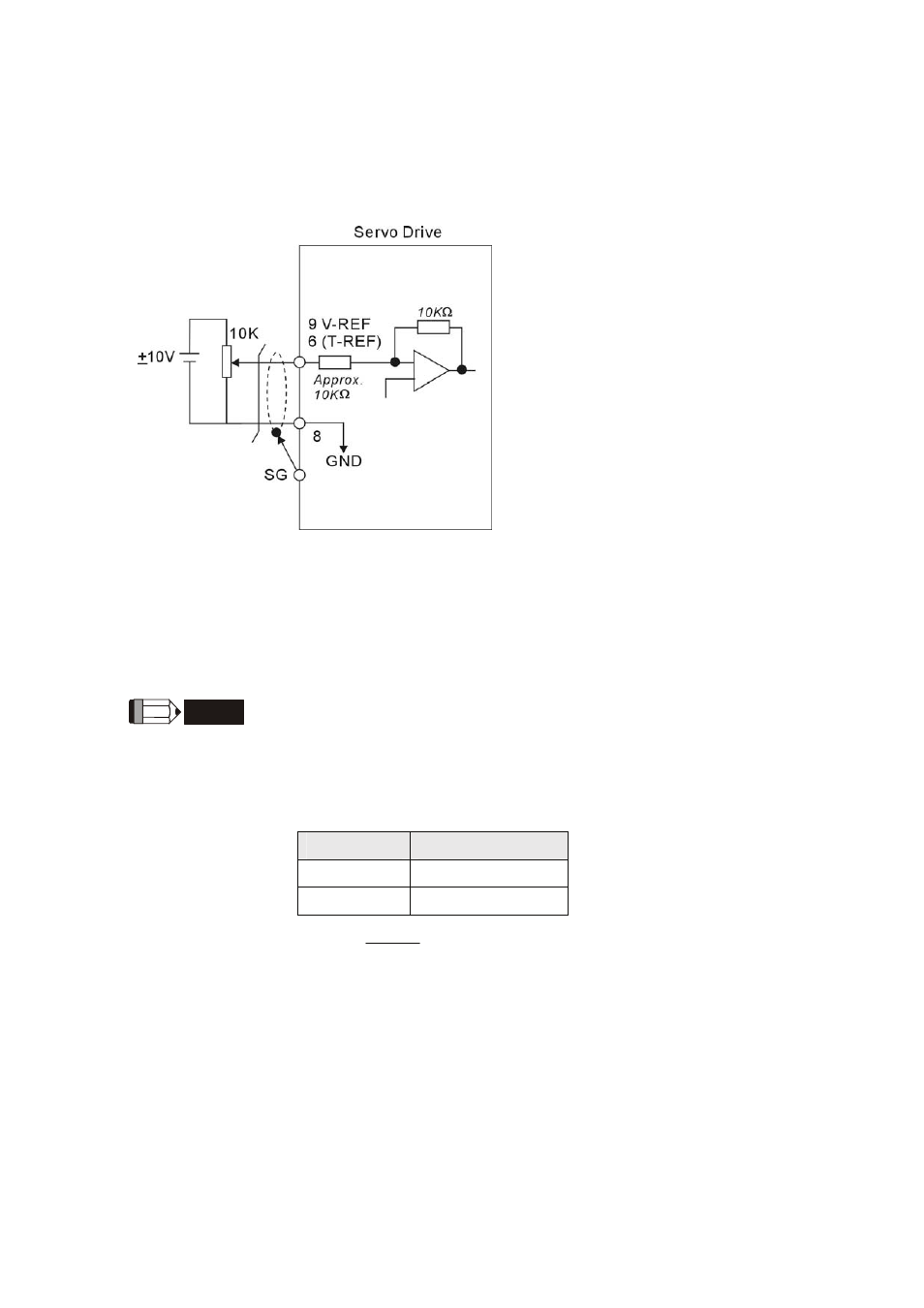

3.3.4 Wiring Diagrams of I/O Signals (CN1)

The valid voltage range of analog input command in speed and torque mode is -10V ~+10V.

The command value can be set via relevant parameters.

C1: Speed / Torque analog signal input

There are two kinds of pulse inputs, Line driver input and Open-collector input. Max. input pulse

frequency of Line driver input is 500kpps and max. input pulse frequency of Open-collector input is

200kpps.

NOTE

1) In order to protect the internal circuit, when using open collector input, please

ensure to connect one 1 ~ 2 KΩ current limit resistor before Pin 19(/SIGN) and
Pin 21(/PULSE) respectively (Please refer to the wiring diagram on next page).

2) For the specifications of connected current limit resistor, please refer to the

table below:

Vdc

Specifications

24V 1KΩ

12V 500Ω

Equation:

mA

R

20

100

2

Vdc

+
