Delta Electronics ASDA-B Series User Manual
Page 300
Chapter 12 Application Examples |ASDA-B Series
Revision January 2009
12-11
(Speed Control)
Operation
Ensure all wiring is connected correctly.
Restart the servo drive (Apply the power to servo drive again).
At this time, the SON LED (Servo On Indicator) will be lit to indicate that the servo drive is enabled, and
normal display will show on the LCD display. If ALRM LED (Alarm Output Indicator) is lit or any fault
message show on the LCD display, please refer to Chapter 10 “Troubleshooting” to remove the fault
code and fault message.
If there is no fault, press “Servo On” key on HMI screen and CMD LED will be red to indicate that the
servo drive is enabled (Servo On status).
Then, the users can use various functions on different HMI screens to control the servo drive and
execute the functions of servo drive.

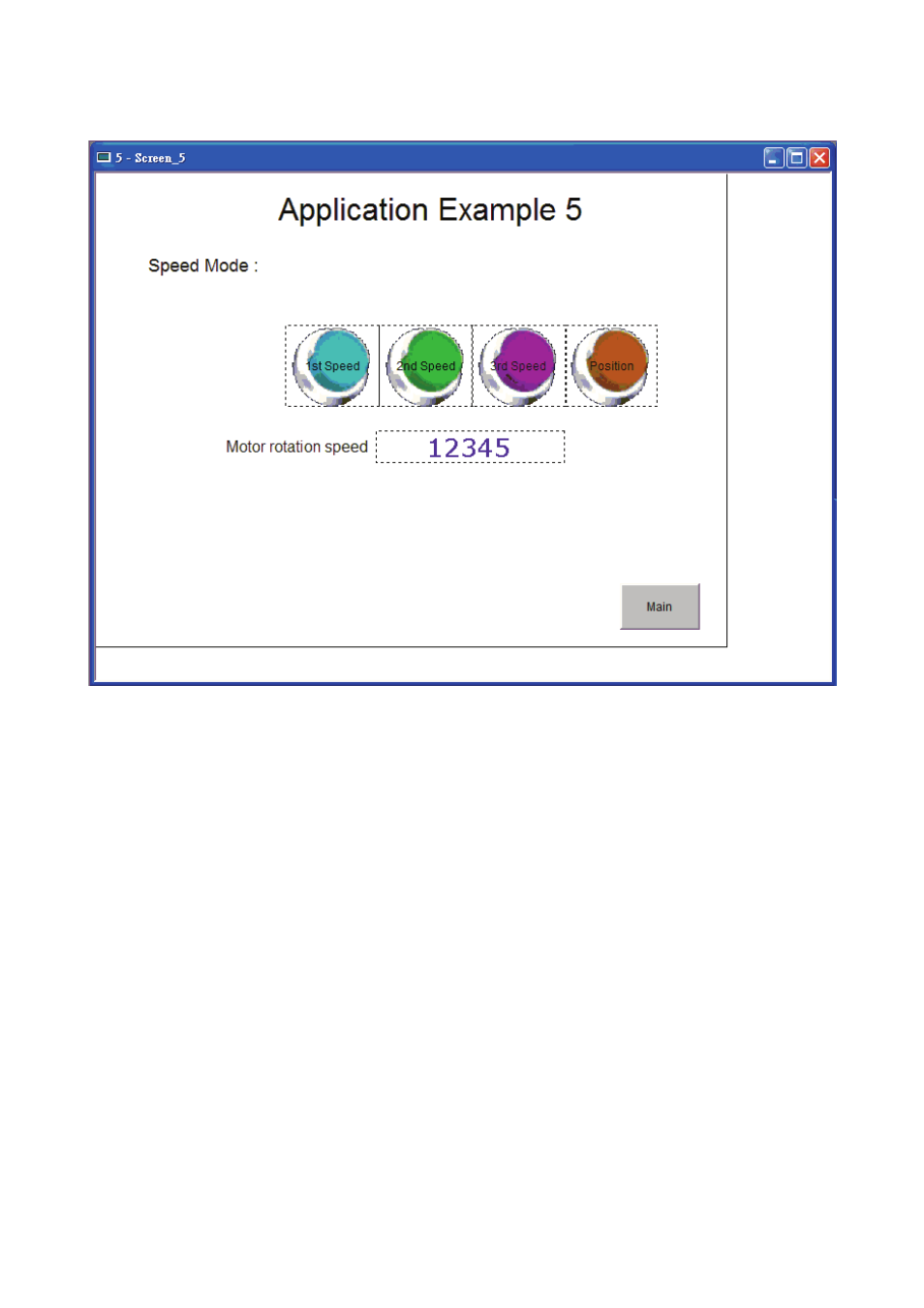

Before operating in speed mode, the users need to switch to speed control mode on the first HMI
screen.
