Delta Electronics ASDA-B Series - Manual (Page 281)

Chapter 11 Specifications|ASDA-B Series
11-14 Revision January 2009

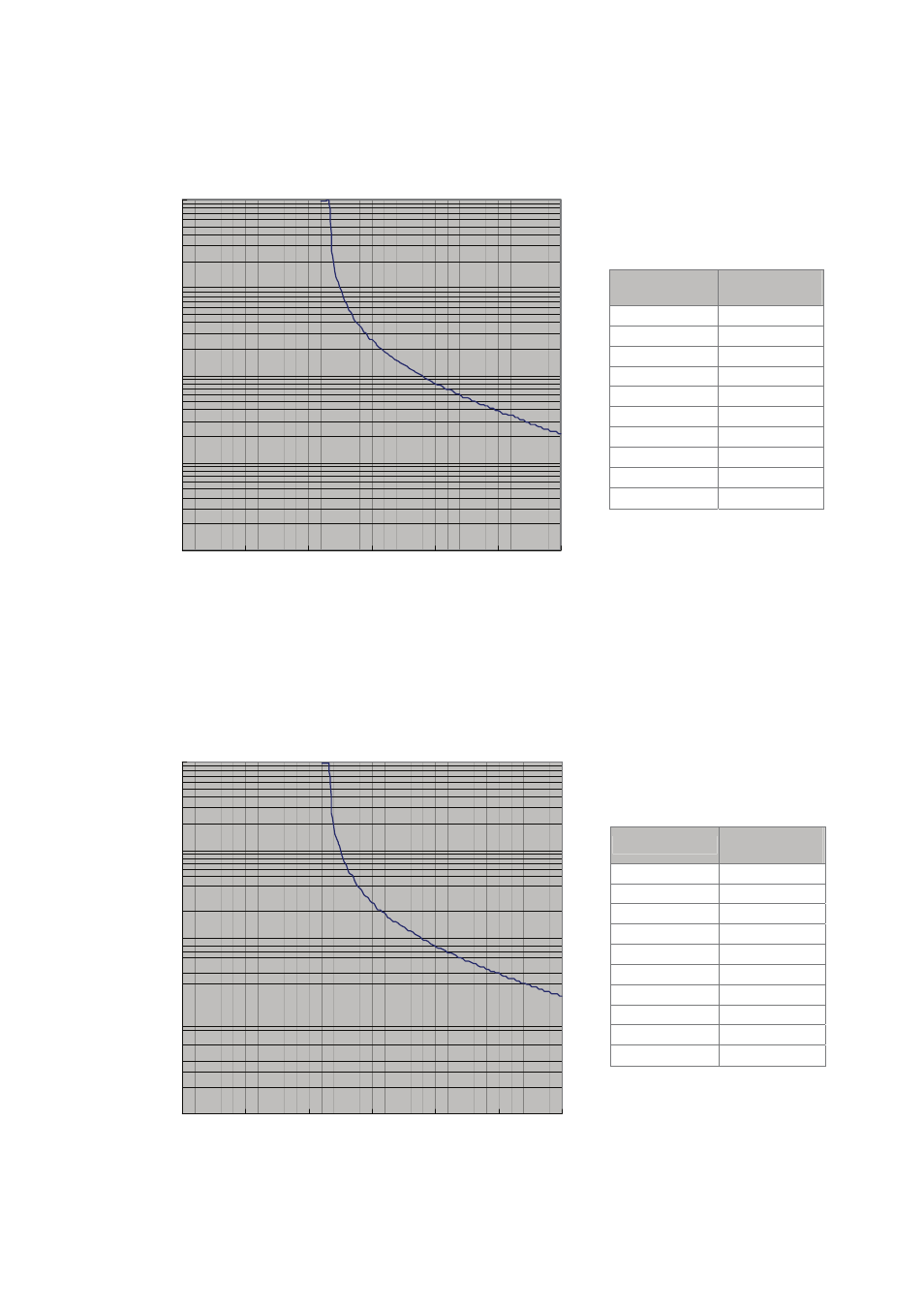

„ Chart of load and operating time (ECMAC31010 S)
0.1
1
10
100
1000
0 50 100 150 200 250 300
Load (% rated torque)
O
pe
rat
in
g T
im
e (
sec
on
ds
) Load
Operating
Time
120% 185.8s
140% 36.8s
160% 19.0s
180% 12.0s
200% 8.0s
220% 6.0s
240% 4.4s
260% 3.4s
280% 2.8s
300% 2.2s
„ Chart of load and operating time (ECMAC31020 S)
0.1
1
10
100
1000
0 50 100 150 200 250 300
Load (% rated torque)
O
pera
tin
g T
im
e (s
ec
on
ds
)
Load
Operating
Time
120% 185.8s
140% 36.8s
160% 19.0s
180% 12.0s
200% 8.0s
220% 6.0s
240% 4.4s
260% 3.4s
280% 2.8s
300% 2.2s
