Delta Electronics ASDA-B Series User Manual
Page 81
Chapter 4 Display and Operation|ASDA-B Series
4-26
Revision January 2009
Dynamic Auto-tuning Mode (
Dynamic Auto-tuning Function)
1. When the power is applied to the AC servo drive, the digital keypad will enter into the monitor
mode first.
2. In monitor mode, pressing FUNC key first. Then, pressing UP key two times or DOWN key five
times can switch to Dynamic Auto-tuning mode.
3. In Dynamic Auto-tuning mode, the users can input the value of motor rotation number, motor
rotation frequency, motor rotation time and responsiveness directly.
4. Dynamic Auto-tuning function only can be enabled in AutoMode (P2-32 is set to 1 or 2). If the
users want to use the Dynamic Auto-tuning function in Manual mode, please press MODE key
to skip the fourth step, which is the step used to specify the responsiveness.
5. In Fast Edit mode, pressing MODE key once can return to the previous display and finally exit
the Fast Edit mode (Please see Figure 4.13 below).

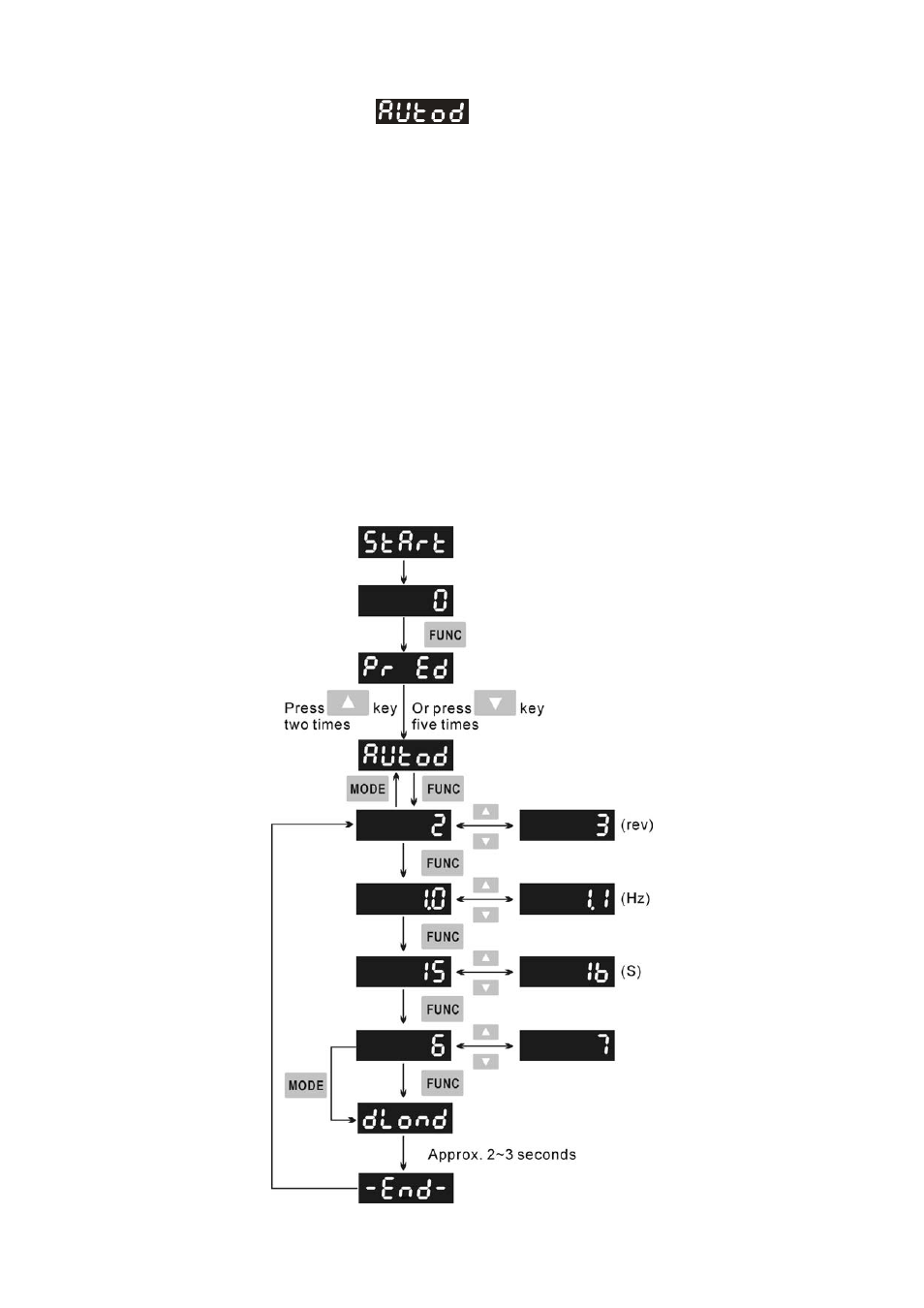

Figure 4.13
