EXFO FTB-7000 OTDR Series for FTB-500 User Manual
Page 242
Analyzing Bidirectional Traces
228
OTDR
Starting and Exiting the Bidirectional Analysis Utility
Starting and Exiting the Bidirectional Analysis
Utility
To start the Bidirectional Analysis utility:
1. From ToolBox, go to the Applications tab.
2. Press OTDR Bidirectional.

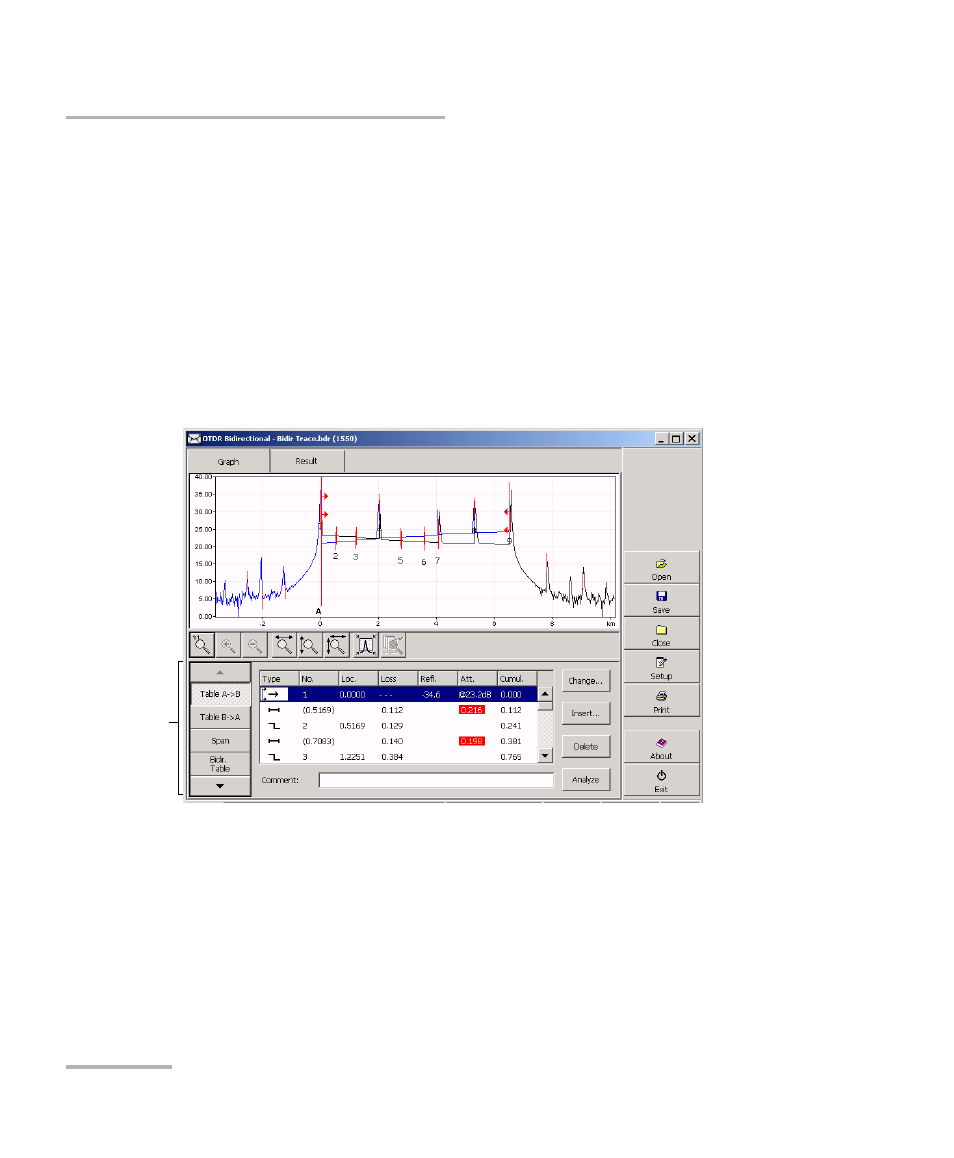

The main window is displayed. If you are using this utility for the first time,
or if you have closed the files before exiting last time you used the utility, no
trace will be automatically loaded.
Buttons to
access panes
