EXFO FTB-7000 OTDR Series for FTB-500 User Manual
Page 200
Analyzing the Results Manually
186
OTDR
Selecting the Attenuation and Loss Values that Will Be Displayed

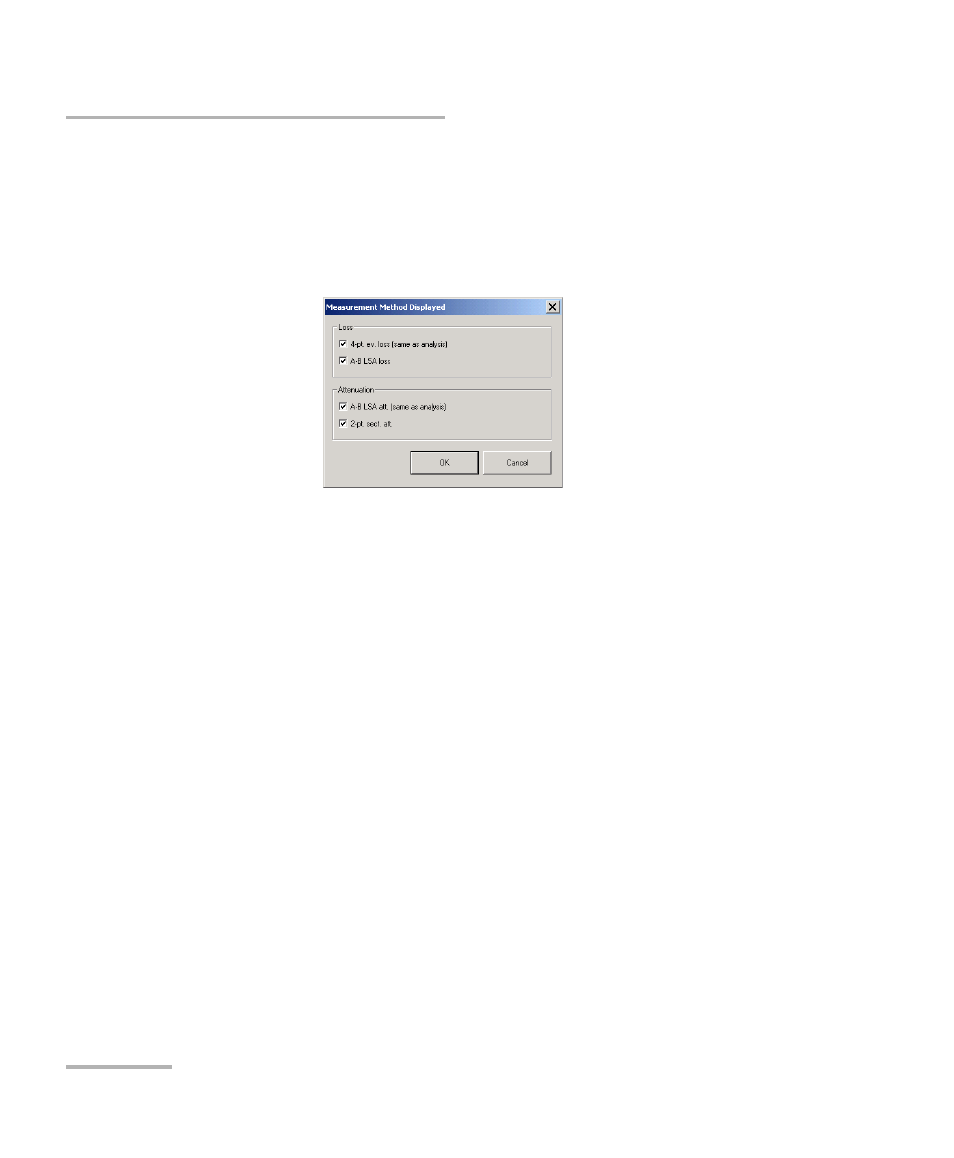

To select the attenuation and loss values that will be displayed:
1. From the button bar, press Setup then go to the General tab.
2. Press the Measurement Method button.
3. Select which values you want to see in the Measure tab.
4. Press OK to confirm your selection.
5. Press OK to return to the main window.
