Analyzing Traces and Events
152
OTDR
Modifying Space Between Traces on the Graph
Modifying Space Between Traces on the Graph
For easier viewing of the traces appearing on the graph, you can increase
or decrease the vertical space between each of them.
To increase or decrease the space between traces:

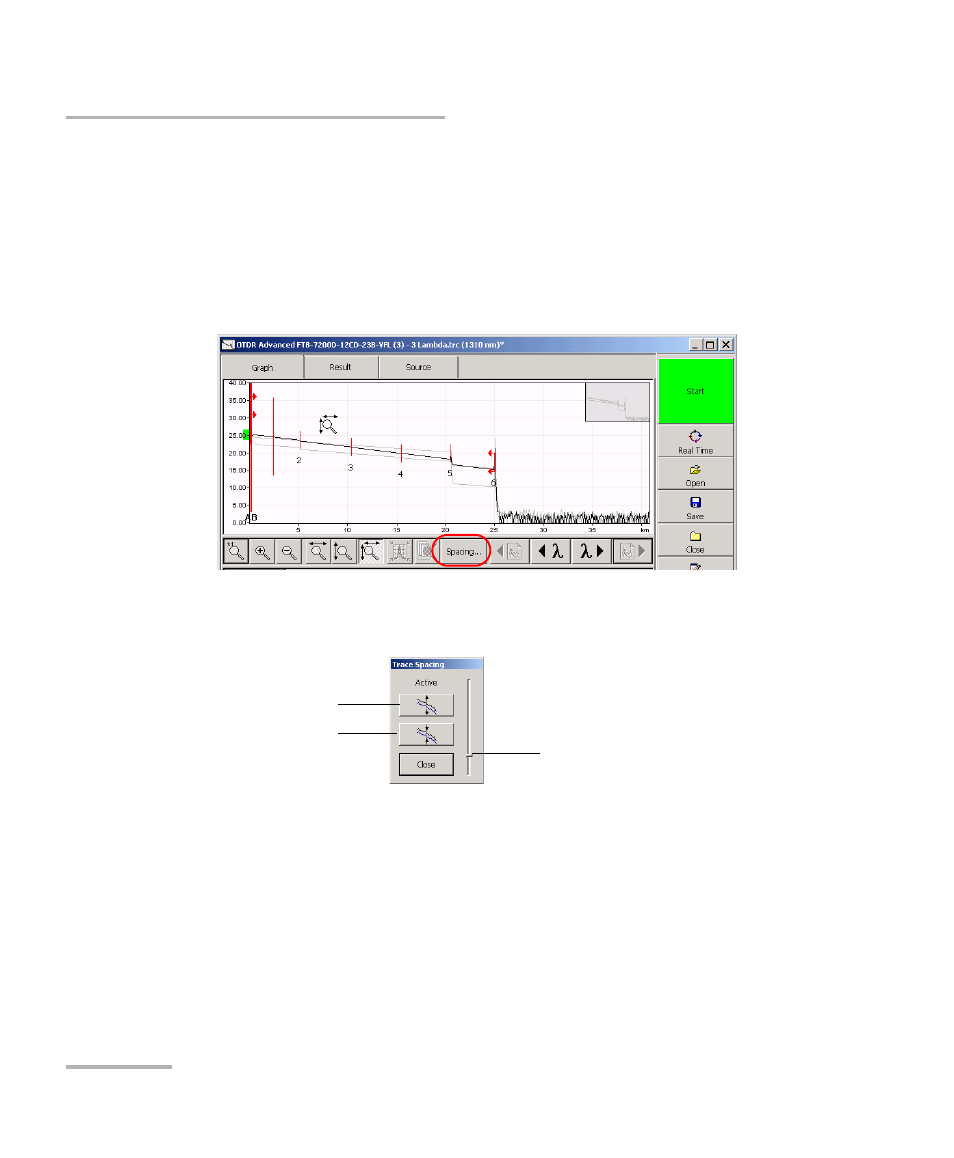

1. From the Graph tab in the main window, press Spacing.
2. Adjust trace spacing using buttons and slider in the Trace Spacing
dialog box.
³
To increase trace spacing, press the corresponding button or move
the slider upwards.
³
To decrease trace spacing, press the corresponding button or
move the slider downwards.
When you are satisfied with the graph appearance, press Close.
Increase spacing
Decrease spacing
Slider
