Project 77 Color Selector - Red Project 78
Color
Selector -
Green
Project 79
Color Selector - Blue
Project 80
Color Selector - Cyan
Project 82
Color Selector - Purple
Project 83
Color Selector -
White
Prismatic
film
Project 81
Color Selector - Yellow

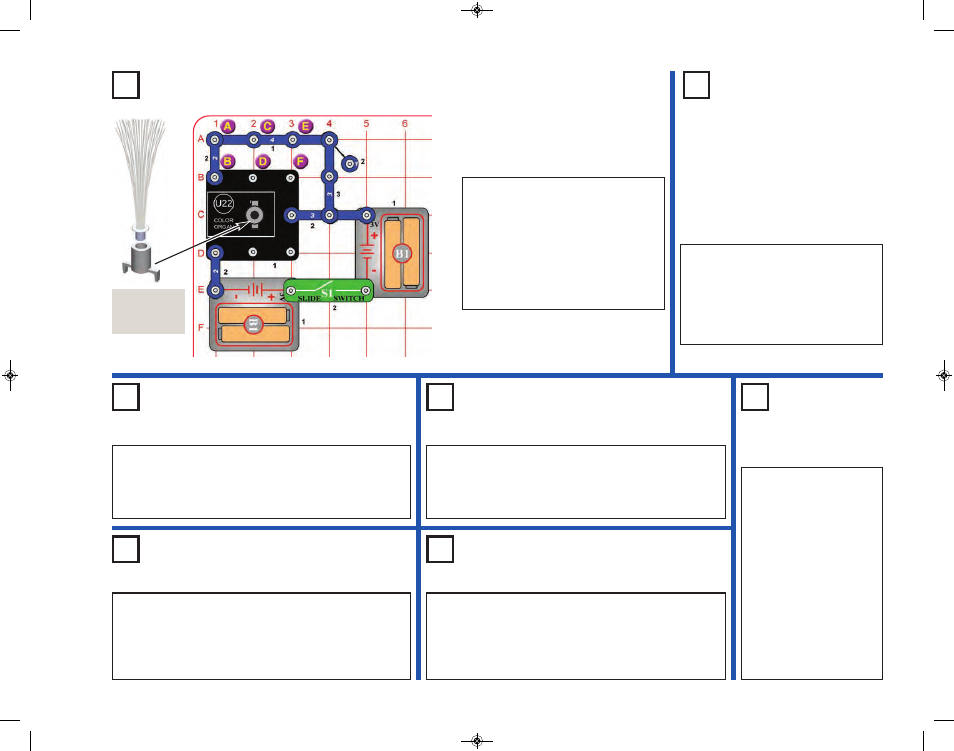

Build the circuit as shown. Place
the fiber optic tree and mounting
base on the color organ (U22).
Turn on the switch (S1). The color
organ makes a red light. Remove
the fiber optic tree and mounting
base, and look at the light through
the prismatic film.
Use the preceding circuit, but
remove the 2-snap between points
A & B, and add one between points
C & D. Now the color is green.
Look at it using the fiber optic tree,
and then the prismatic film.
Use the preceding circuit, but remove the 2-snap
between points C & D, and add one between points
E & F. Now the color is blue. Look at it using the fiber
optic tree, and then the prismatic film.
Use the preceding circuit, but add a 2-snap between
points C & D. Now the color is cyan, which is a
combination of green and blue. Look at it using the
fiber optic tree, and then the prismatic film.
Use the preceding circuit, but remove the 2-snap
between points E & F, and add one between points
A & B. Now the color is yellow, which is a
combination of red and green. Look at it using the
fiber optic tree, and then the prismatic film.
Use the preceding circuit, but remove the 2-snap
between points C & D, and add one between points
E & F. Now the color is purple, which is a combination
of red and blue. Look at it using the fiber optic tree,
and then the prismatic film.
Use the preceding
circuit, but add a 2-
snap between points C
& D. Now the color is
white, which is a
combination of red,
green, and blue. Look
at it using the fiber optic
tree, and then the
prismatic film.
Black is made by
turning off all the
colors.
