Spark Plugs (Continued)

Ignition Timing

Use an automotive timing iight to check and adjust

ignition timing. A timing mark is provided on the crankshaft
pulley and a degree indicator is also provided. Set timing with
the engine running at no-load as follows:

IGNITION TIMING AT 1860 RPM

21‘BTDC

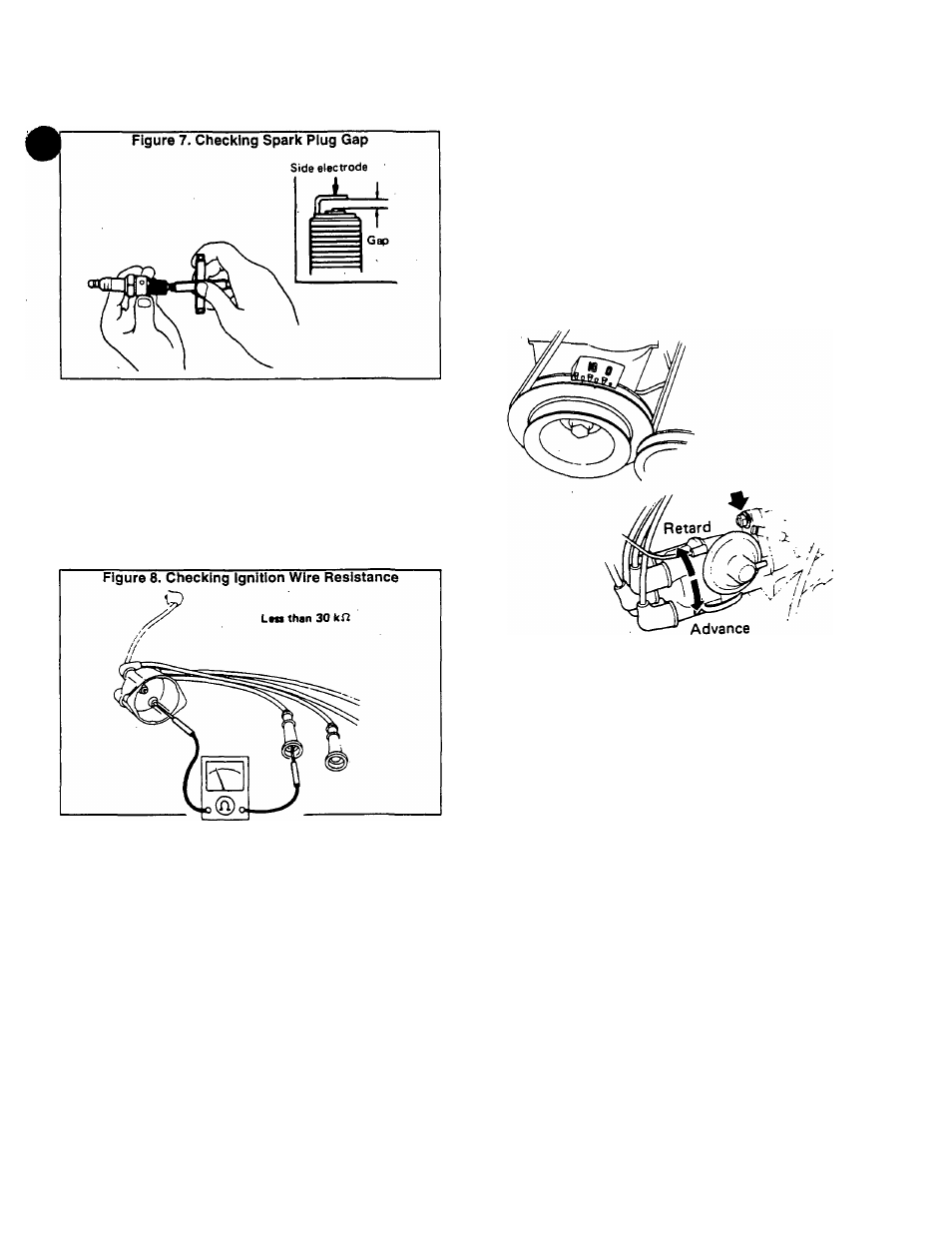

Checking Ignition Wires

Carefully inspect high tension leads for damage, cracks,

burned terminals, proper fit. Measure the resistance of each
wire (Figure 8). Shake the wires during the test.

IGNITION WIRE RESISTANCE

Less than 30,000 ohms

Figure 9. Ignition Timing

Page 8.2-2
