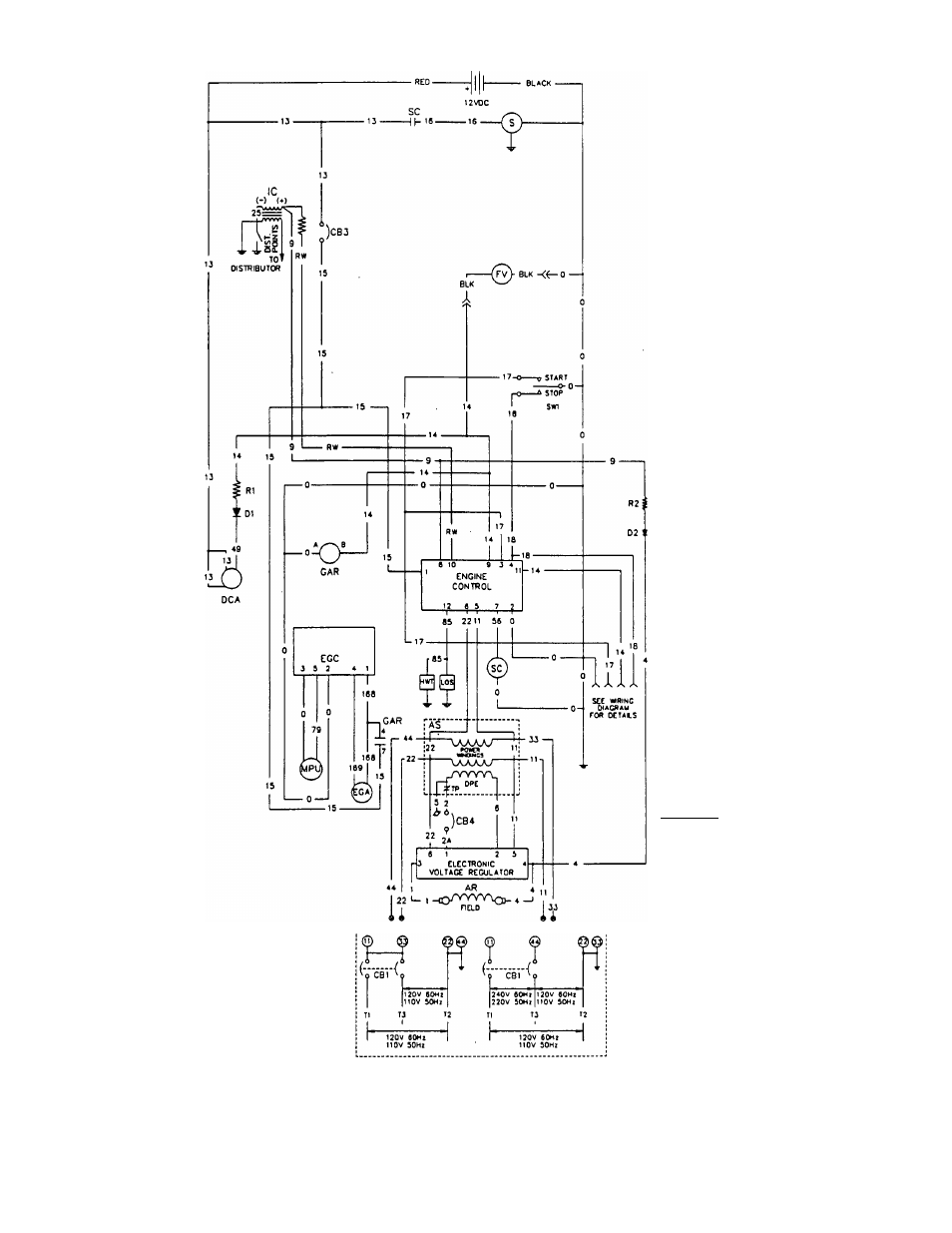

. ELECTRICAL SCHEMATIC (82663)

CONNCCnON OPTIONS

LEGANO

AR -ALTERNATOR ROTOR

AS -

alternator

stator

CBl-CiRCUlT BREAKER 4SA

CBJ-CIRCUIT BREAKER (TOA)

CB4-CIRCUIT BREAKER (5A)
CAR-GOVERNOR ACTUATOR RELAY (12V)
01 -DIODE 600V, 6AMP
02

-OlOOE 200 V. 1 AMP

OCA-DC ALTERNATOR
OPE -EXCITATION WNOINC
EGA-ELECTRONIC GOVERNOR ACTUATOR
EGC-ELECTRONIC GOVERNOR CONTROL
FV -FUEL VALVE
HWT-HICH

water

temp

SWITCH

IC -IGNITION COIL
LOS-LOW ®L PRESSURE SWITCH
MPU-UACNETIC PiCK-UP
R1 -RESISTOR FIELD BOOST 10 OHM. 5w
R2 -RESISTOR 100 OHM. 1 WATT
RW -RESISTANCE WIRE

starter

SC -START CONTACTOR
SWI -SVrtTCM. START/STOP
TP -

thermal

PROTECTOR
