Professional Sew-Ware
Multiple Hoop Lettering
Remember:
Each of the cells on the PSW card holds approximately 30,000 stitches and 15
colors. The sewing area of each individual large hoop quadrant within the
multiple hoop function is 105mm (X axis) x 215mm (Y axis).
If a quadrant exceeds the 30,000 stitches, or is larger than 105mm (X axis) x
215mm (Y axis), a dialog box will appear that states, Design is too Big. If there
are more than 15 colors, a dialog box will state, Too many colors.
15. A Save Design to Card dialog box will appear with the cells of the card shown.
Select a ceil and click on write.

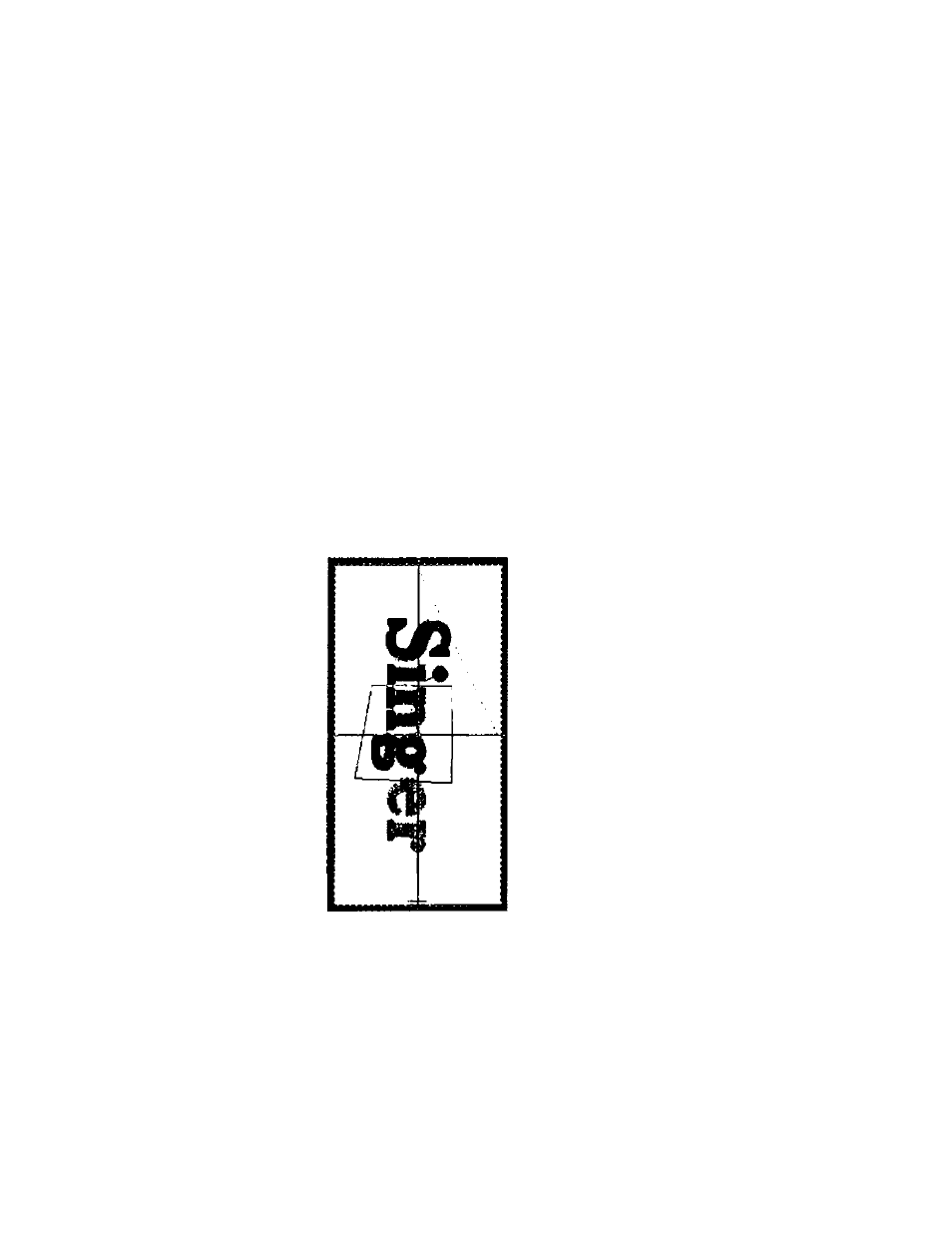

16. The design quadrant will be written to the card. This quadrant will now appear gray
on the screen.
17. Repeat steps 9 through 16 for the letters n & g. Remember to include the center
cross point when blocking out the letters.
IS.Repeat steps 9 through 16 for the letters e & r. Again, remember to include the
center cross point when blocking out the letters.
19. AI1 quadrants have been transferred to the card and the entire design will be gray on
the screen. When the red light is no longer blinking, the card can be removed from
the writer box and place in the XL-1000 machine.
20. Be sure to use the Multiple Hoop selection on the XL-1000 when accessing the
card.
76
