Carrier 38AH044-134 User Manual

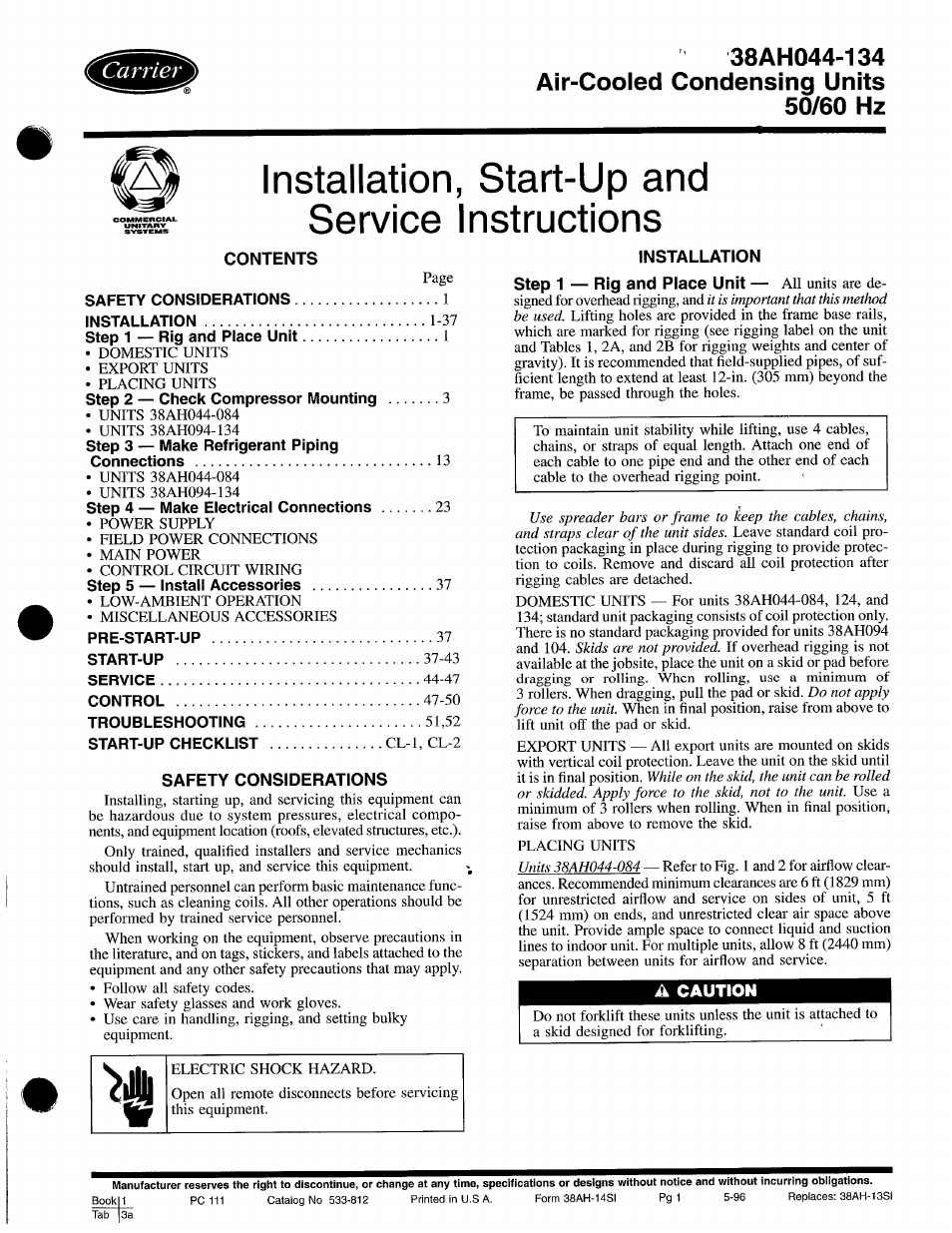

Installation, start-up and service instructions, S till
Table of contents
Document Outline
- É,
- Installation, Start-Up and Service Instructions
- A CAUTION
- A CAUTION
- A WARNING
- Step 2 — Check Compressor Mounting
- Г'
- f
- Fig. 5 — Dimensions — Unit 38AH124
- Step 3 — Make Refrigerant Piping Connections
- A CAUTION
- <е
- 38АН124,134
- A CAUTION
- Fig. 24 — Field Wiring, Single ModuPanel™ Control, 38AH044-084 Dual-Circuit Units
- Fig. 25 — Field Wiring, Single ModuPanel™ Control, 38AH044-084 Optional Single-Circuit Units
- Fig. 26 — Field Wiring, Single ModuPanel™ Control, Unit 38AH094
- Fig. 27 — Field Wiring, Singie ModuPanel™ Control, Unit 38AH104
- Fig, 28 — Field Wiring, Single ModuPaneF” Control, Units 38AH124 and 134
- Step 5 — Install Accessories
- PRE-START-UP
- System Check
- START-UP
- Preliminary Checks
- Adjust Refrigerant Charge
