380V, 380/415V,
34SV ONLY
4,
♦
4
ЯВ
ЭВ
OE
Ш
-L.
OS
ЕШ
1
FIELO POWER
I I
PARALLEL CONOUCIORS
t20B/Z30V>
_l__________ I_________l_l________ l_
I _ _ je^ 0iSC0N»ecT_________________j
3BAH04A-084 (ALL V0LTAGE51
SINGLE ENTRY POWER
NOTES:
1. Factory wiring is in accordance with NEC; field modifications or additions must be in com
pliance with all applicable codes.
2. Wiring for field power supply must be rated 75 C minimum. Use copper, copper-clad alu
minum, or aluminum conductors. Maximum incoming wire size for each terminal block is
500 kcmil.
3. Terminal blocks TBS and TB4 are for external field control connections. Control connections
are to be class 1 wiring.
Field-supplied components (IFC, LLS-A, and LLS-B) must have a maximum sealed coil
rating of 30 va each (.25 amp at 120 vac, 13 amp at 230 vac). AHMS IFC-AUX must have
a minimum pilot duty rating of 200 va (1.7 amps at 120 vac, 0.9 amps at 230 vac) each,
5. Replacement of factory wires must be with type 105 C wire or its equivalent.
6. Field-supplied liquid line solenoid valves installed at the evaporator are required on all units.
7 Units have 175 va of power available for field-installed accessories.
4.

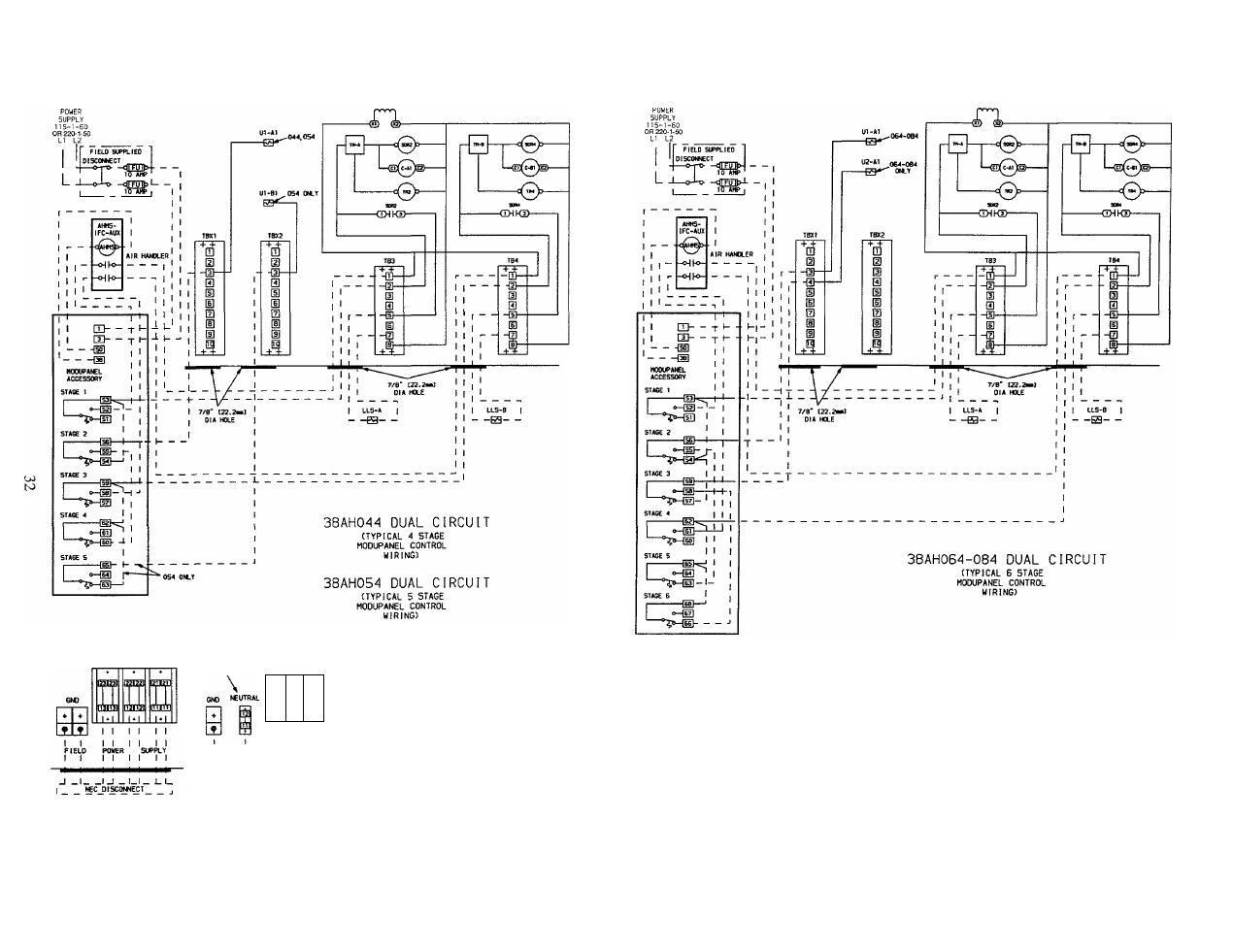

Fig. 24 — Field Wiring, Single ModuPanel™ Control, 38AH044-084 Dual-Circuit Units
