LEGEND
TXV
— Thermostatic Expansion Vaive
TYP
— Typical
NOTE Lower split first on, last off

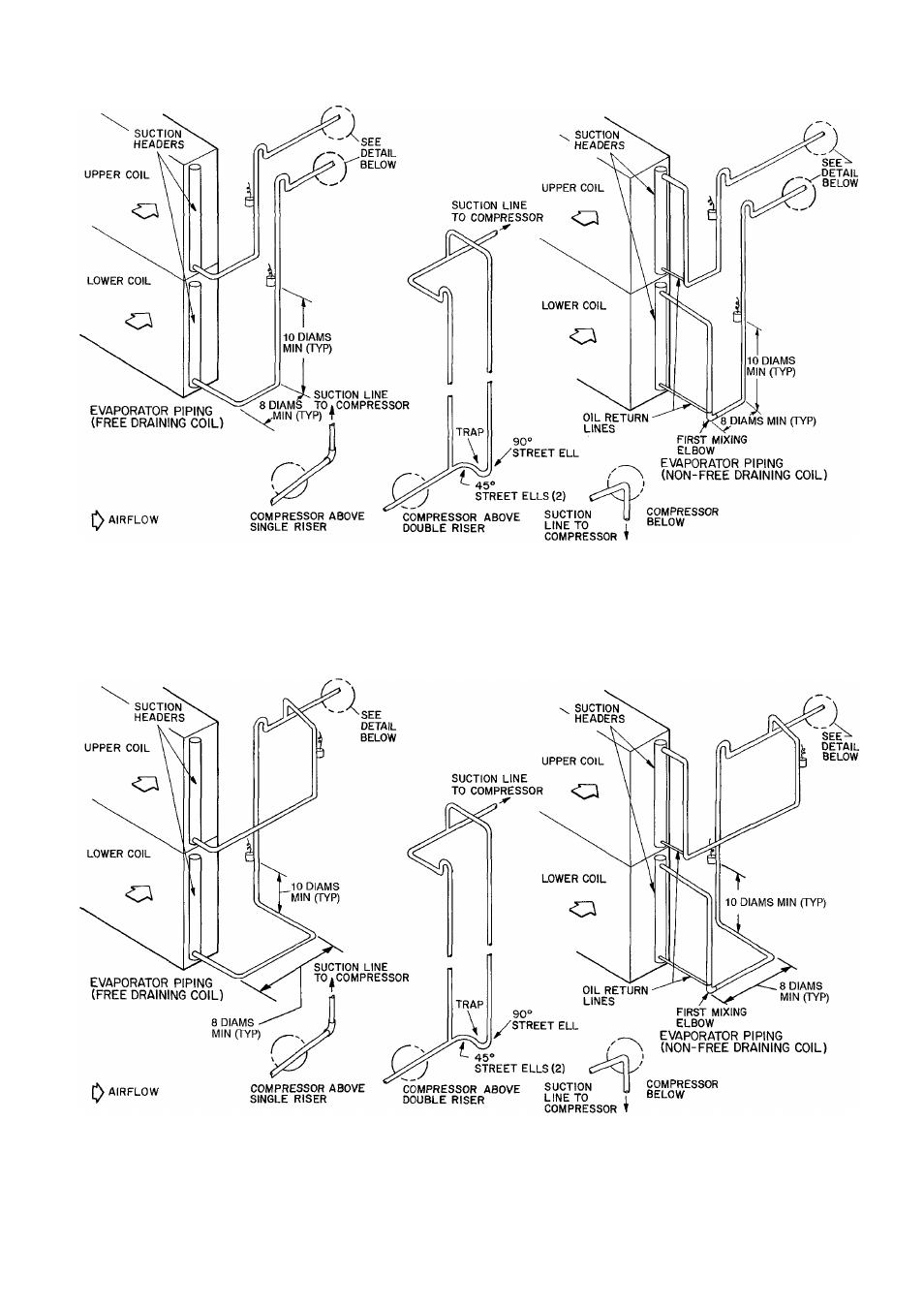

Fig. 14 — Typical Piping Connections for Face Split Coils for 38AH044-084 Dual-Circuit
and 38AH094-134 Units
LEGEND
TXV
— Thermostatic Expansion Valve
TYP
— Typical
NOTE Lower split first on, last off
Fig. 15 — Typical Piping Connections for Face Split Coils for 38AH044-084 Optional Single-Circuit Units
20
