'Г
V I E W S - 5
TOP VIEW OF CONTROL BOX SHELF
WITH FIELD POWER SUPPLY CONNECTIONS
SCALE 1:10
(32) MT6 HOLES
17/32' DIA.
[13mtn]
J HINGED ACCESS
\ PANEL '
(CONTROL SIDE)
, 1 TYPICAL
•1 BOTH ENOS
HINGED ACCESS ,
> PANEL
(POWER SIDE)
TYPICAL
BOTH ENDS
■ Isl"
RELIEF VALVES LOCATED ON
THE COMPRESSORS ARE EQUIPPED
WITH A 3/8' 5AE FLARE FOR
FIELD CONNECTION
-1 -4 7/8' 1
c- 1 /'i' (42ВямпЗ
I -b I/2 MTG HOLES
НТО HOLES
I -3/4'
СЭ23вя|]
ИТ6 HOLES
- 20'-6 1 / 8 '-
[6253inm]
BASE OVERALL
Chart 1, Field Power Supply Connections
NOTES;
1
UNIT
38AH
VOLTAGE Hz
DIAMETER —
in. (mm)
QUANTITY
134A
208/230 60 ЗУ8 (92) 1
460, 575, 380 60 2Уг (63) 1
346, 380/415 50 ЗУв (92) 1
134B
208/230 60 2Vi (63) 2
460, 575 60 2Уг (63) 1
380 60 ЗУв (92) 1
346, 380/415 50 ЗУв (92) 1
LEGEND
C — Copper Fin Coils
MTG — Mounting
SAE — Society of Automotive Engineers
8
9
10
The approximate operating weight of the unit is;
38AH-134— 7507 ib (3405 kg)
38AH-134-C 8357 ib (3791 kg)
Unit must have ciearances for airfiow as foliows;
Top — Do not restrict in any way
Ends — 5 ft [1524 mm]
Sides — 6 ft [1829 mm]
Mounting hoies may be used to mount unit to concrete pad They are not
recommended for mounting unit to spring isoiators.
One ЗУа" (92-mm) dia hoie is recommended for single-entry power into
Module 134A and 208/230-v units Single entry power into Module 134B is
not recommended
Circled numerals in Top View refer to condenser fans by position
If spring isolators are used, a perimeter support channel between the as­
sembled unit and the isolators is recommended Do not support each mod­
ule separately
Each module of the unit must be rigged into position separately. The unit
must not be rigged after modules have been connected.
Suction and liquid connections can exit on either side of the unit
Field power supply connections are required for each module
See Table 1A or 1В for rigging center of gravity (Dimensions K,L,X,Y). See
Table 2A and 2B for A-D corner weights.

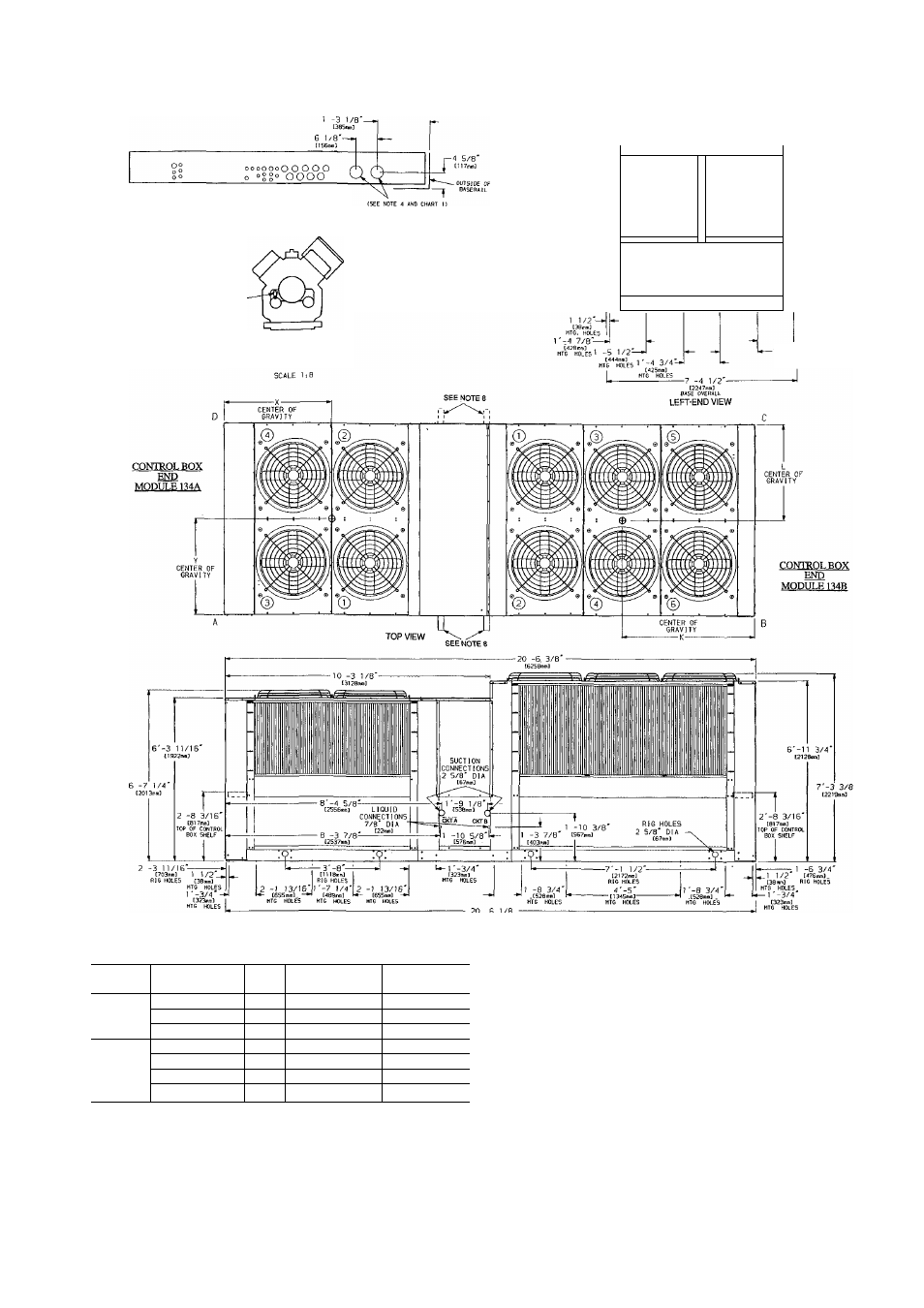

Fig. 6 — Dimensions — Unit 38AH134
