NOTES;
1 Liquid iine soienoid vaives LLS-A1 and A2 are used tor
soienoid drops
2 Solenoid drop is a safety feature which prevents refrig­
erant migration to the compressor during the OFF cycle
It is recommended on all systems and required on sys­
tems where piping exceeds 75 ft (22 9 m) in length
3 The TSR-01 relay pack requires 10 va.
4
Factory wiring is in accordance with NEC; field modi­
fications or additions must be in compliance with all ap­
plicable codes
5. Wiring for field power supply must be rated 75 C mini­
mum Use copper, copper-clad aluminum, or alumi­
num conductors Maximum incoming wire size for each
terminal block is 500 kcmil
6 Terminal blocks are for external field control connec­
tions Control connections are to be class 1 wiring
10
Field-supplied components (IFC, LLS-A1, and
LLS-A2) must have a maximum sealed coil rating of
30 va each (0 25 amp at 120 vac and 0 13 amp at
230 vac) Thermostats must have a minimum pilot duty
rating of 300 va (2 5 amps at 120 vac and 1.3 amps at
230 vac)
Replacement of factory wires must be with type 105 C
wire or its equivalent
Field-supplied liquid line solenoid valves installed at the
evaporator are required on all units
Units have 175 va of power available for field-installed
accessories
To minimize voltage drop, the following wire sizes are
recommended:
LENGTH —
Ft(M)
INSULATED WIRE — AWG
(35 C Minimum)
Up to 50
(15.2)
No 18
50-75
(15.2-22.9)
No 16
More Than 75
(22.9)
No 14
LEGEND
AWG — American Wire Gage
C — Compressor Contactor
CCPS — Capacity Control Pressure
Switch
CR — Control Relay
HD — Heating Device
IFC — Indoor-Fan Contactor
IFR — Indoor-Fan Relay
kcmil — Thousand Circular Mils
LLS — Liquid Line Solenoid
NEC — National Electrical Code
(U S.A Standard)
R — Heating Relay (field-
supplied 24-v sealed coil,
10 va maximum rafing)
RV — Reversing Valve
SDR — Solenoid Drop Relay
TB — Terminal Block
TR — Timer Relay
Factory Wiring
------------- Field Wiring

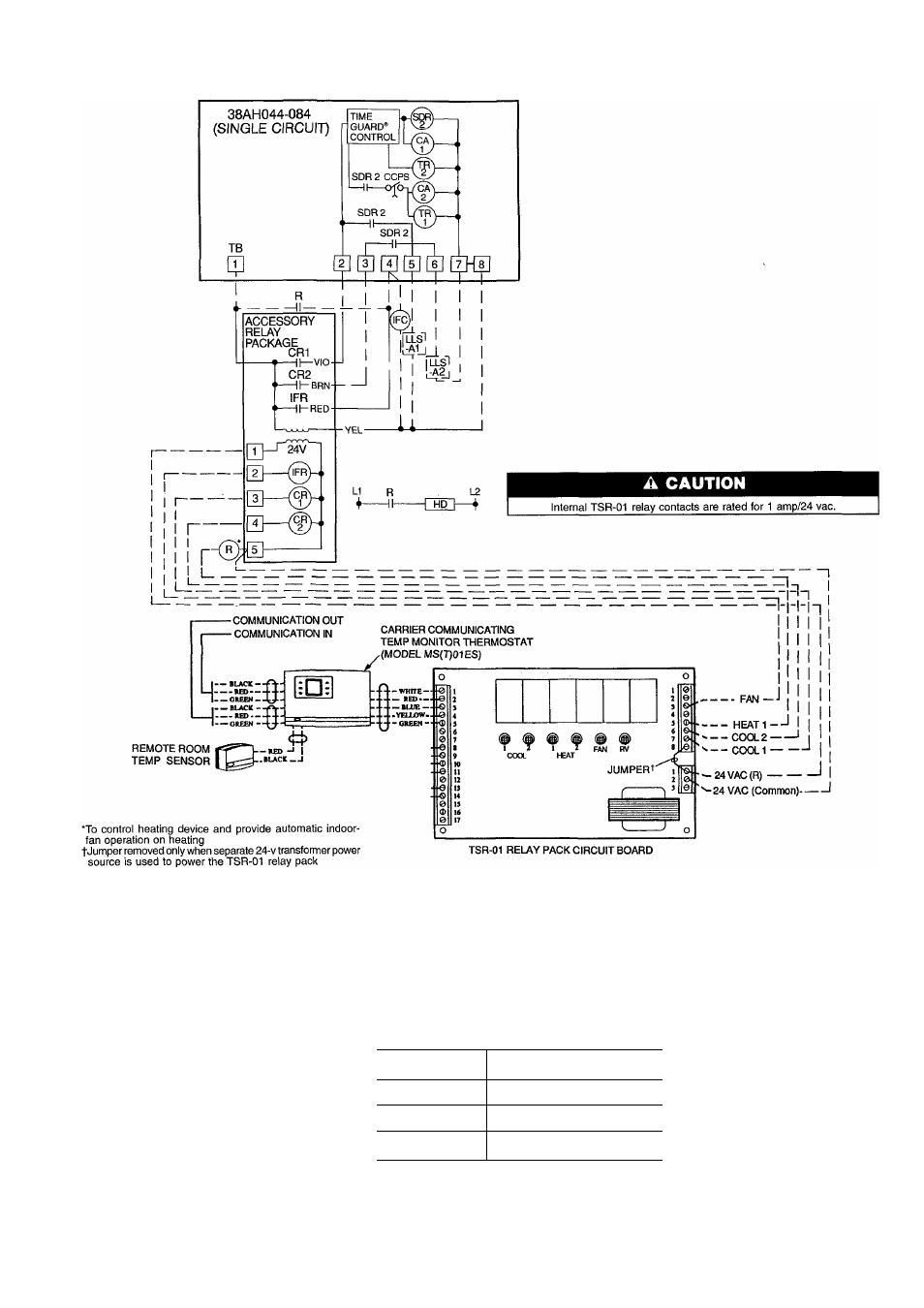

Fig. 21 — Field Wiring, One 2-Stage Thermostat — 38AH044-084 Optionai Single-Circuit Units
29
