Section 8
USInG tHe ControlS on tHe
neotHerm 1000
8.1 Controls and Indicators on the
front of the Unit
There are only a few controls and indicators on the
front of the unit. See Fig. 22. Most of the control
functions are done using the Operator Interface
panel.
8.2 Using the operator Interface
The NeoTherm 1000 uses a color touch screen
Operator Interface to get input from the operator
or installer, and to present information about the
operation of the boiler. Each boiler includes a
touchscreen, but in a typical installation, only the
touchscreen on one of the boilers will be active.

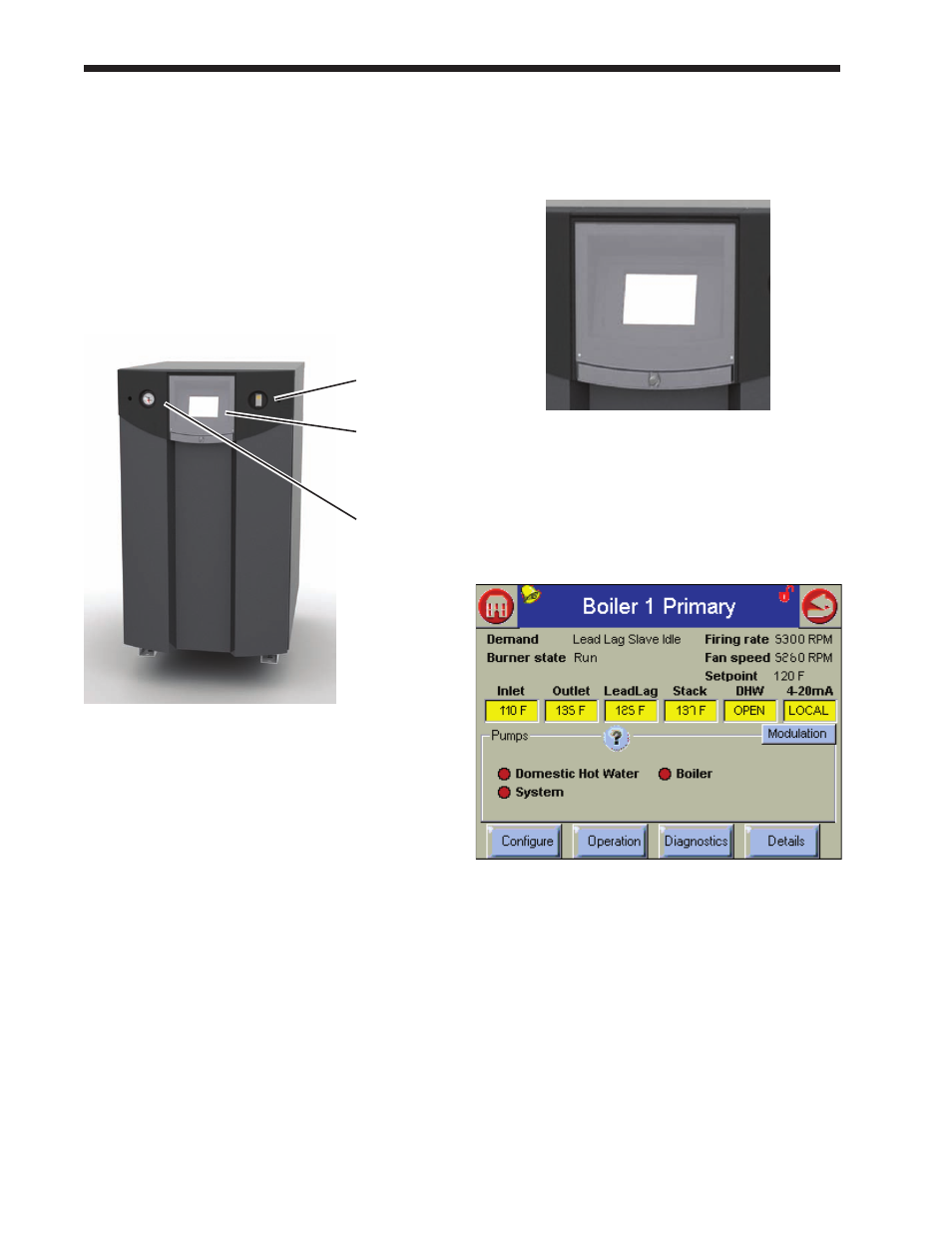

fig. 22 - Controls and Indicators on front of Unit
On/Off
switch
Operator
interface
panel
Boiler
outlet
temperature
and system
pressure
fig. 23 - operator Interface
Most of the control functions are done using the
touch screen area in the center of the panel.
Here’s a typical screen or “page” presented by the
system:
fig. 24 - Status Summary Screen
