LAARS Heating Systems
Page 100
Correct the cause of the problem, and press the
button on the screen to clear the Hold.
2. If a serious problem continues, the system will
declare a Lockout. A brief explanation of the
cause of the Lockout will appear in an orange
bar across the bottom of the screen. If you tap
the orange bar, the system will present more
information about the Lockout.
Correct the cause of the problem, and press the
Reset button.
3. If an Alert occurs while the system is running,
the system will present a note across the
bottom of the screen. If you tap the orange
bar, the system will present more information
about the Alert.
Press the OK button to indicate that you have
seen the Alert.
4. If an audible alarm on the display is active,
you can use the Silence button to stop it.
12.2.2 Viewing the lockout and alert
Histories
1. To view the Lockout history, start at the Home
screen (Fig. 125). Press the icon for the
controller you want to check. In this example,
we will press the icon on the left.

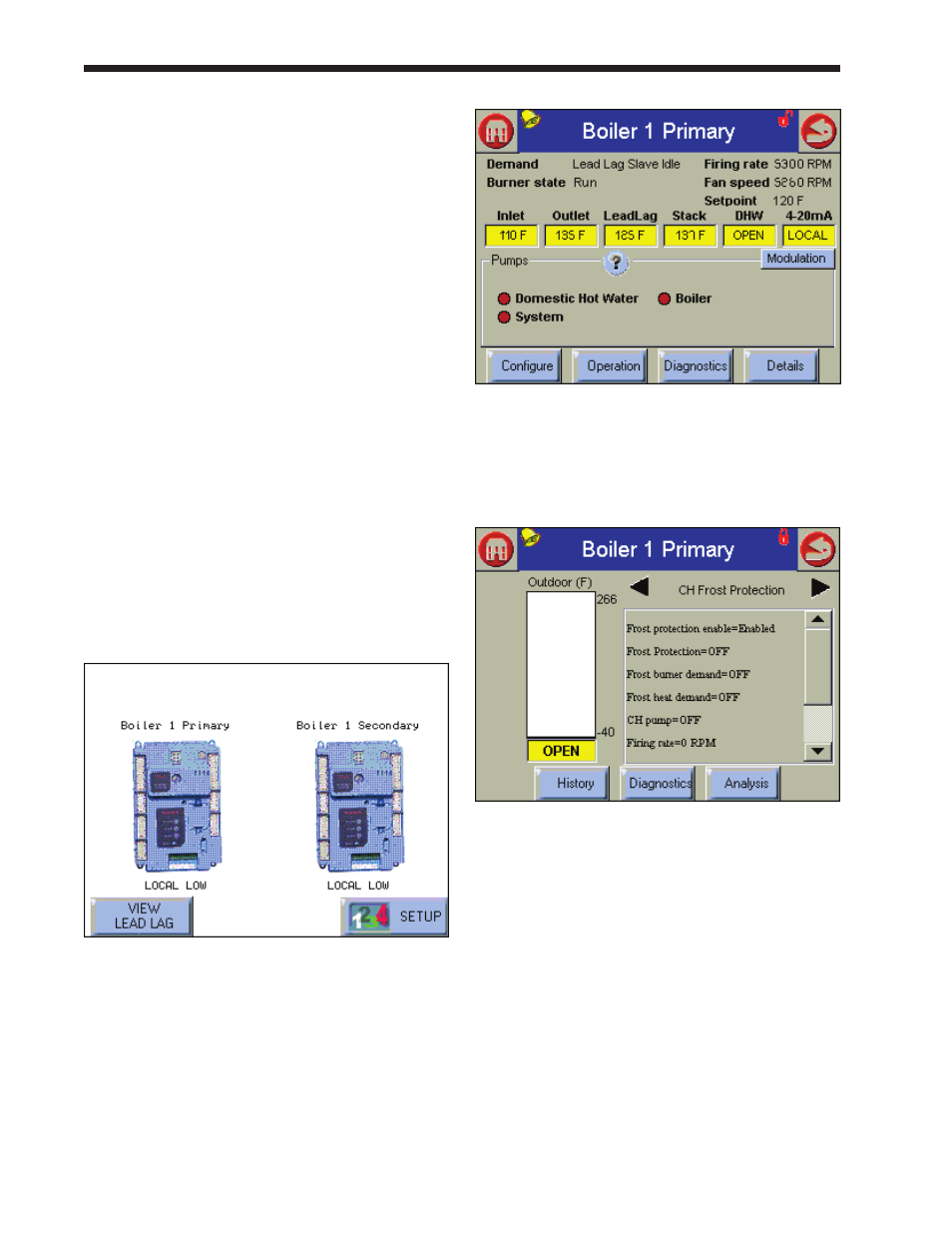

fig. 125 – Home Screen
2. Next the Status Summary page will appear.
See Fig. 126.
fig. 126 – Status Summary Screen
3. If you press the Details button, the control
software will present a screen similar to this
(Fig. 127).
fig. 127 – typical Details Screen
4. To see a record of the recent lockouts and alerts,
press the History button. The system will
present the Lockout History screen (Fig. 128).
