14.
Press and release the area “ENTER”: it will be
started the upload of the configuration
parameters.
The upload takes typically a few seconds; if the
operation is not completed succesfully, the display
will show an error indication (for example “Status:
Read Error”).
To quit the procedure, operate as follows:
15.
Press and release over and over again the area
“ESCAPE”.
7.5.2
Downloading the configuration parameters
To make the download of the configuration parameters,
operate as follows:
1.
Switch on the device and show the sensitive
areas; look at paragraph 6.1 “Switching on/off the
device”.
2.
Press and release the area “USER”: the display will
show the menu “Network Status(CAN)”.
3.
Press and release the area “ENTER”: the display
will show the menu “V-COLOR PROG”.
4.
Press and release the area “DOWN” to select the
menu “Backup/Restore”.
If the device works in browser modality, the menu
“Backup/Restore” will not be available.
5.
Press and release the area “ENTER”: the display
will show the window “Input Password”.
6.
Press and release again the area “ENTER”.
7.
Press and release the area “DOWN” to set “-19”.
8.
Press and release the area “ENTER”: the display
will show the submenu of the menu
“Backup/Restore”.
9.
Press and release the area “DOWN” to select the
submenu (for example the submenu “Backup
Memory”).
Select the submenu “USB Key” to make the
download into a USB key (in this case it is
necessary make sure to have plugged a USB key
in the USB communication port); select the
submenu “Backup Memory” to make the download
of the memory of the device.
10.
Press and release the area “ENTER”: the display
will show the submenu of the selected submenu
(for example the submenu of the submenu
“Backup Memory”).
11.
Press and release the area “DOWN” to select the
submenu (for example the submenu “Hardware
configuration”).
Select the submenu “Application parameters” to
make the download of the configuration
parameters of the application software; select the
submenu “Hardware configuration” to make the
download of the configuration parameters of the
device.
12.
Press and release the area “ENTER”.

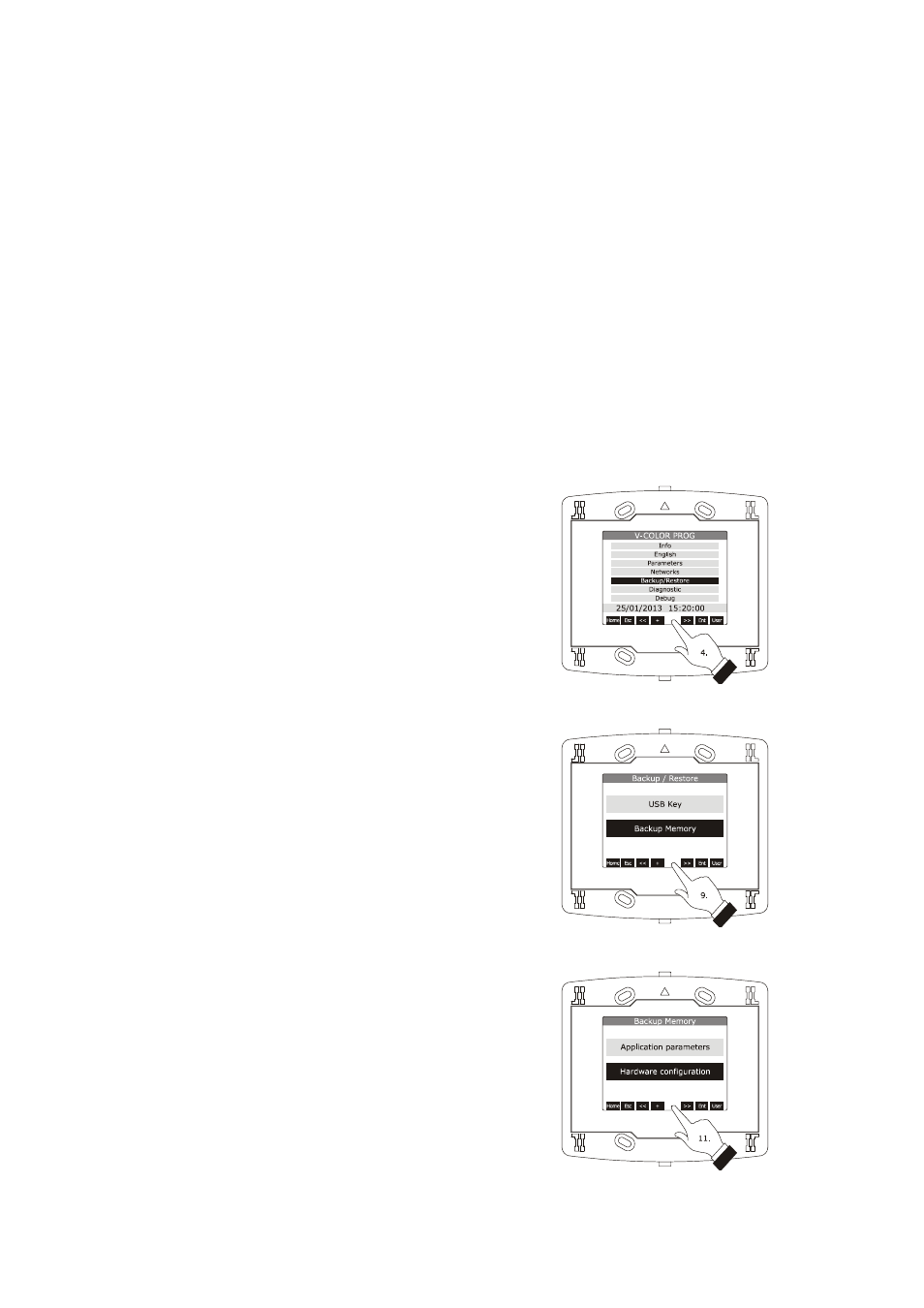

Selecting the menu “Backup/Restore”
Selecting the submenu “Backup Memory”
Selecting the submenu “Hardware configuration”
