4.2 Description of the back

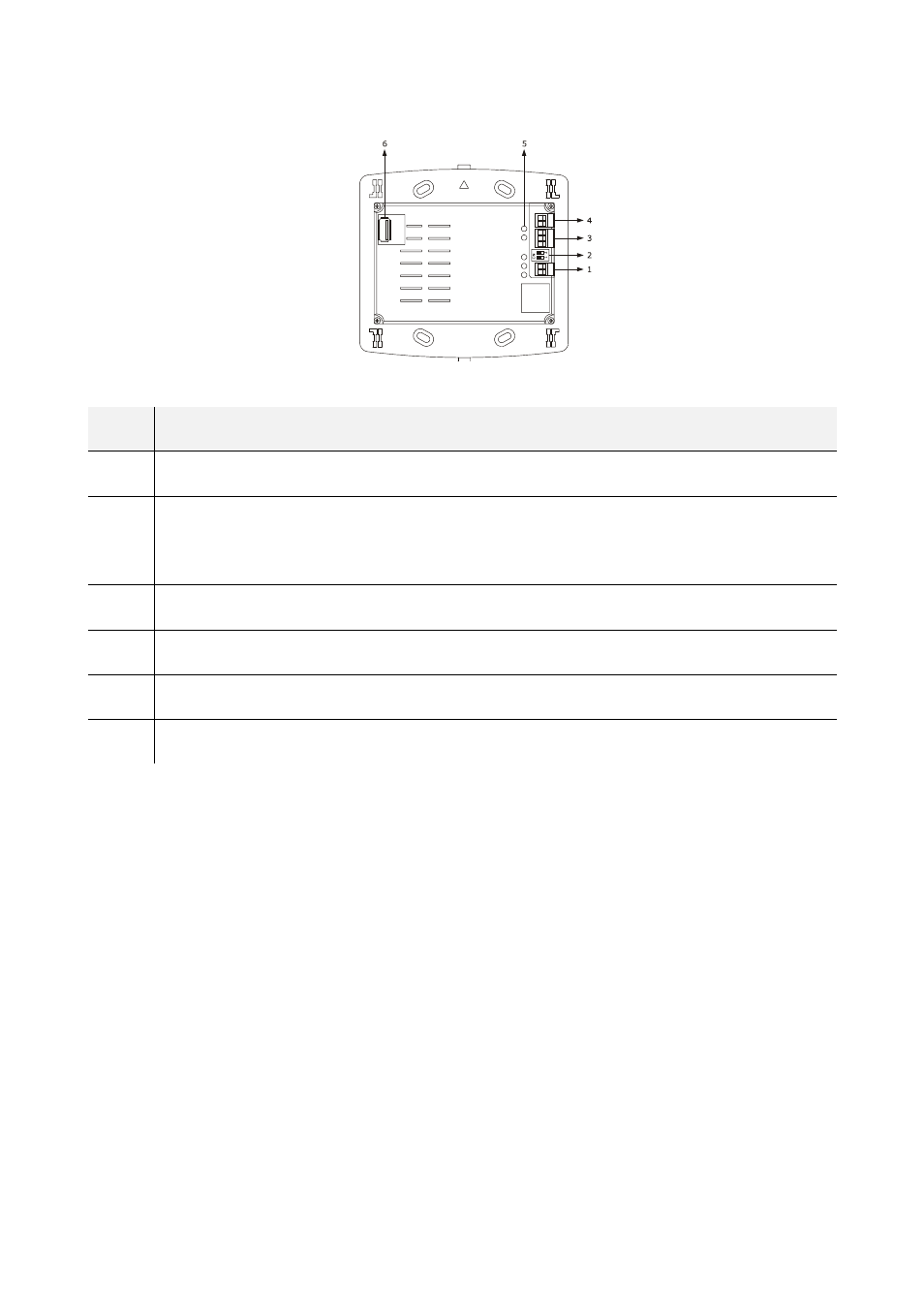

The following drawing shows the aspect of the back of the devices
The following table shows the meaning of the parts of the back of the devices.
PART MEANING
1 RS-485 communication port
2
dip switch to:
- plug in the line termination of the RS-485 network with MODBUS communication protocol
- plug in the line termination of the CAN network with CANBUS communication protocol
3 CAN communication port
4 power supply
5 signal LED
6 USB communication port
For further information look at the following chapters.
