4.5

Electric connection for models EVB1246 and EVB1256

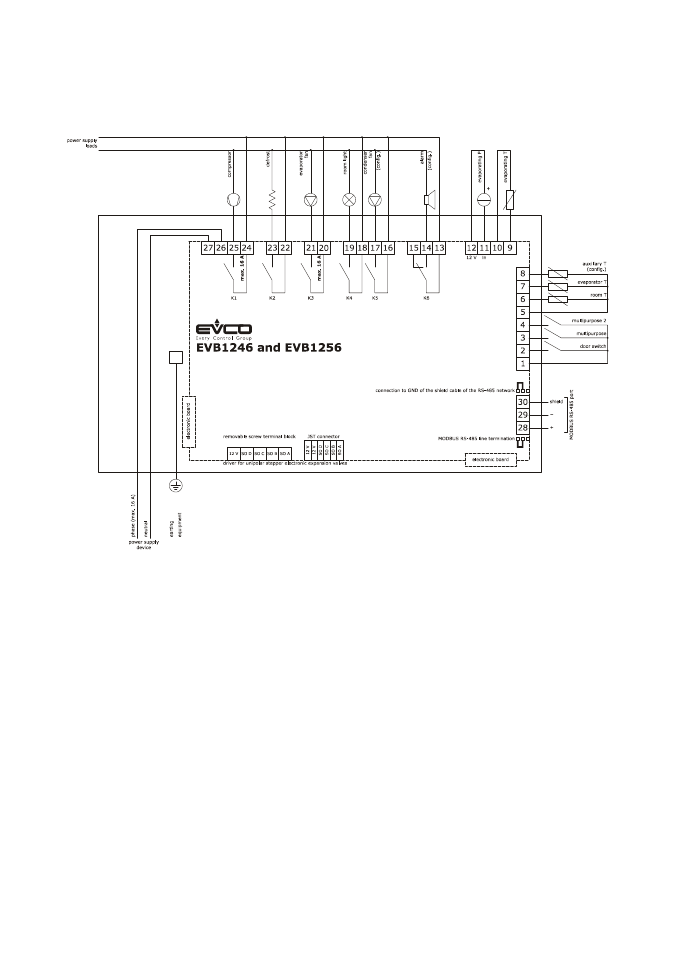

The following drawing shows the electric connections for the EVB1246 and EVB1256 models.
