Figure 2-14a shows sample wiring diagram of the relay box wiring and Figure 2-14b shows the
wiring to the ACS unit for a two-valve combination system. Your actual wiring may vary
depending on the type of valves being used:

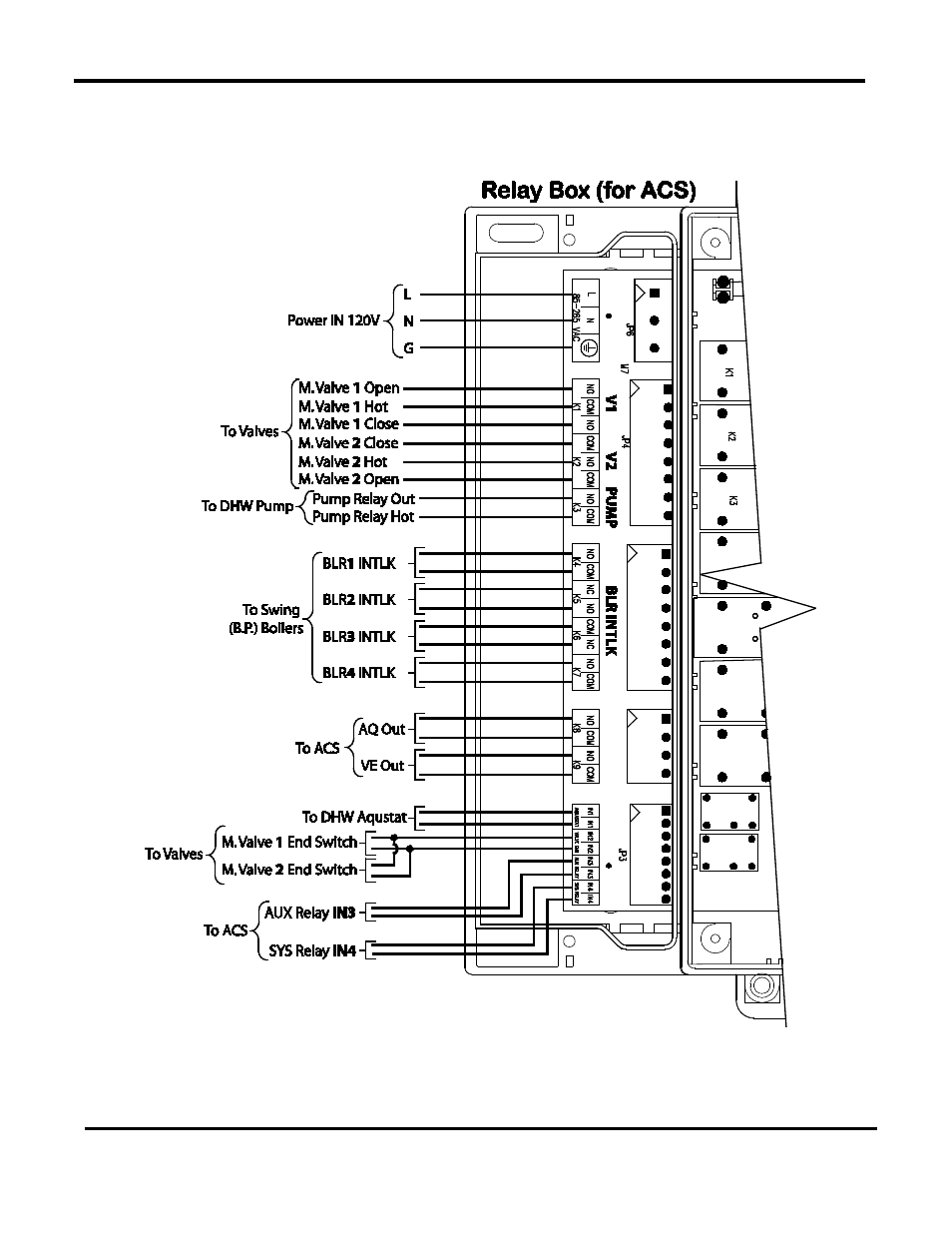

Figure 2-14a: Wiring of the Relay Box (to the AERCO Control System (ACS)
