GF-131
AERCO Control System (ACS)
AERCO International, Inc. • 100 Oritani Dr. • Blauvelt, New York 10913 • Phone: 800-526-0288
Installation, Operation, and Maintenance Manual
OMM-0081_0D
METHOD A – BIAS & TERMINATION ACTIVATED AT C-MORE PMC BOARD

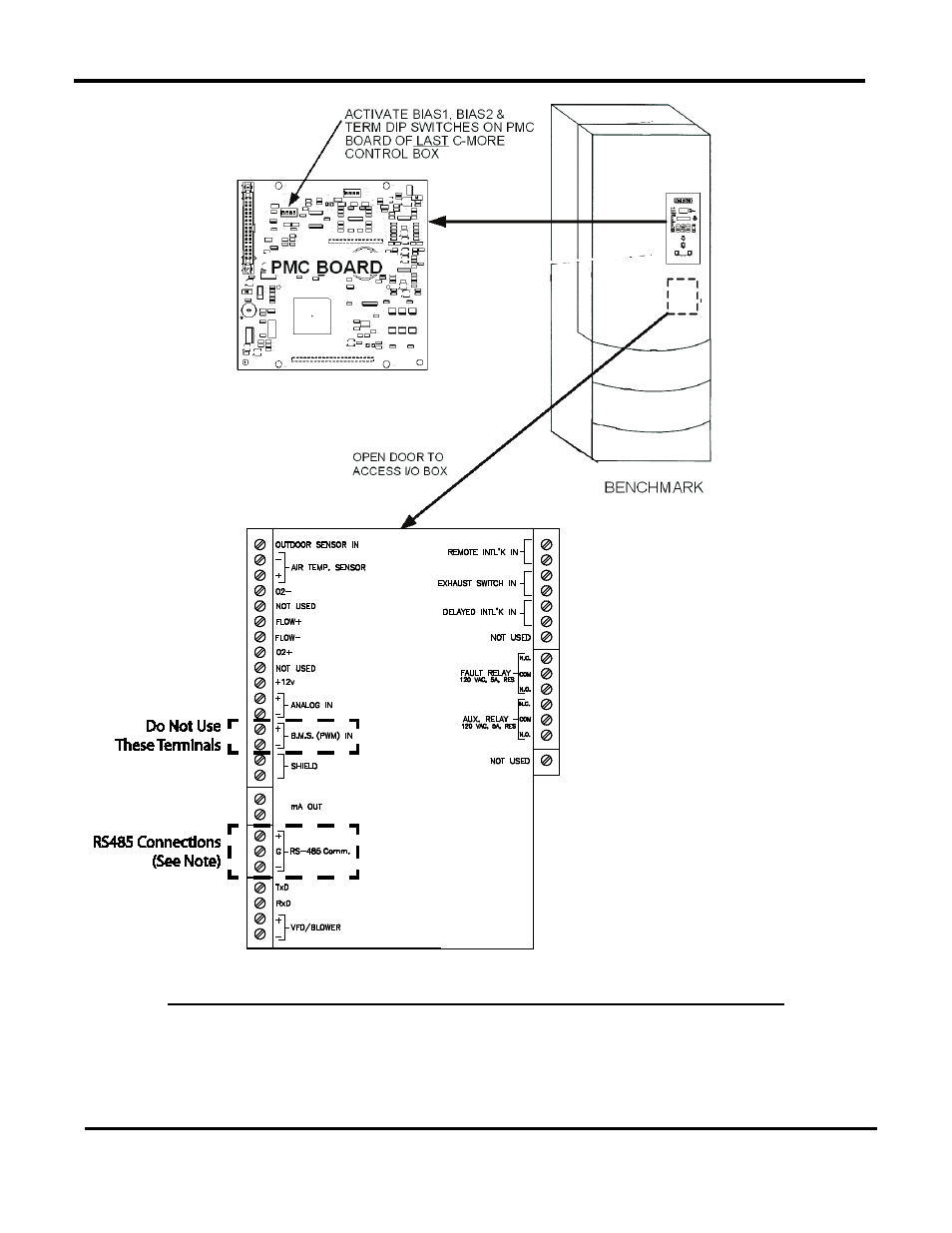

Figure 2-7: RS485 (Modbus) Wiring For Benchmark Series Boilers (Sheet 1 of 2)
NOTE
Do not terminate the shields of
the RS485 leads to the ground
(GND) terminal. The shields
must be terminated at the
source ends only. Connect the
shields of the incoming and
outgoing RS485 leads together.
