3.2.2 Description on each setup screen
HOST MODE:
•
Sets auto-polling mode (multi-drop link) and multi-head scan mode
• Sets the interference suppression function in multi-head mode
• Sets read mode, measuring method and trigger input in multi-head mode
• Sets a read error code and trigger ON/OFF commands in multi-head mode
PROTOCOL:
•
Sets the handshaking protocol
• Sets the header and delimiter
• Sets the PLC link
ID SETUP:
•
Registers the ID number of the connected BL Bar Code Reader
RS-232C:
•
Sets the baud rate, data length, stop bit length and parity for the RS-232C
communication
• Setting the RTS/CTS protocol
RS-485:
•
Sets the baud rate, data length, stop bit length and parity for the RS-485 com-
munication
FILES:
•
Saves, reads or prints settings
COM PORT:
•
Sets the communication parameters (baud rate, etc.) of the host computer
according to the settings of the N-400 before communication starts between the
N-400 and host computer.
TRANSFER:
•
Sends updated settings to the N-400, or reads the current settings of the N-400.
MONITOR:
•
Checks if the N-400 can operate normally.
EXIT:
•
Quits the N-400 setup software.

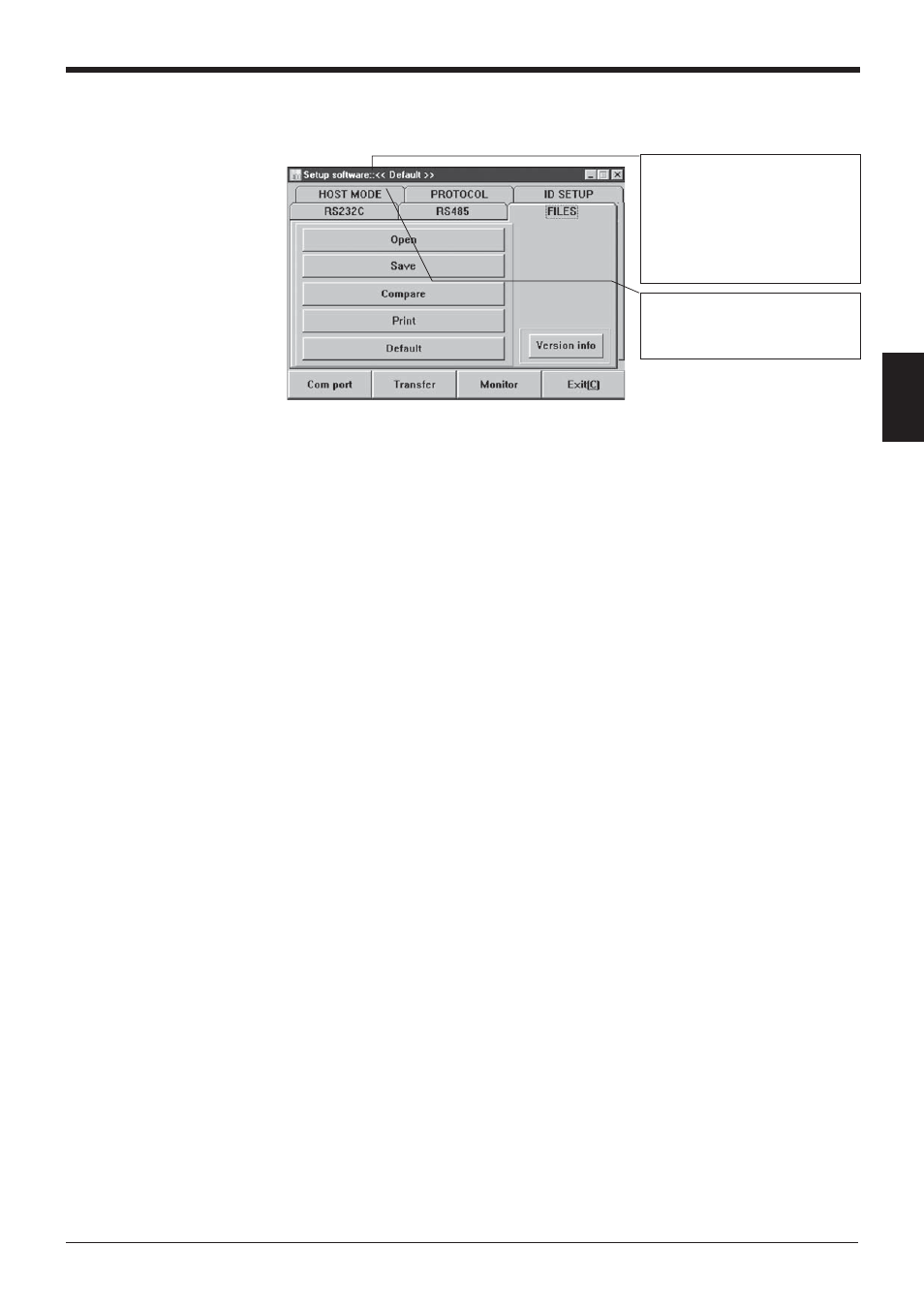

Displays the name of the setup file
currently being edited. If the file has
been read from the setup file, the file
name is specified as “File: ...”. If the
file has been read from the N-400, the
file name is marked with “N-400”. If
the file name is the initial setting,
“default” is displayed.
If the file name has been changed
from the initial setting (the condition
immediately after it is read from the
file), “changed” is displayed.
▼
▲
