18 Chapter 3
•
•
•
•
•
•
Step 4. While holding the HI 6500 series instrument, gently pull the bottom of the HI 6500
away from the DIN rail to verify that it is mounted correctly.

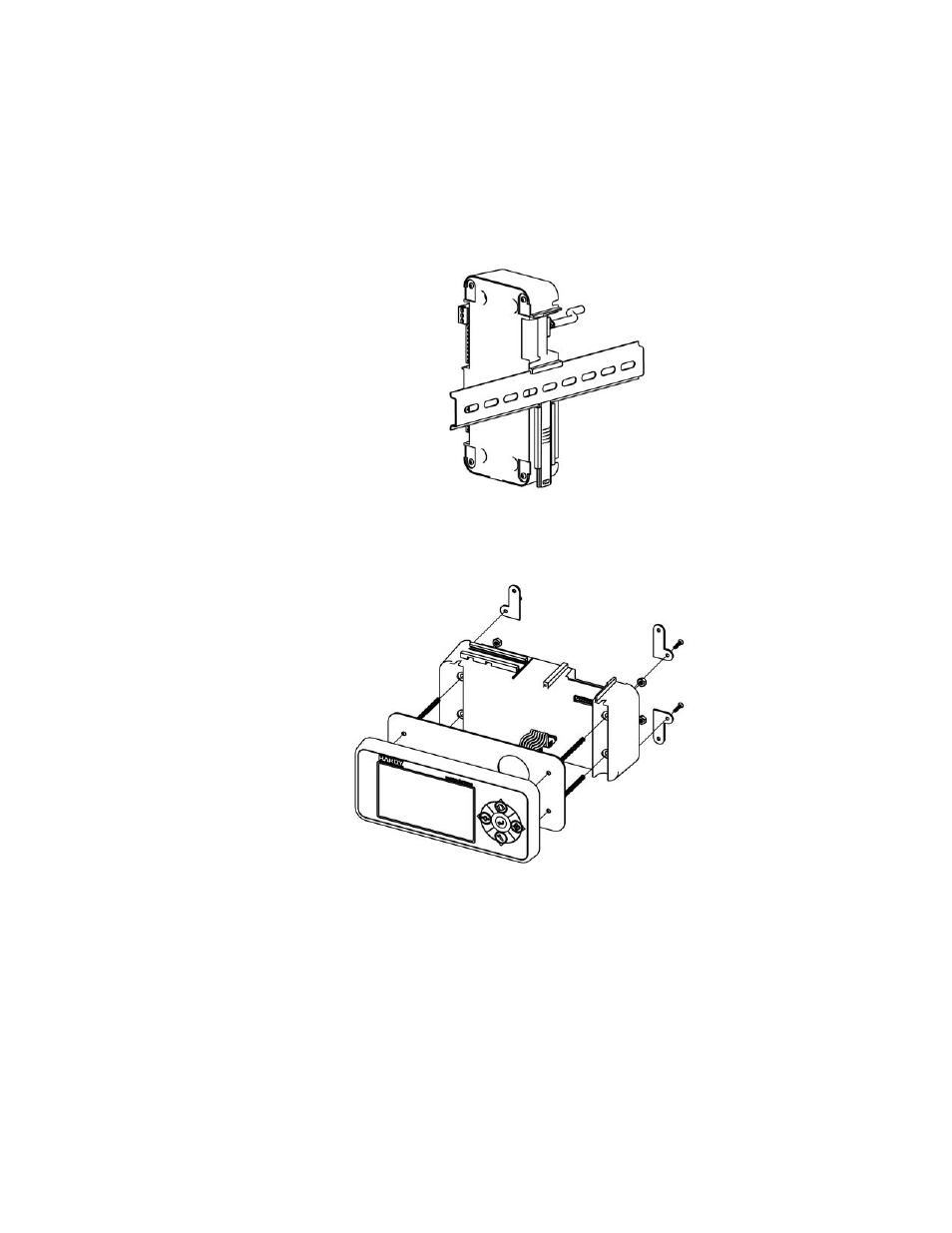

Completed DIN Rail Mount Assembly
Wall Mount
Wall Mount Assembly exploded from the front with optional mounting kit
To wall mount the HI 6500 series instrument, the display and weight processor need to be
assembled; then the assembled instrument can be mounted onto the wall.
Step 1. Connect and hand tighten the four screw rods into the front panel display
Step 2. Connect the front panel display cable assembly
Step 3. Push the screw rods and cable assembly though the holes in the gasket.
