Calibration 113
•
•
•
•
•
•
C2 and eCAL Calibration from the Web Page

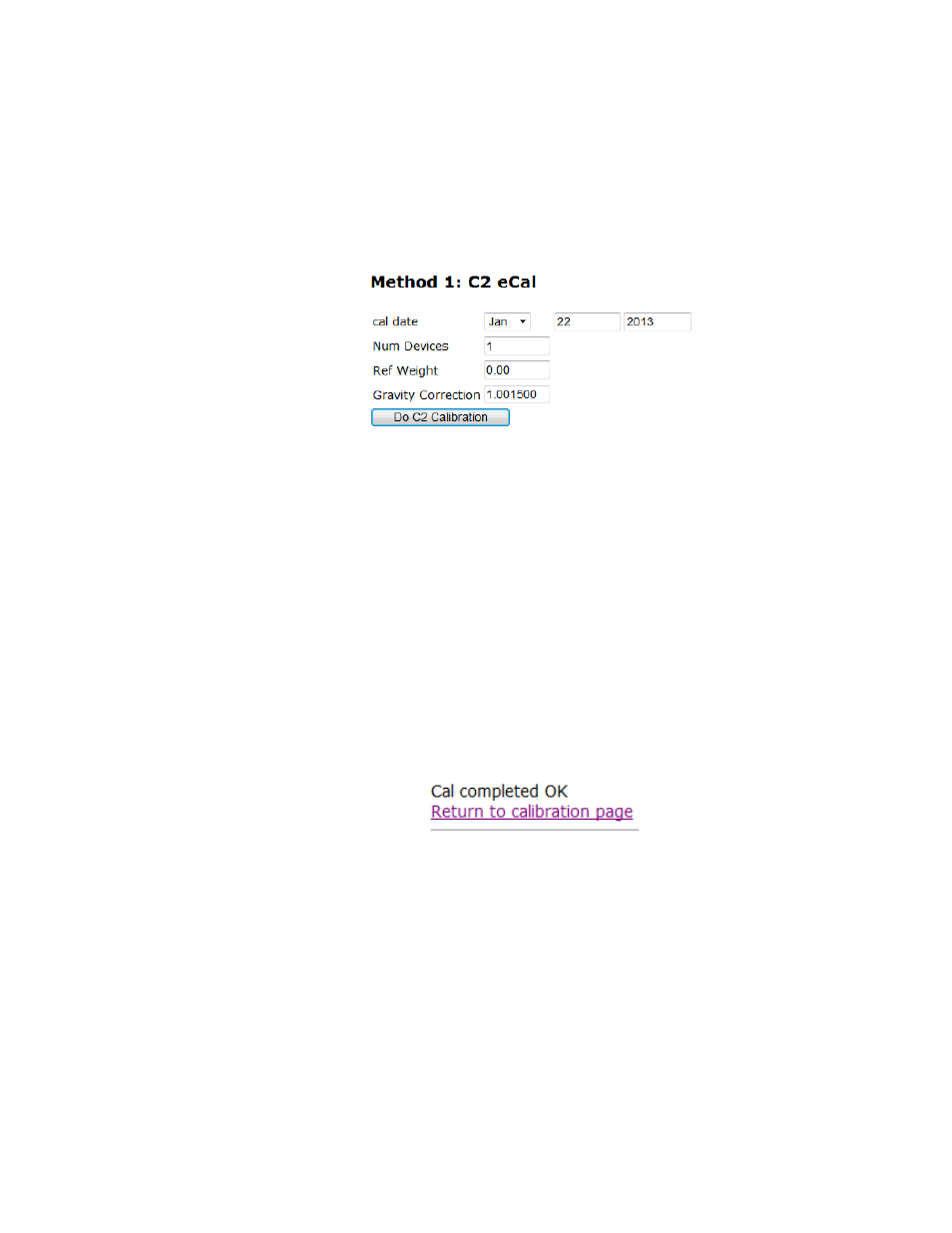

From the Home Page, click Configuration to display the Configuration menu; then
click Calibration to open the Calibration page.
Step 1. Check to make sure the number of load cells displayed on the webpage
corresponds correctly to the inputs on the instrument.
Step 2. In the “Ref Weight” text field, enter the reference weight for your application.
Step 3. An empty scale will use a 0.00 reference weight setting.
Step 4. (Optional) If you want to enter the Gravity Correction Factor, see the table
above, then enter the Correction Factor number you selected from the table in
the Gravity Correction field
Step 5. Click the “Do C2 Calibration” button
Step 6. Wait a few seconds and the results will appear. If the Calibration was successful
a Cal completed OK appears and gross weight will read your reference value.
However, if no load points are connected to the HI 6500 series the following
message appears. Check the cable and connectors of the load point(s) and re-
calibrate.
Step 7. This message appears if no load points are connected to the HI 6500. Check the
cable and connectors of the load point(s) and re-calibrate. 
Cal failed: A to D converter error
