Installation 11
•
•
•
•
•
•
• Do not install the instrument right next to an AC power source or high voltage DC
equipment
• Route all the low voltage cables away from high voltage cables.
Installation options for the HI 6500 series instrument
The HI 6500 series instrument can be mounted in four different configurations. There are
two panel mount options, one DIN rail mount option, and a wall mount option.

Panel Mount Option 1 and Wall Mounts require additional hardware, which is
available in the Panel Mount Option 1 and Wall Mount kit sold separately (Part#
0551-0653-01-0).
The following sections provide details on how to mount the front panel display on a
panel door or cover and how to install and connect the front panel to the HI 6500 series
instrument for each of these four configurations.

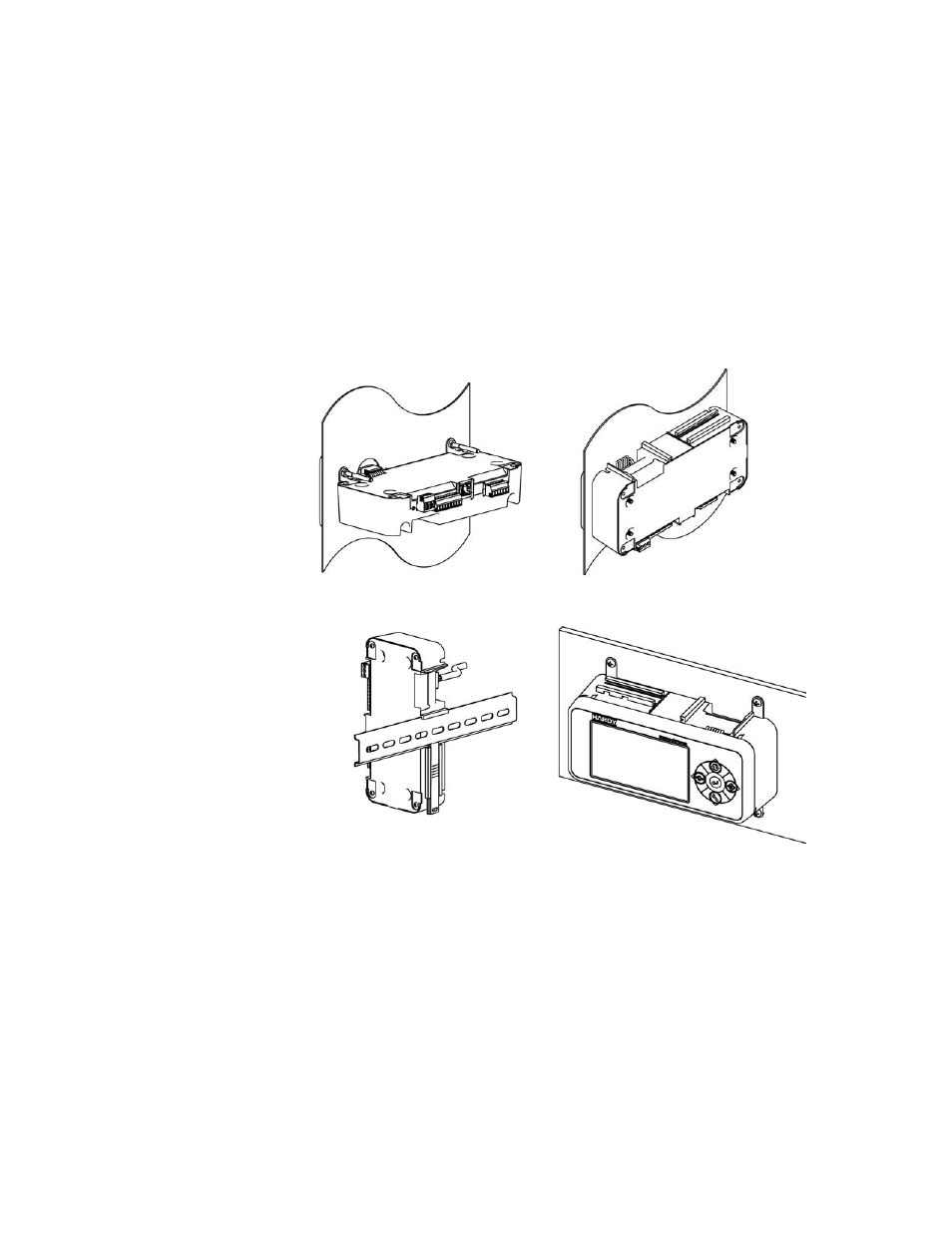

Panel Mount Option 1 with mounting kit Panel Mount Option 2
DIN Rail Mount Wall Mount with mounting kit
