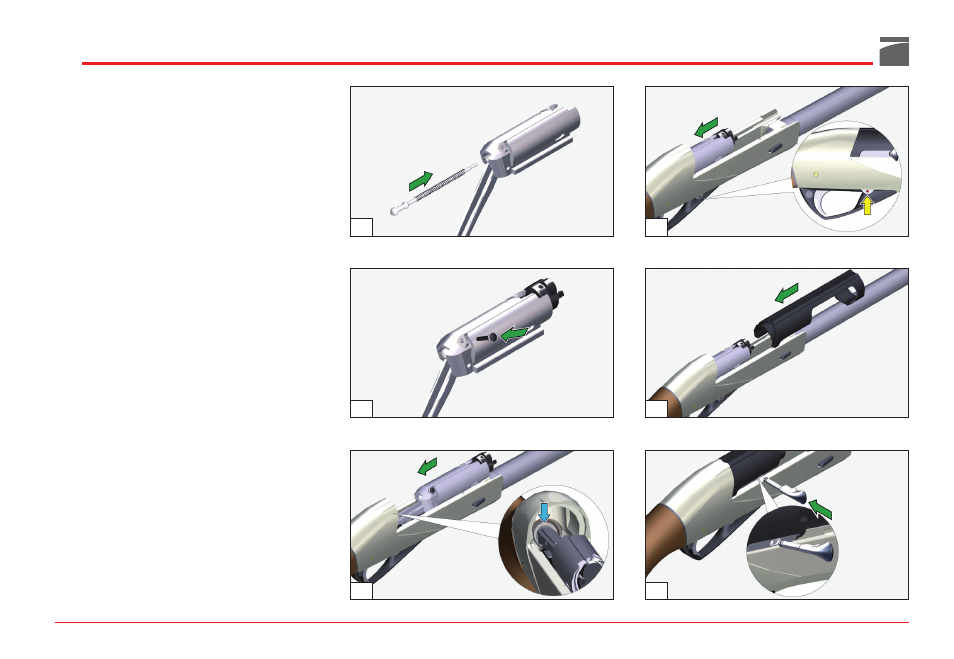

6) Insert the firing pin and the firing pin spring

inside the bolt hole (fig. 50).

NOTE:

always make sure that the firing pin

spring has been mounted.

7) Insert the firing pin retaining pin in its seat,

so as to block the firing pin (fig. 51).

8) Hold the stock receiver assembly almost

horizontally and insert the bolt assembly in
its guide on the receiver (fig. 52).

WARNING:

make sure that the bolt link slides

over the trigger guard assembly, positioning on
the recoil spring guide pin inside the receiver,
once the mounting has been completed (fig. 52).

9) Open the bolt acting on the locking head

frontal part (fig. 53). If the bolt doesn’t
remain in the opened position, push the car-
tridge drop lever in the direction shown by
the arrow and repeat the procedure.

10) Place the cover on the receiver next to the

bolt (fig. 54).

11) While keeping the cover adhering to the re-

ceiver, move it back sliding it over the bolt
until it is fully rested on the receiver back.

12) Push the cocking lever into its seat hole on

the bolt until it fits perfectly (fig. 55).

13) Finish reassembling the shotgun by repeating

all the steps for initial assembly described on
page 39 (figs. 7-8-9-10-11).
