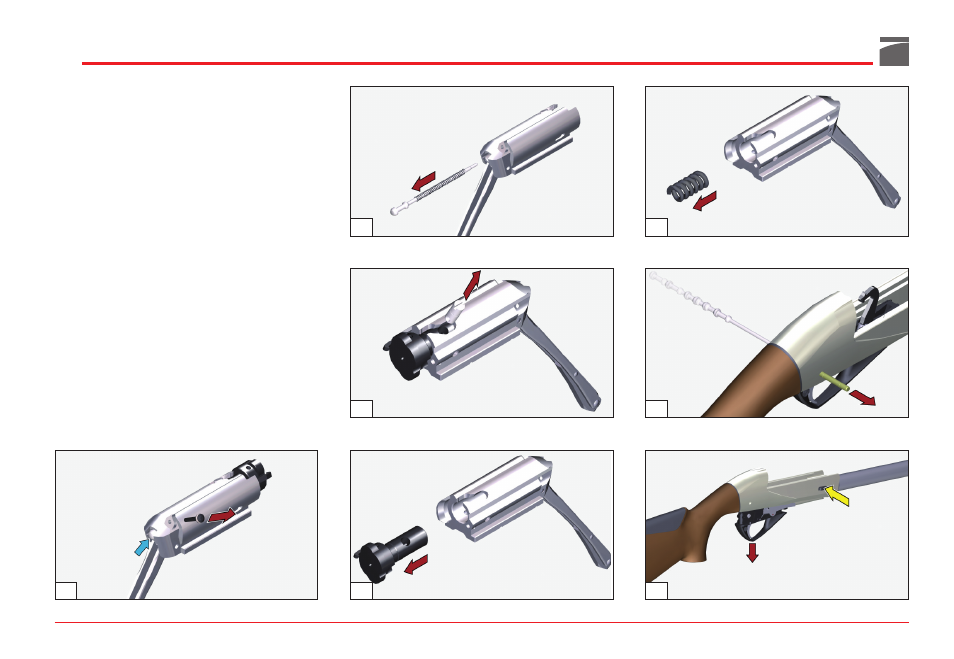

8) Remove the firing pin retaining pin from the
bolt assembly, while holding the firing pin
and firing pin spring in place (fig. 37).
9) Remove the firing pin and firing pin spring
from the bolt (fig. 38).
10) Remove the locking head rotating pin from
its seat (fig. 39).
11) Remove the bolt locking head from the bolt
(fig. 40).
12) Remove the recoil spring from its seat in the
bolt (fig. 41).
13) Extract the trigger guard pin from the stock-
receiver unit, thrusting it from right or left
with the point of the same firing pin or
punch (fig. 42).
14) Press the carrier button and extract the trig-
ger guard assembly towards the front (fig.
43).
The shotgun is now completely stripped. All the
parts that require routine maintenance and clean-
ing are disassembled.
