Cautions:
• Never mount the unit in any of the following locations to avoid damage due to overheating;
1. Near the heater port.
2. Places like the dashboard or rear deck, where it may be exposed to direct sunlight.
• Do not mount the unit near the door, where it could be exposed to rain.
• Do not separate the hide-away unit.

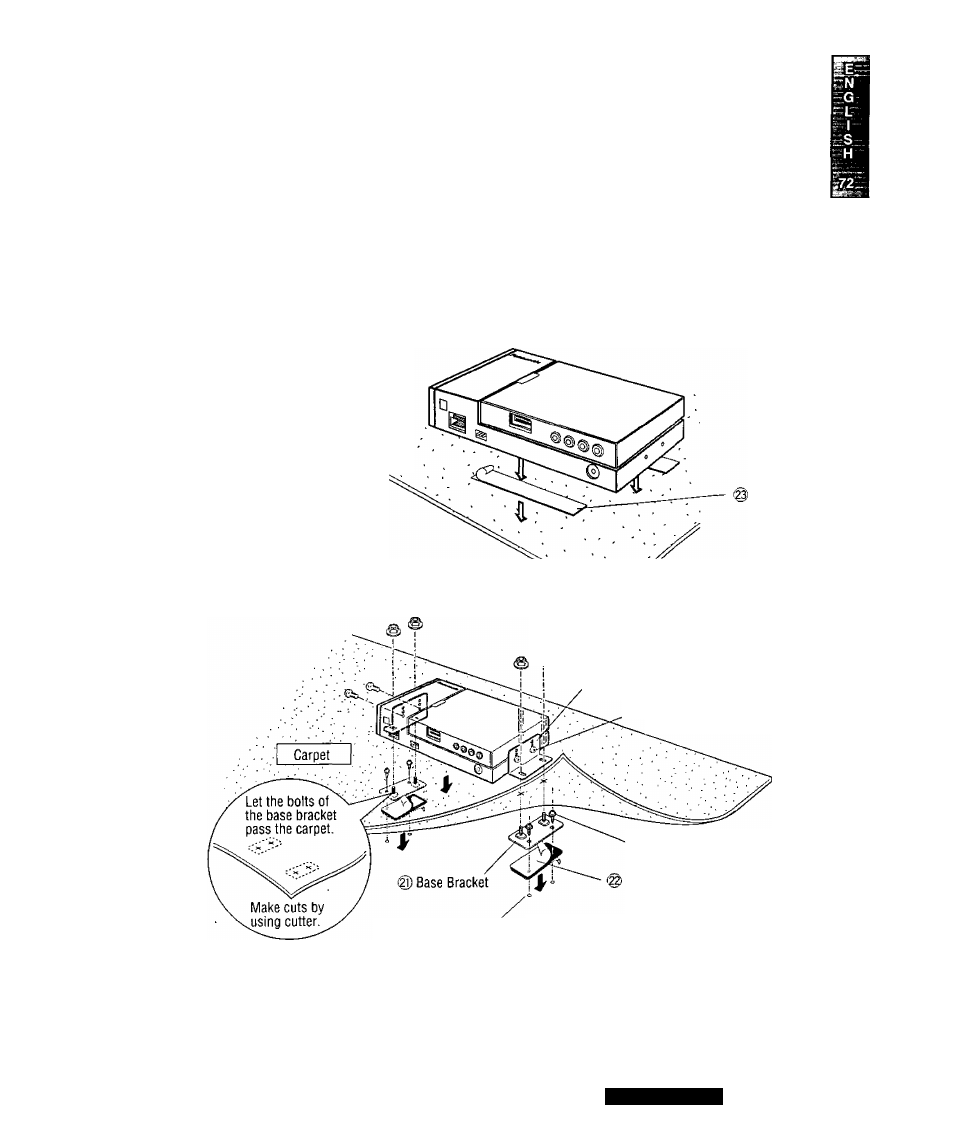

□ Mount the unit on the car carpet by using Velcro Tape
Attach the seal side of the Velcro Tape @)
to the hide-away unit, then mount the unit
on the carpet.
Note: Some carpet materials may not be
suitable for this mounting method. In this
case, please contact your nearest
Panasonic Servicenter for installation. - •
Velcro Tape
□ Unit installation by using the Mounting Brackets @ and the Base Brackets
©—‘©Hex. Nut (M5)
© Mounting Bracket
©Binding-Head Screw
(M5 X 8 mm)
® Tapping Screw {o 6 x 20 mm)
Double-Faced Adhesive Tape
Drill for 4.8 mm diameter holes to the chassis.
* Put the tape and the base bracket together with each hole of the tape and
bracket connected so that the screw goes in at two positions.
Note: Apply an anticorrosive to the holes and tapping screws.
Caution: You run the risk of interfering with the mounting or causing damage by drilling into the gas tank, a wiring
harness, or other component.
