HLO-4001 2 Installation Guide © 2014 KMC Controls, Inc. 705-019-04C
KMC Controls, Inc.
19476 Industrial Drive
New Paris, IN 46553
574.831.5250
www.kmccontrols.com
[email protected]
Important Notices
The KMC logo and KMC Controls are registered
trademarks of KMC Controls, Inc.
All rights reserved. No part of this publication may
be reproduced, transmitted, transcribed, stored in a
retrieval system, or translated into any language in
any form by any means without the written permis-
sion of KMC Controls, Inc.
The material in this document is for information
purposes only. The contents and the product it
describes are subject to change without notice.
KMC Controls, Inc. makes no representations or
warranties with respect to this document. In no event
shall KMC Controls, Inc. be liable for any damages,
direct or incidental, arising out of or related to the
use of this document.
More Information
For additional informa-
tion about installing MEP-
4xxx actuators, see the
MEP-4xxx Applications
Guide on the KMC web
site ( www.kmccontrols.
com ) as well as the rel-
evant installation guide.

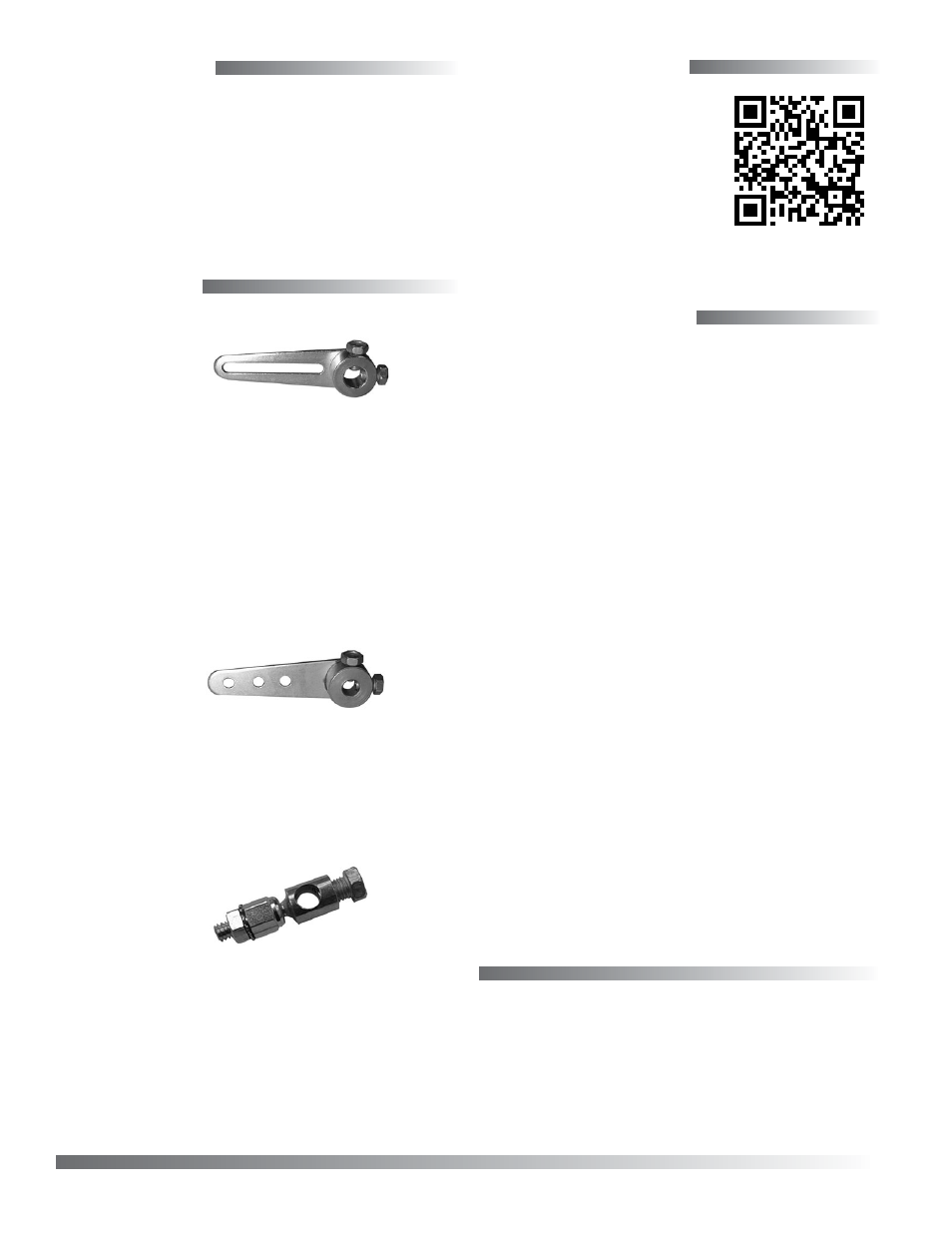

Accessories
Auxiliary Crank Arms
VTD-1403* Short slotted, for 3/8" shafts
VTD-1404* Short slotted, for 1/2" shafts
VTD-1405* Long slotted, for 1/2" shafts
VTD-1406* Long slotted, for 3/8" shafts
*NOTE: In the VTD-1403/1404 short crank arms, a
ball joint can be adjusted from 3/4 inches
(minimum) from the center of the shaft to
2-7/8 inches (maximum) from the center.
In VTD-1405/1406 long crank arms, the
maximum is 4-5/8 inches.
VTD-1414 Three-hole, for 3/8" shafts
VTD-1415 Three-hole, for 1/2" shafts
VTD-0804 Ball joint for side-mounted 5/16"
diameter rods (1/4-20 male
mounting stud with locknut)
Replacement Ball Joints
Maintenance
Under normal conditions, no routine maintenance is
required. In harsh environments, however, periodic
lubrication of the ball joints may be necessary.
Each component is designed for dependable, long-
term reliability and performance. Careful installation
will also help ensure long-term reliability and perfor-
mance.
