MEP-4042/4842 2 Installation Guide © 2013 KMC Controls, Inc. 036-019-02xB
KMC Controls, Inc.
19476 Industrial Drive
New Paris, IN 46553
574.831.5250
www.kmccontrols.com; [email protected]
Maintenance
No routine maintenance is required. The motors
are permanently lubricated and all internal gear-
train components are oil-impregnated. Careful
installation will also ensure long term reliability and
performance.

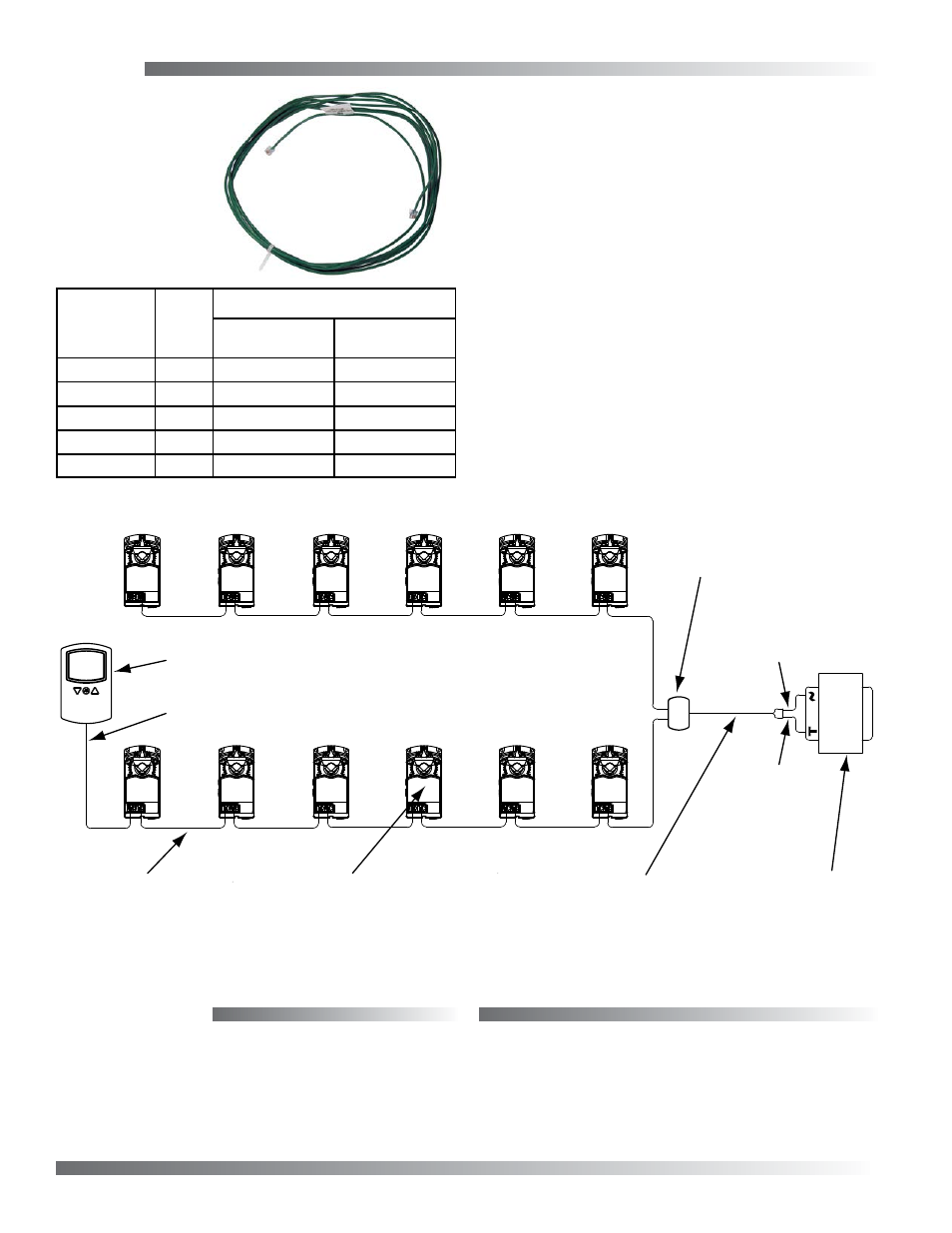

Wiring
Use HSO-22xx
cables to connect
the actuators,
using the modular
connectors, as
shown in the
chart and sample
application below.
HSO-5010 3-Way
“Y” Modular Connector
HSO-2121
Transformer Cable
CTE-5201-16 Analog Electronic Thermostat
Up to 6 MEP-4x42s
on each side
of the transformer
(with HSO-2212s)
HSO-2212
actuator cable,
12-foot length
between actuators
Wires: Orange
& Orange Stripe
T
Wires: Green
& Green Stripe
XEE-6xxx-xxx
Transformer
24 VAC (+20/–15),
4 VA Per Actuator
HSO-2250 Thermostat Cable, 50-foot (typical)
Cable P/N
Cable
Length
Max. # of Daisy-Chained MEP-4x42s
WithOUT
HSO-5010
WITH
HSO-5010
HSO-2203 3 feet 6 12
HSO-2206 6 feet 6 12
HSO-2212 12 feet 6 12
HSO-2220 20 feet 4 8
HSO-2250 50 feet 2 4
NOTE: The transformer must have an internal
circuit breaker such as the XEE-6311-050
or equivalent 2.25 A external fuse in the
secondary circuit!
NOTE: See the table on the left for the maximum
number of actuators that may be daisy
chained for a given cable length. If an
HSO-5010 “Y” connector is used (as shown
below), the total number of actuators is
doubled (with half on each side of the
transformer). The example below shows
12 actuators with HSO-2212 cables and an
HSO-5010.
NOTE: For MEP-4042/4842 specifications,
accessories, and additional important
information, see the data sheet. See also the
sample applications in the data sheets for
the BAC-5841/5842 and BAC-5841-16/5842-
16 of controllers.
