STE-1454/1455

1

Installation Guide

Installation Guide

Temperature Sensor, Strap-On

STE-1454/1455

Mounting

These models are designed for monitoring fluid tem-

peratures in situations where an immersion sensor

cannot be used. Mount the probe in direct physical

contact with the pipe and under pipe insulation.

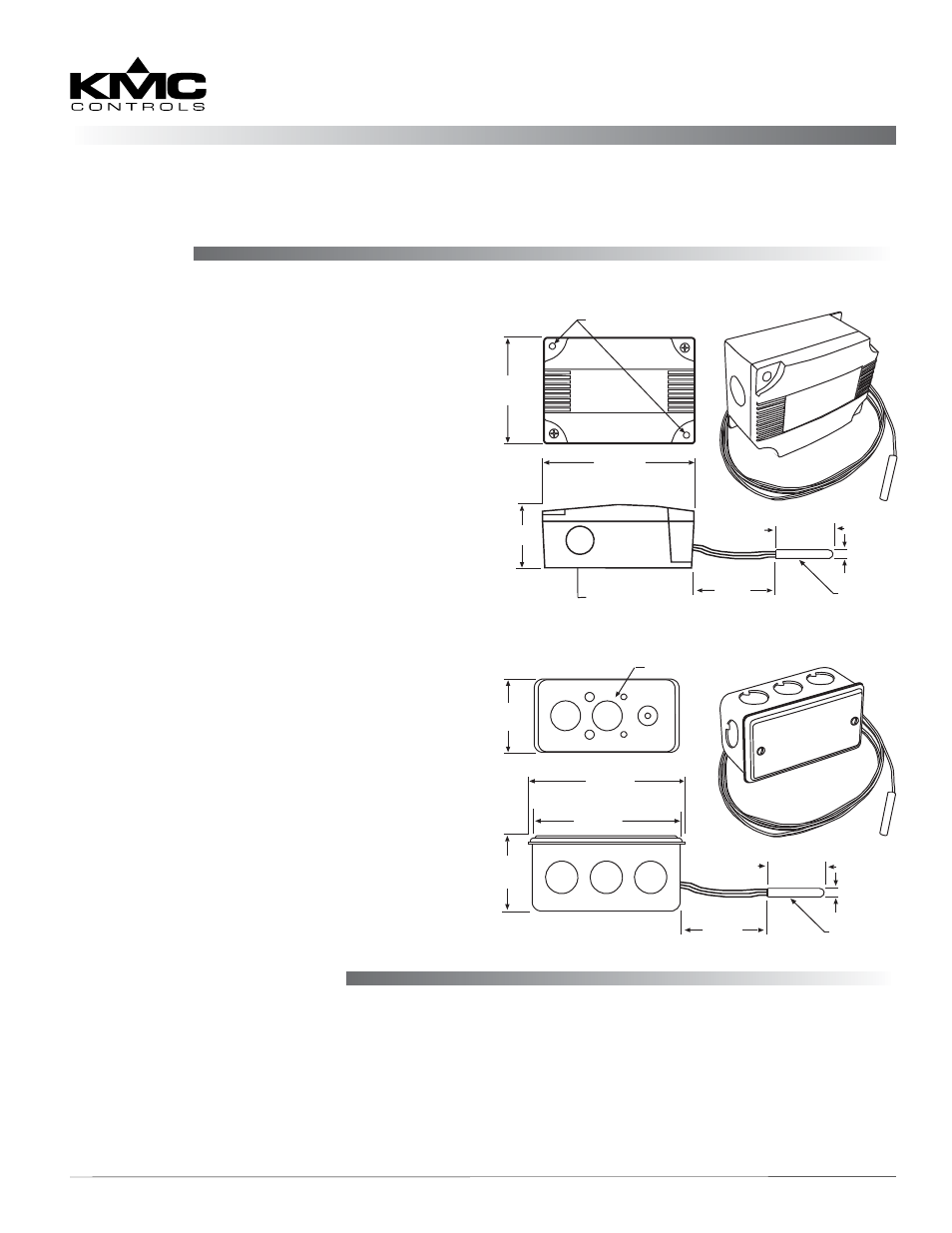

1. For the STE-1454 (only), mount the included

case (see the diagram) in a suitable location close

to where the probe will be attached to the pipe.

Attach conduit to it as needed.

NOTE: The STE-1455 does not include an

enclosure.

2. From the probe area, remove any pipe insulation

and clean the exterior of the pipe to ensure good

contact and heat transfer.

NOTE: For best results, apply thermal conductive

compound to the pipe underneath the

sensor.

3. Place the sensor probe in direct contact with the

pipe and strap the probe to the pipe using metal

pipe straps or cable ties.

4. Any extra lead length can be wound around the

pipe for extra security.

5. Wrap, or replace, insulation around the sensor to

reduce the effect of ambient air temperature.

Mounting 1
Connections and Wiring 1
Configuration 2
Maintenance 2
Specifications 2
More Information 2
Important Notices 2

4.56”

115.8 mm

2.110”

53.6 mm

2X Ø 0.850”

4.24”

107.7 mm

2.04 ”

51.8 mm

4.0”

101.6 mm

Metal Enclosure

8X Ø 0.875”

2.10”

53.3 mm

5.0 feet

1.524 m

3.320“

84.3 mm

Mounting Holes (X2) Ø 0.200”

5.0 feet

1.524 m

Plastic Enclosure

0.25“

6.35 mm

304 Series

S/S Probe

2”

50 mm

0.25“

6.35 mm

304 Series

S/S Probe

2”

50 mm

Connections and Wiring

1. For the STE-1454, feed the wire leads through

the hole in the enclosure and secure with the

included grommet.

2. Make connections to the two wire leads with

either butt-splices or solder. Using wire nuts is

not recommended.

NOTE: The two-wire sensor is not polarity

sensitive.
