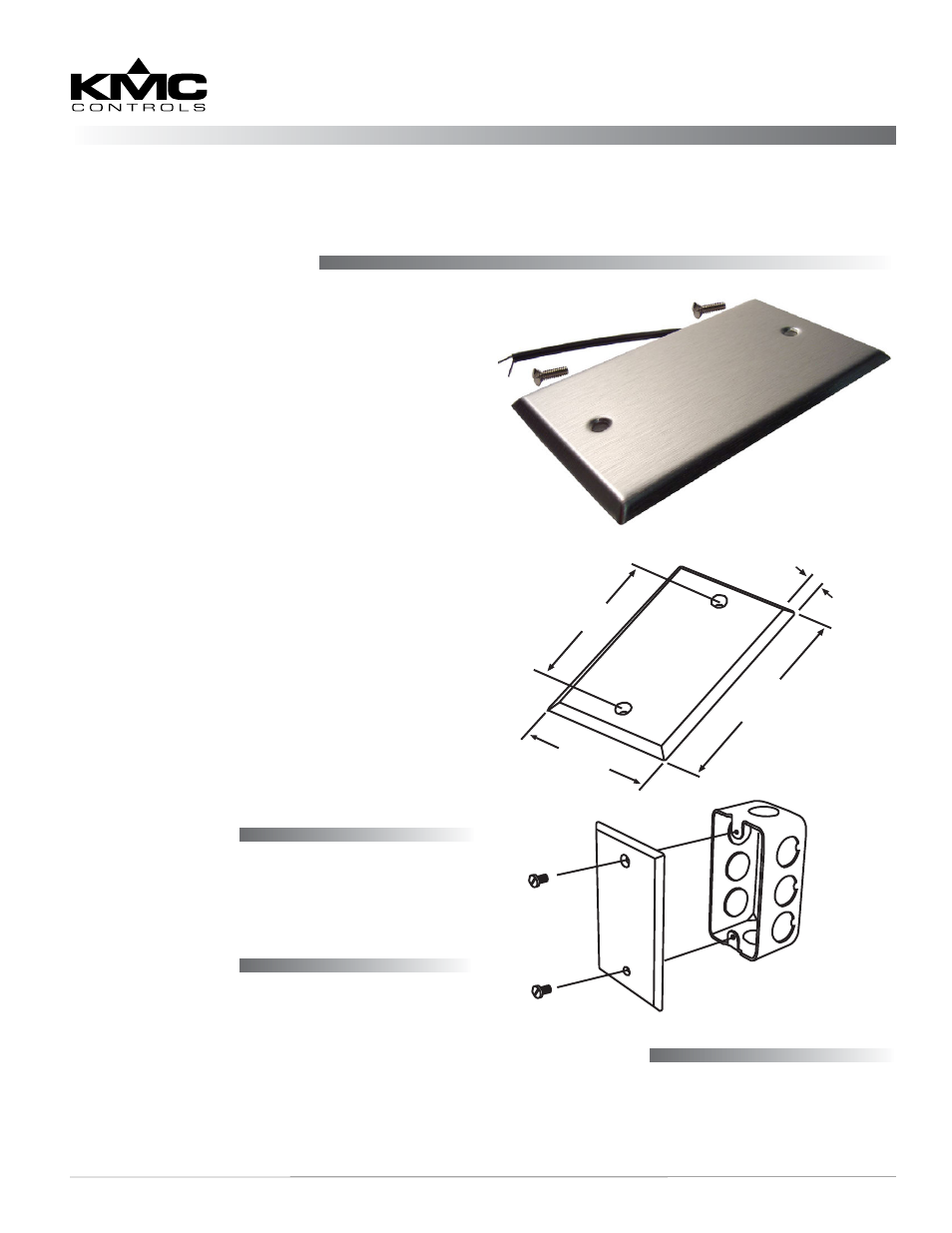

KMC Controls STE-1430 User Manual
KMC Controls Sensors
STE-1430
1
Installation Guide
Installation Guide
Mounting and Wiring
The STE-1430 is a blank, stainless-steel wall plate
that incorporates a precision sensor used to monitor
room temperatures where additional security is
required (e.g., against vandalism).
It is designed to be mounted directly to a single-gang
electrical box. Insulating foam is adhered to the back
of the wall plate to provide a thermal barrier from
internal wall temperatures. The STE-1430 should
be installed where it can sense the average room
temperature and be unaffected by direct sunlight
and drafts.
1. Feed the cable wires through the conduit or hole
opening.
2. Make connections to the two sensor wire leads
with either butt-splices or solder. (Using wire
nuts is
not recommended.) The two-wire sensor
is not polarity sensitive.
3. Plug the conduit with plumber’s putty, painter’s
putty, caulk, or other sealant to prevent air
infiltration.
4. Attach the sensor panel to the electrical box using
the two supplied #6 screws.
Contents
Configuration 1
Specifications 1
Maintenance 1
More Information 2
Important Notices 2
Room Temperature Sensor (Flat Plate)
STE-1430
2.75"
69.85 mm
4.5"
114.3 mm
0.1875"
4.75 mm
3.375"
85.73 mm
Specifications
Sensor
Type III thermistor, 10K ohm
@ 77° F (25° C)
Temperature Limits –4 to 221° F (–20 to 105° C)
Wiring
22 AWG wire leads
Dimensions
2-3/4 x 4-1/2 inches (70 x 114
mm)
Finish
Brushed stainless steel
Configuration
For controller configuration, see
on the KMC web site.
Maintenance
No routine maintenance is required. Each compo-
nent is designed for dependable, long-term reliability
and performance. Careful installation will also
ensure long term reliability and performance.
