SAE-1011/1012/1062 Carbon Dioxide (CO

2

) Detectors

2

Installation Guide

SAE-1062 Duct Mount

1. Cut a 1-1/4" hole in the duct for the air sampling

tube.

2. Insert the probe into the hole and mark the

enclosure mounting holes. (See Illustration 4.)

3. Remove the unit and drill the four mounting

holes. (Clean all drilled holes of debris before

mounting the device.)

4. Mount the enclosure to the duct with four sheet

metal screws such that the duct air flow is paral-

lel with the vent holes in the probe (i.e., air flows

directly into the probe holes). To prevent air

leaks, ensure the gasket is compressed around

the probe between the device enclosure and the

air duct.

5. Open the cover by removing the two screws and

releasing the latch. (See Illustration 3.)

6. Attach conduit to the conduit opening.
7. Feed wires through the conduit opening, and

connect to the terminals according to the wiring

instructions.

8. After wiring, plug the conduit with plumber’s

putty, painter’s putty, caulk, or other sealant to

prevent air infiltration from affecting accuracy of

the duct readings.

9. Check that the rubber gasket is placed correctly

between the enclosure and cover.

10. After wiring, configuring, and testing the unit,

close and latch the cover. Secure it with the two

screws.

Latch

Conduit Opening

Security Screws

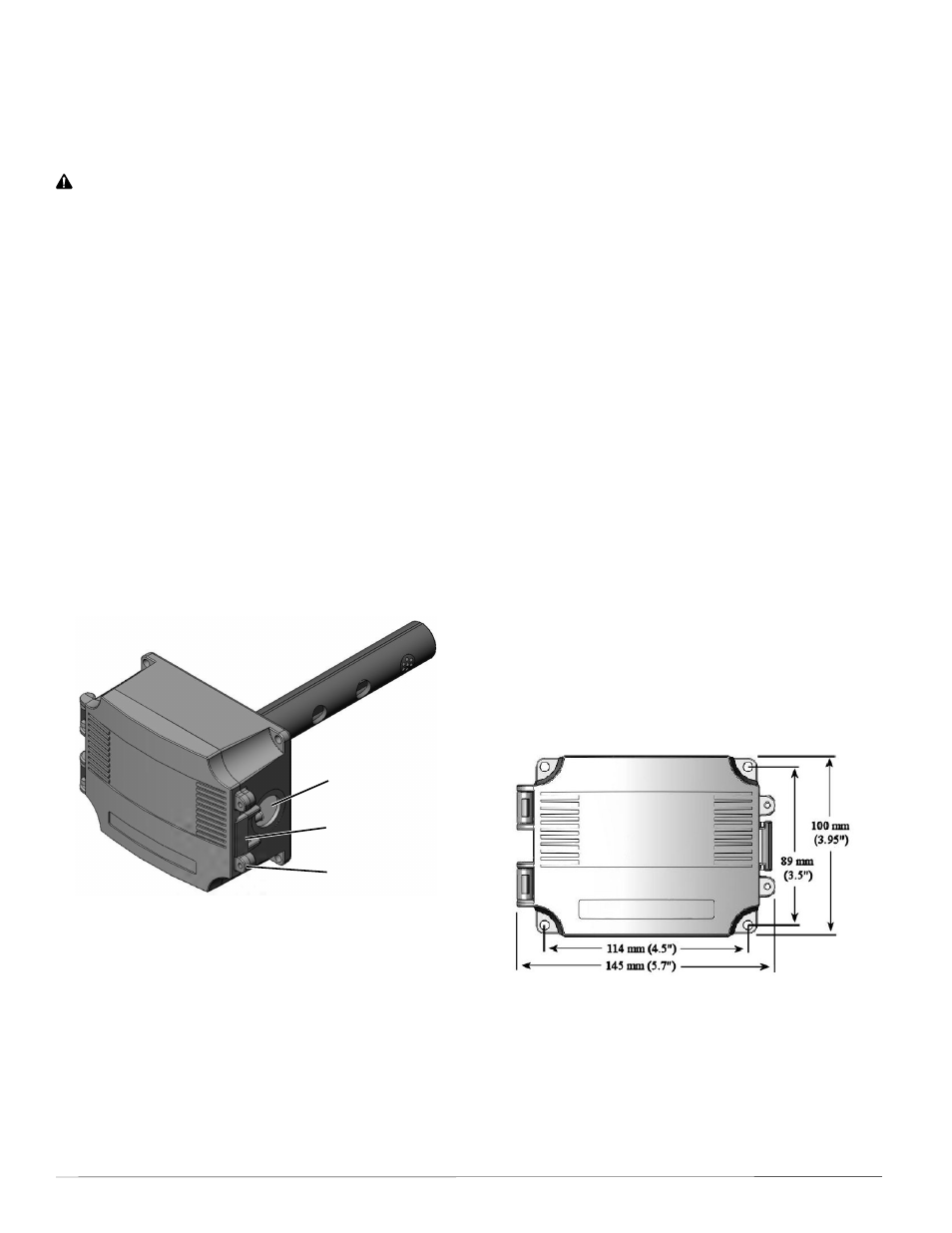

Illustration 3—SAE-1062 Enclosure

Illustration 4—SAE-1062 Mounting Dimensions

3. To access the mounting holes, CAREFULLY

remove the circuit board from the base by gently

pressing the enclosure base to unsnap the latch

near the bottom edge and lifting the circuit board

from the backplate.

CAUTION

Follow proper electrostatic discharge procedures
when handling the circuit board and be careful to
not touch the sensors.

4. Set the circuit board aside until the base is

mounted on the wall.

5. Attach the universal backplate/base directly to

a standard electrical box using two screws. (See

Illustration 2.)

6. After the base is secured, pull the wires through

the wiring hole in the center of the circuit board

and then reinstall the board in the enclosure base.

Ensure the circuit board is snapped into the base

securely and correctly.

7. After wiring, configuring, and testing the unit,

reinstall the cover and screw.

The duct type sensor installs on the outside of a

return air duct with the sampling tube inserted into

the duct.
Choose a mounting location in a straight section of

a return air duct. Mount at least 5 feet (or 7.5 duct

diameters) from corners or other items that may

cause disturbances in the air flow. Avoid areas prone

to vibration or rapid temperature changes.
