advertise {dcbx-appln-tlv | dcbx-tlv | dot3-tlv | interface-port-desc |
management-tlv | med }
Include the keyword for each TLV you want to advertise.
• For management TLVs: system-capabilities, system-description.
• For 802.1 TLVs: port-protocol-vlan-id, port-vlan-id.
• For 802.3 TLVs: max-frame-size.
• For TIA-1057 TLVs:
– guest-voice
– guest-voice-signaling
– location-identification
– power-via-mdi
– softphone-voice
– streaming-video
– video-conferencing
– video-signaling
– voice
– voice-signaling

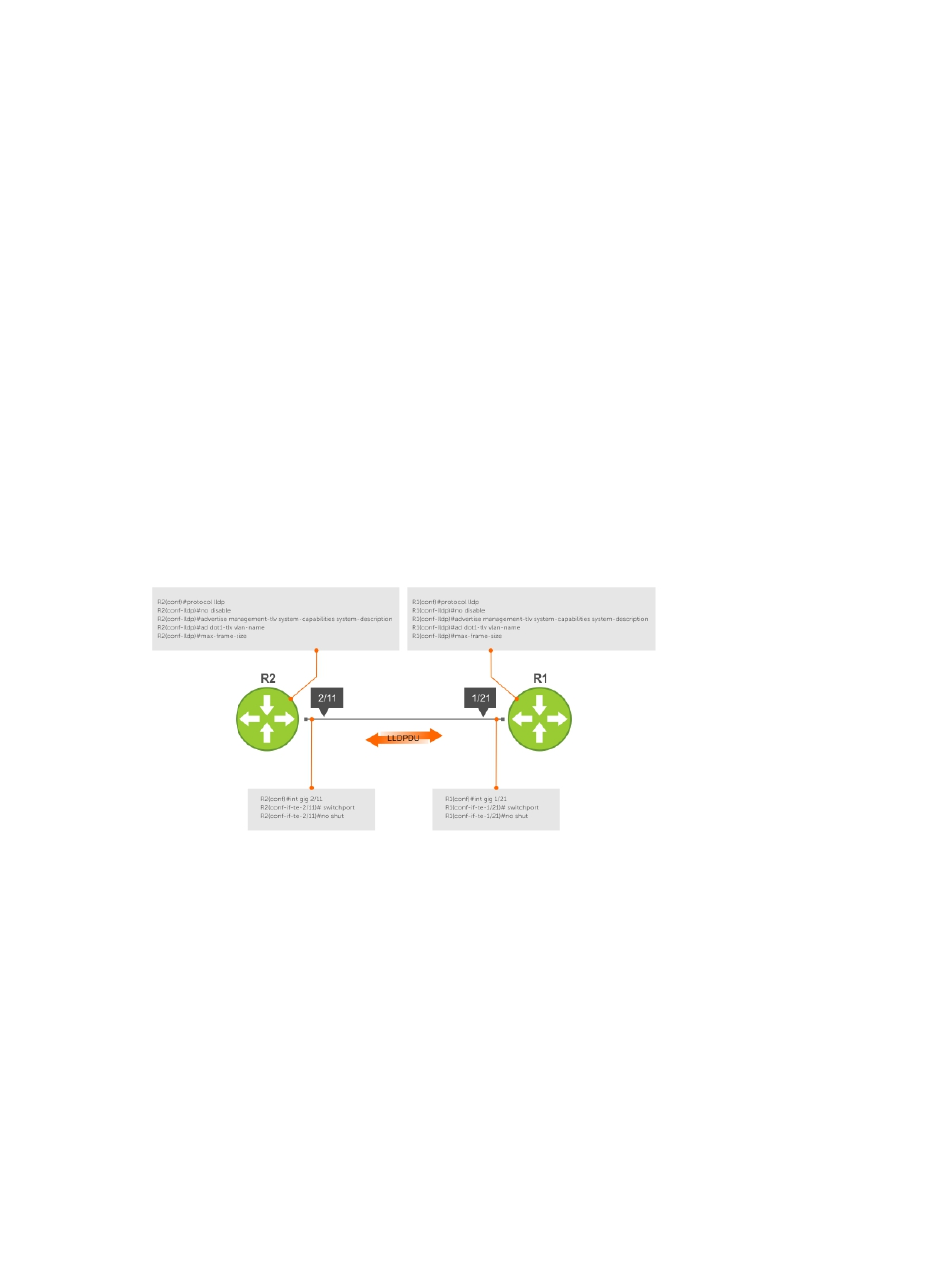

In the following example, LLDP is enabled globally. R1 and R2 are transmitting periodic LLDPDUs that
contain management, 802.1, and 802.3 TLVs.
Figure 29. Configuring LLDP
Viewing the LLDP Configuration
To view the LLDP configuration, use the following command.
• Display the LLDP configuration.
CONFIGURATION or INTERFACE mode
show config
220 PMUX Mode of the IO Aggregator
