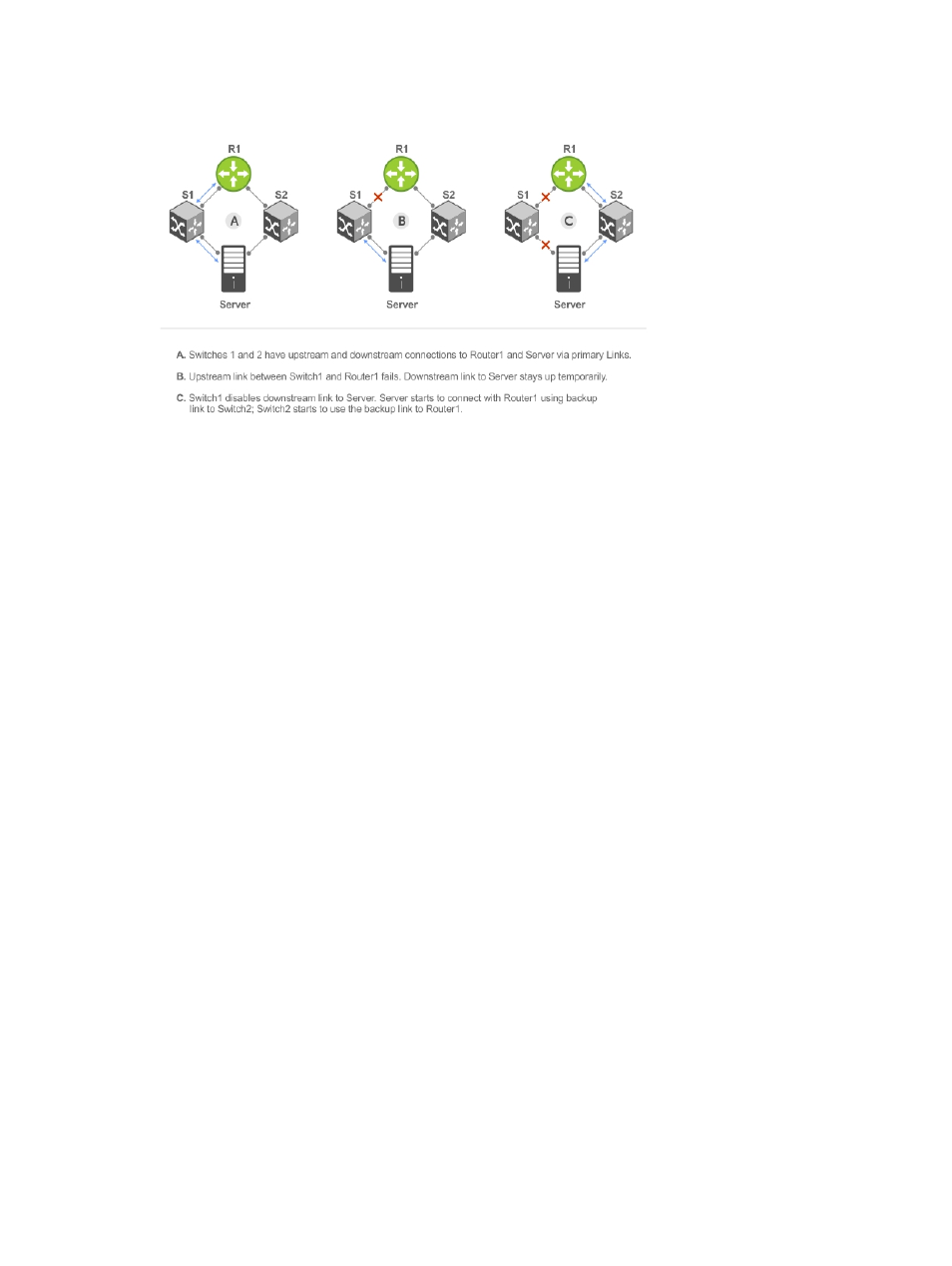

Figure 27. Uplink Failure Detection
How Uplink Failure Detection Works
UFD creates an association between upstream and downstream interfaces. The association of uplink and
downlink interfaces is called an uplink-state group.
An interface in an uplink-state group can be a physical interface or a port-channel (LAG) aggregation of
physical interfaces.
An enabled uplink-state group tracks the state of all assigned upstream interfaces. Failure on an upstream
interface results in the automatic disabling of downstream interfaces in the uplink-state group. As a
result, downstream devices can execute the protection or recovery procedures they have in place to
establish alternate connectivity paths, as shown in the following illustration.
