Bio-Rad Bio-Plex Manager™ MP Software Upgrade User Manual
Page 21
Formatting Plates
User Guide
| 19
2.
Click the Set Replicate Size dropdown list and pick the number of replicates in
the group.
Note:
The maximum size you can specify with the Set Replicate Size
dropdown list is eight.
Tip:
You can create replicate groups that are larger than eight by clicking
Turn Autofill Off, setting the replicate size to 1, and selecting the number of
wells you want in your replicate group.
3.
Click the well type.
4.
Click and drag your cursor over the wells on your plate.

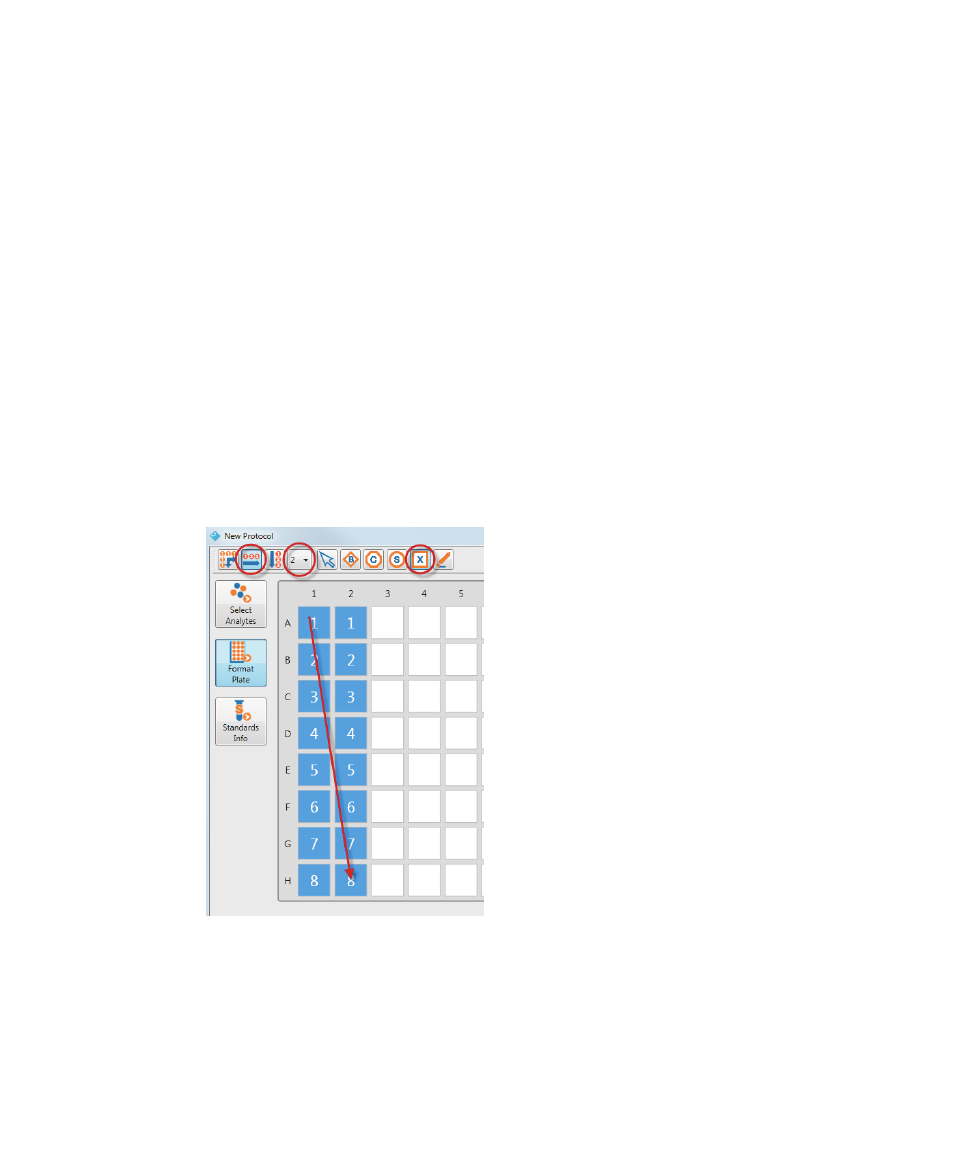

In the following example, Autofill Across is selected and the replicate size is set to 2.
Eight groups of replicates of Unknown well type were created. Each row represents
a replicate group. The arrow shows the path of the cursor as it is dragged across the
plate template.
