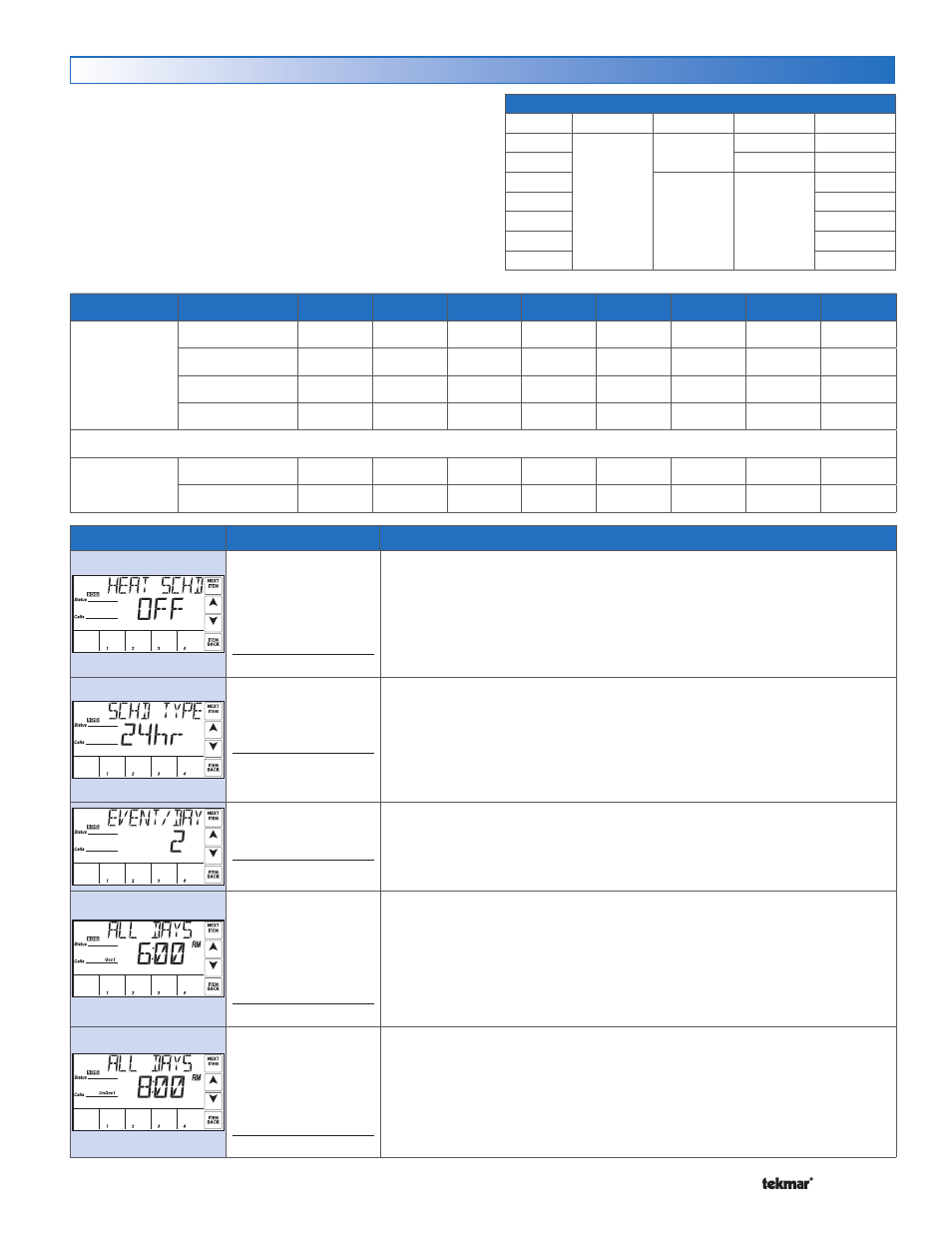

Schedule Menu (1 of 1)

Events / Day Event

24Hr

Sat

Sun

Mon

Tue

Wed

Thu

Fri

Occupied 1

6:00 AM

UnOccupied 1

8:00 AM

Occupied 2

6:00 PM

UnOccupied 2

10:00 PM

Occupied

6:00 AM

Unoccupied

10:00 PM

Schedule Type

Day

24 Hour

5-2

5-11

7 day

•

The 284 can follow an internal schedule or an available
schedule on a

tekmarNet

network. Four heating schedules

can be present on one network. The number of available
schedule times depends on selections made for the Heat
Schedule, Schedule Type & Events / Day settings.

Default Times

Item Field

Range

Description

OFF, CTRL, MST1,

MST2, MST3, MST4,

MBR1, MBR2, MBR3,

MBR4

Default = OFF

Access: USER

HEAT SCHEDULE

OFF = No schedule.
CTRL = Schedule only used by this control.
MST1 to MST4 = Schedule is shared with other tN4 devices.
MBR1 to MBR4 = Schedule is set on another tN4 device.
This item is only available when the Setback / Off switch is set to Setback.

24hr, 5-2, 5-11, 7DAY

Default = 24hr

Access: USER

SCHEDULE TYPE

24hr = One schedule for all days of the week.
5-2 = One schedule for weekdays & one for weekends.
5-11 = One schedule for weekdays, one for Saturday & one for Sunday.
7DAY = A schedule for each day of the week.
This item is only available when the Setback / Off switch is set to Setback & the
Heat Schedule is set to CTRL or MST1 to MST4.

2 or 4

Default = 2

Access: USER

EVENTS / DAY

2 = 2 Events per day (Occ, Unocc)
4 = 4 events per day (Occ 1, Unocc 1, Occ 2, Unocc 2)
This item is only available when the Setback / Off switch is set to Setback & the
Heat Schedule is set to CTRL or MST1 to MST4.

12:00AM to 11:50PM,

SKIP

00:00 to 23:50, SKIP

Default = 6:00AM

Access: USER

OCCUPIED START TIME (ALL DAYS, MON-FRI, SAT-SUN)

Select the time for the Occupied period to start. Additional occupied event times
are available depending on the schedule type & mode settings.
This item is only available when the Setback / Off switch is set to Setback, Heat
Schedule is set to CTRL or MST1 to MST4.

12:00AM to 11:50PM,

SKIP

00:00 to 23:50, SKIP

Default = 8:00AM

Access: USER

UNOCCUPIED START TIME (ALL DAYS, MON-FRI, SAT-SUN)

Select the time for the Unoccupied period to start. Additional unoccupied event
times are available depending on the schedule type & mode settings.
This item is only available when the Setback / Off switch is set to Setback, Heat
Schedule is set to CTRL or MST1 to MST4.
