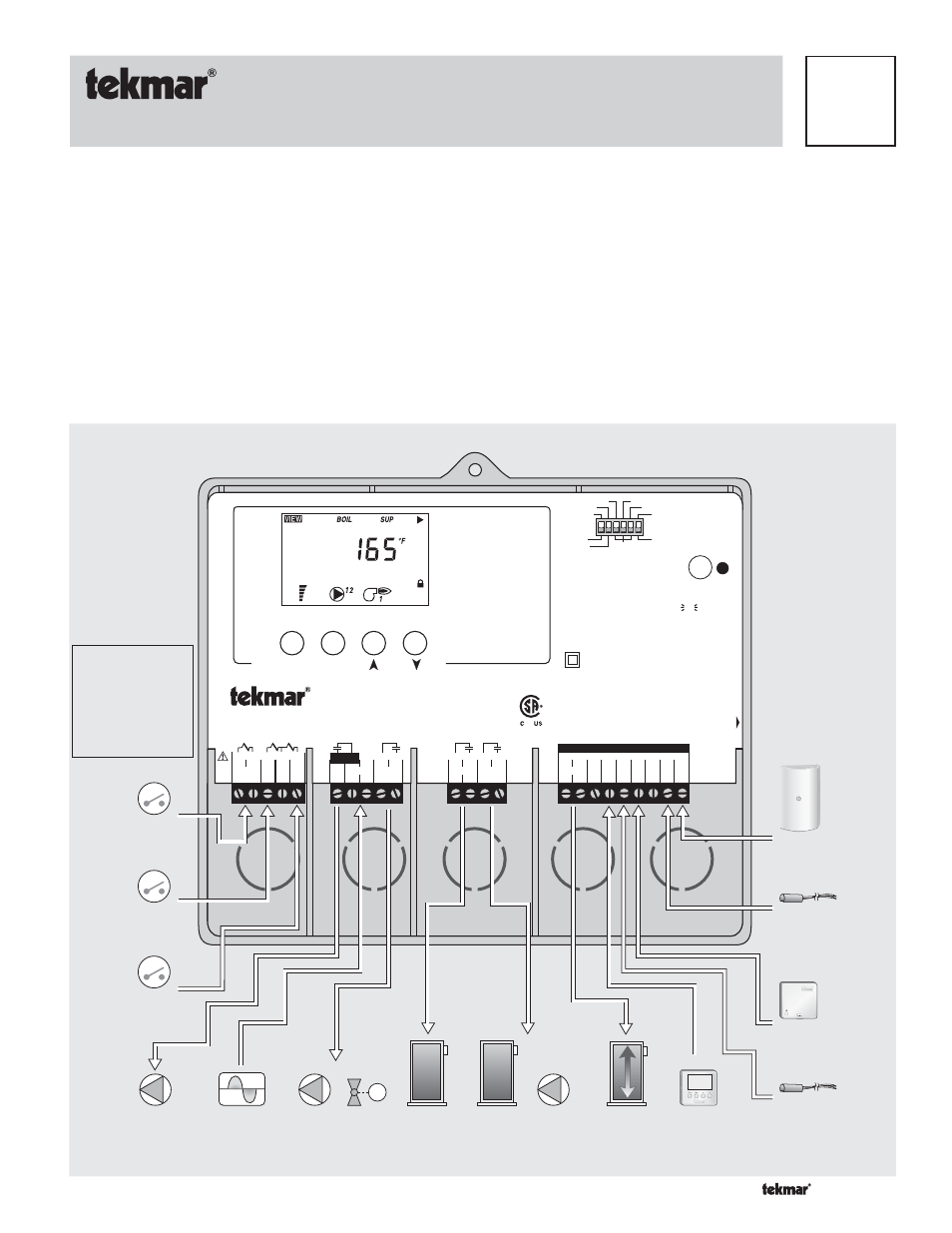

The tekmar Boiler Control 263 can control the supply water temperature from a single modulating boiler or up to 2 on / off stages
based on outdoor temperature, domestic hot water requirements, or setpoint requirements. A large easy to read display provides
current system temperatures and operating status. The control has an internal setback timer, which can have 2 events per day on a
24 hour, 5-1-1 day or 7 day schedule.
Additional functions include:
• Outdoor Reset
• Installer and Advanced access levels
• Primary pump output
• Pump
exercising
• Pump purging
• Boiler demand for space heating loads
• DHW demand for domestic hot water loads
• Setpoint demand for setpoint loads
• Optional indoor sensor for room air temperature control
• Test sequence to ensure proper component operation
• Internal setback timer for energy savings
• Setback input for energy savings
• CSA C US certified
